Nissan Murano: Removal and Installation / Plug

Nissan Murano (Z52) 2015-2024 Service Manual / Transmission & Driveline / Transaxle & Transmission :: Cvt: Re0f10j / Removal and Installation / Plug

Description

Replace the O-ring if oil leaks from the plug.

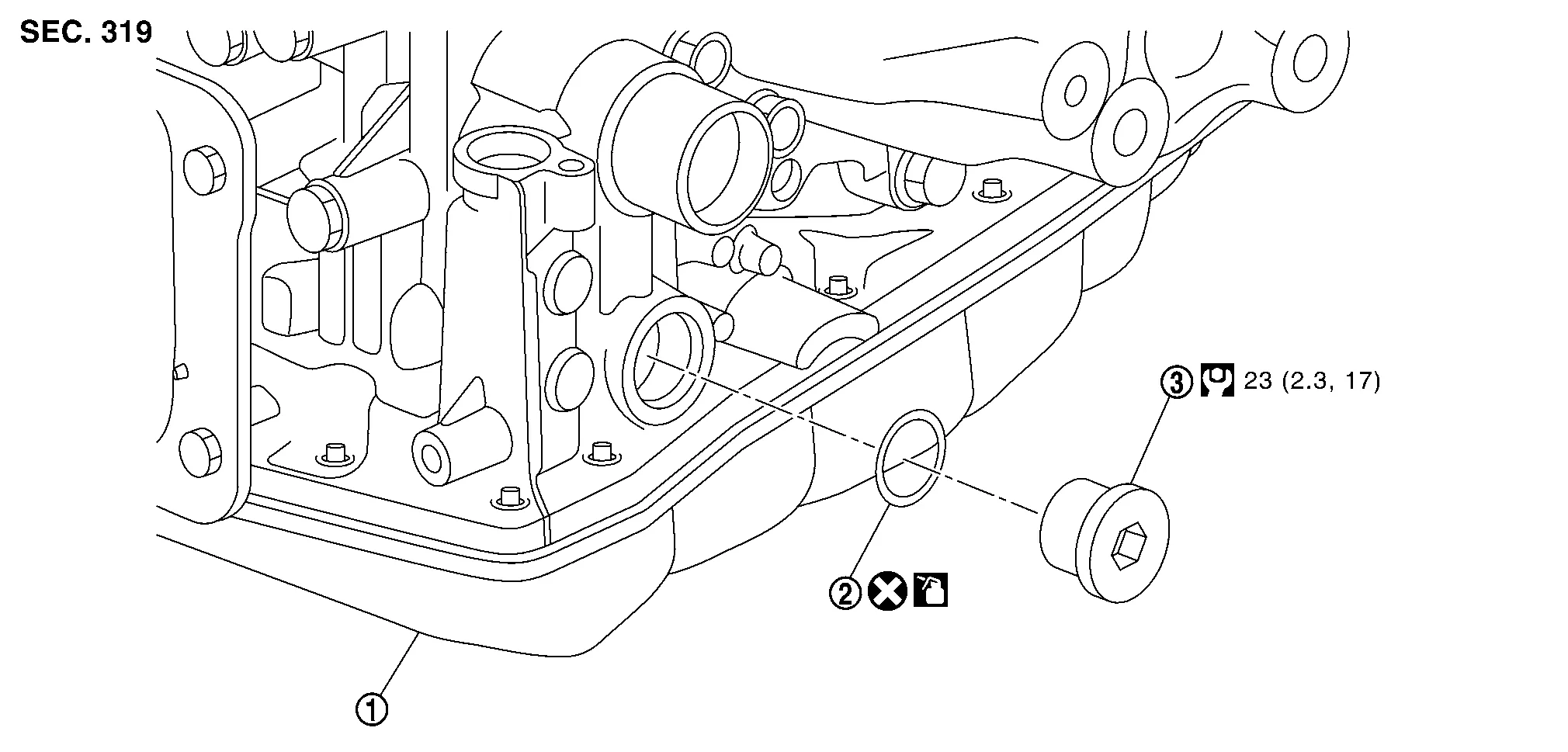

Exploded View

1. Transaxle assembly 2. O-ring 3. Plug
: Apply CVT fluid
Removal and Installation

NOTE:

Replace the O-rings if oil leaks from the plugs.

REMOVAL

Remove the plugs.

Remove the O-rings from plugs.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

  • Do not reuse O-ring.

  • Apply Genuine NISSAN CVT Fluid NS-3 or equivalent to O-ring.

Inspection and Adjustment

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to Inspection.

ADJUSTMENT AFTER INSTALLATION

Adjust CVT fluid level. Refer to Adjustment.
