Nissan Murano: Heater and Air Conditioner (automatic) / Operating tips

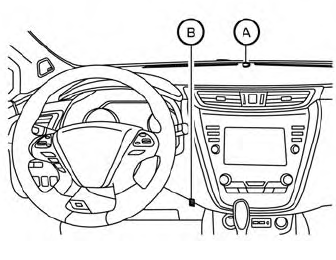

Sensors,
and
on the instrument
panel, help the system maintain a constant
temperature. Do not put anything on or
around these sensors.
- When the climate system is in automatic
operation and the engine coolant
temperature and outside air temperature
are low, the air flow outlet may default
to defroster mode for a maximum
of 2 minutes and 30 seconds. This is not
a malfunction. After the engine coolant
temperaturewarms up, the air flow outlet
will return to foot mode and operation
will continue normally.
- When the outside and interior cabin
temperatures are moderate to high, the
intake setting may default to turn off air
recirculation to allow fresh air into the
passenger compartment. You may notice
air flow from the foot mode, bi-level
mode, or side demist vent outlets for a
maximum of 15 seconds. This may occur
when the previous climate setting
was turned off. This is not a malfunction.
After the initial warm air is expelled, the
intake will return to automatic control,
air flow outlet will return to previous settings,
and operation may continue normally.
To exit, press any climate control
button.
- Keep the moonroof (if so equipped)
closed while the air conditioner is in operation.
- If you feel that the air flow mode you
have selected and the outlets the air is
coming out do not match, select
the
mode.
- When you change the air flow mode,
youmay feel air flow fromthe feet vents
for just a moment. This is not a malfunction.
Fan speed control
Press the fan speed control
buttons
to manually control the fan speed.
Press the AUTO button to return to automatic
control of the fan speed...
The air conditioner system in your NISSAN
vehicle is charged with a refrigerant designed
with the environment in mind.
This refrigerant does not harm the
earth’s ozone layer...
Other information:
A NISSAN dealer can change the engine
coolant. The service procedure can be
found in the NISSAN Service Manual.
Improper servicing can result in reduced
heater performance and engine overheating.
WARNING
To avoid the danger of being scalded,
never change the coolant when the
engine is hot...
DTC Description
DTC DETECTION LOGIC
A voltage signal transmitted from the engine oil pressure sensor is lower than 0.26 V.
A voltage signal transmitted from the engine oil pressure sensor is higher than 4.9 V.
DTC
CONSULT screen terms
(Trouble diagnosis content)
DTC detection condition
P0520
EOP SENSOR/SWITCH
(Engine oil pressure sensor/switch circuit)
1
Diagnosis condition
Start engine and let it idle
Signal (terminal)
Voltage signal transmitted from engine oil pressure sensor to ECM
Threshold
A voltage signal transmitted from the engine oil pressure sensor is lower than 0...
Categories

Your vehicle has two types of security systems:
Vehicle security system
NISSAN Vehicle Immobilizer System
The vehicle security system provides visual
and audible alarm signals if someone
opens the doors, liftgate or the hood when
the system is armed. It is not, however, a
motion detection type system that activates
when a vehicle is moved or when a
vibration occurs.
read more
