Nissan Murano: Power Supply and Ground Circuit / Moonroof Motor Assembly
-
BCM supplies the moonroof motor assembly with power.
-
CPU is integrated in moonroof motor assembly.
-
Tilts up/down & slides open/close by moonroof switch operation.
-
In order to close the moonroof during high speed driving, the Combination meter will send a speed signal to the moonroof CPU to adjust the torque of the motor during the tilt-down operation.
CHECK MOONROOF MOTOR FUNCTION
Does the tilt up/down & slide open/close functions operate normally with moonroof switch?
Is the inspection result normal?
YES>>Moonroof motor assembly is OK.
NO>>Refer to Diagnosis Procedure.
CHECK POWER SUPPLY CIRCUIT
-
Ignition switch OFF.
-
Disconnect the moonroof motor assembly connector.
-
Ignition switch ON.
-
Check voltage between moonroof motor assembly harness connector and ground.
(+) (–) Voltage
(Approx.)Moonroof motor assembly Connector Terminal R4 1 Ground Battery voltage 6
Is the inspection result normal?
YES>>GO TO 2.
NO>>Repair or replace harness.
CHECK GROUND CIRCUIT
-
Ignition switch OFF.
-
Check continuity between moonroof motor assembly harness connector and ground.
Moonroof motor assembly — Continuity Connector Terminal R4 5 Ground Yes
Is the inspection result normal?
YES>>GO TO 3.
NO>>Repair or replace harness.
CHECK MOONROOF SWITCH INPUT SIGNAL
-
Connect moonroof motor assembly.
-
Ignition switch ON.
-
Check voltage between the moonroof motor assembly connector and ground.
(+) (–) Condition Voltage
(Approx.)Moonroof motor assembly Connector Terminals R4 7 Ground Moonroof switch is operated
TILT DOWN or SLIDE OPEN0 V Other than above Battery voltage 8 Moonroof switch is operated
TILT UP or SLIDE CLOSE0 V Other than above Battery voltage
Is the inspection result normal?
YES>>GO TO 6.
NO>>GO TO 4.
CHECK MOONROOF SWITCH CIRCUIT
-
Ignition switch OFF.
-
Disconnect the moonroof motor assembly connector and moonroof switch connector.
-
Check continuity between the moonroof motor assembly harness connector and moonroof switch harness connector.
Moonroof motor assembly Moonroof switch Continuity Connector Terminal Connector Terminal R4 7 R9 1 Yes 8 8 -
Check continuity between the moonroof motor assembly harness connector and ground.
Moonroof motor assembly — Continuity Connector Terminal R4 7 Ground No 8
Is the inspection result normal?
YES>>GO TO 5.
NO>>Repair or replace harness.
CHECK MOONROOF SWITCH GROUND CIRCUIT
Check continuity between the moonroof switch harness connector and ground.
| Moonroof switch | — | Continuity | |
|---|---|---|---|
| Connector | Terminal | ||
| R9 | 6 | Ground | Yes |
Is the inspection result normal?
YES>>Refer to Component Inspection.
NO>>Repair or replace harness.
CHECK COMBINATION METER SIGNAL

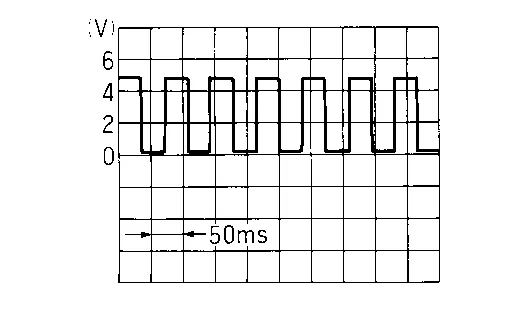

Check the signal between the moonroof motor assembly harness connector and ground with oscilloscope.
| (+) | (-) | Condition |
Signal (Reference value) | |
|---|---|---|---|---|
| Moonroof motor assembly | ||||
| Connector | Terminal | |||
| R4 | 4 | Ground | Speedometer operated [When Nissan Murano vehicle speed is approx. 25 MPH (40 km/h)] |
|
Is the inspection result normal?
YES>>Replace moonroof motor assembly. Refer to Removal and Installation.
NO>>GO TO 7.
CHECK COMBINATION METER CIRCUIT
-
Ignition switch OFF.
-
Disconnect combination meter connector and moonroof motor assembly connector.
-
Check continuity between combination meter harness connector and the moonroof motor assembly harness connector.
Combination meter Moonroof motor assembly Continuity Connector Terminal Connector Terminal M24 38 R4 4 Yes -
Check continuity between the combination meter harness connector and ground.
| Combination meter | — | Continuity | |
|---|---|---|---|
| Connector | Terminal | ||
| M24 | 38 | Ground | No |
Is the inspection result normal?
YES>>Replace combination meter. Refer to Removal and Installation.
NO>>Repair or replace harness.
Sunshade Motor Assembly
Description
BCM supplies the sunshade motor assembly with power.
CPU is integrated in sunshade motor assembly.
Slide open/close controlled by the sunshade switch operation...
