Removal and Installation

REMOVAL

Remove instrument panel tweeter grille (LH\RH). Refer to Exploded View.

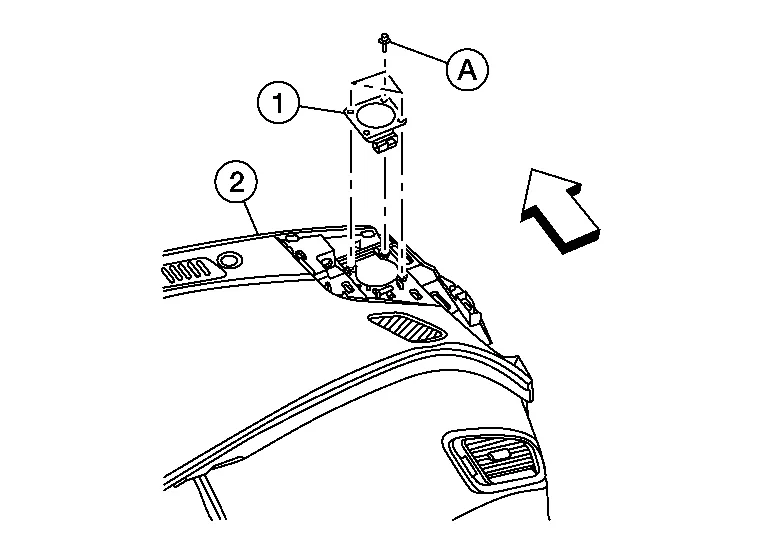

Disconnect the harness connector from instrument panel tweeter and remove screws (A) to remove instrument panel tweeter (1).

(2): Instrument panel assembly

: Front

INSTALLATION

Installation is in the reverse order of removal.
