Nissan Murano: Child restraints / Installing top tether strap

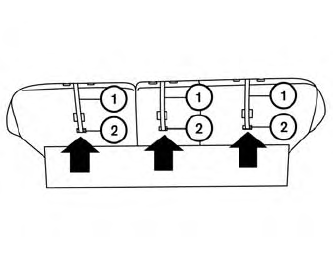

Rear row bench seat
Top tether strap
Anchor point
The child restraint top tether strap must be
used when installing the child restraint with
seat belts.
First, secure the child restraint with the seat
belt.
OUTBOARD SEATING POSITIONS
- Remove the head restraint/headrest
and store it in a secure place. Be sure to
reinstall the head restraint/headrest
when the child restraint is removed. For
additional information, refer to “Head
restraints/headrests” in this section.
- Position the top tether strap
as
shown.
- Secure the tether strap to the tether
anchor point
as shown.
- Tighten the tether strap according to
the manufacturer’s instructions to remove
any slack.
CENTER SEATING POSITION
- Remove the head restraint/headrest
and store it in a secure place. Be sure to
reinstall the head restraint/headrest
when the child restraint is removed. For
additional information, refer to “Head
restraints/headrests” in this section.
- Position the top tether strap
as
shown.
- Secure the tether strap to the tether
anchor point
as shown.
- Tighten the tether strap according to
the manufacturer’s instructions to remove
any slack.
If you have any questions when installing
a top tether strap, it is recommended
that you visit a NISSAN dealer for this
service.
WARNING
Child restraint anchorages are designed
to withstand only those loads
imposed by correctly fitted child restraints.
Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage the
child restraint anchorages. The child restraint
will not be properly installed using
the damaged anchorage, and a
child could be seriously injured or killed
in a collision.
WARNING
The three-point seat belt with Automatic
Locking Retractor (ALR) must be
used when installing a child restraint.
Failure to use the ALRmodewill result in
the child restraint not being properly
secured...
