Fusible Link

A melted fusible link can be detected either by visual inspection or by feeling with a finger tip. If its condition is questionable, use circuit tester or test lamp.

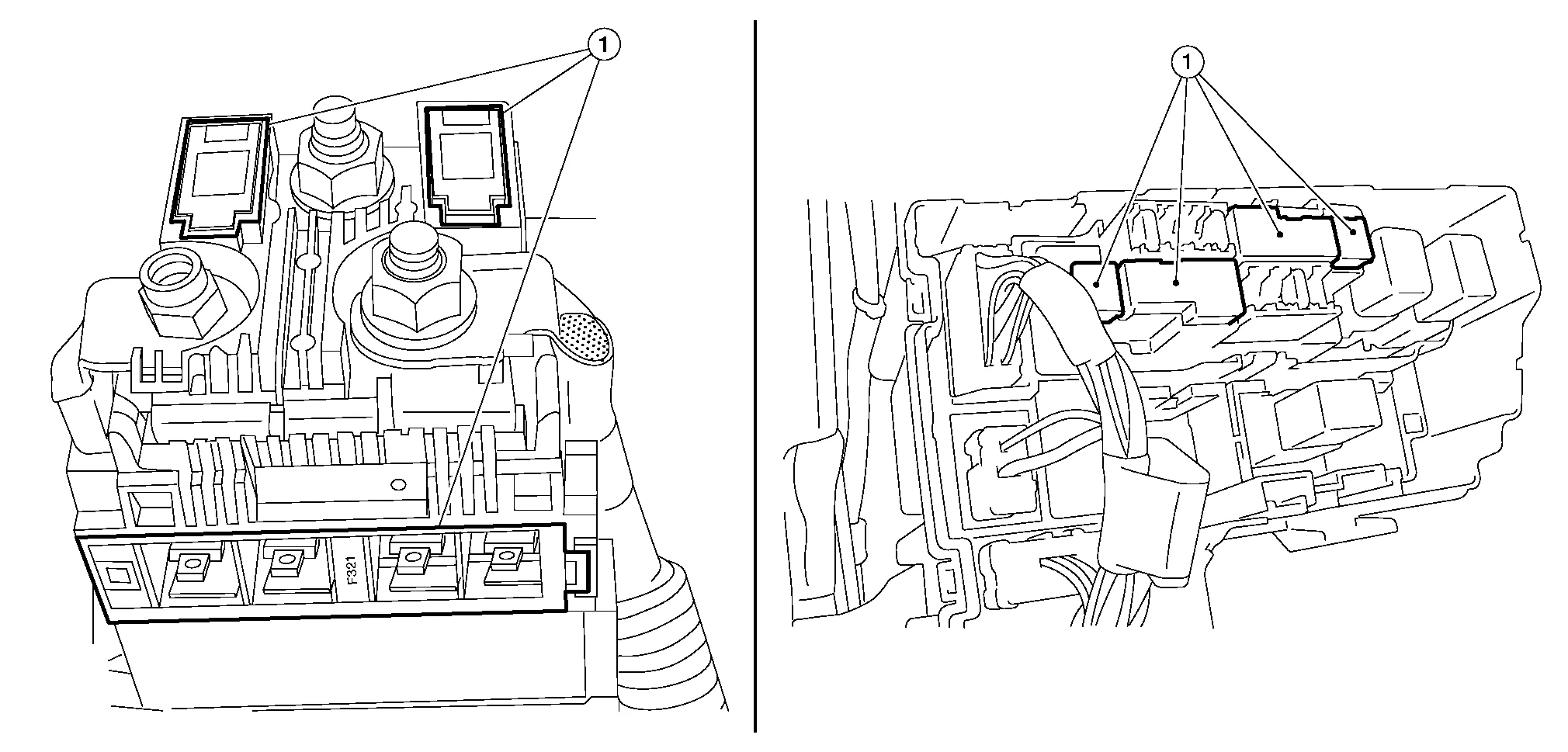

1	: Fusible link

CAUTION:

If fusible link should melt, it is possible that critical circuit (power supply or large current carrying circuit) is shorted. In such a case, carefully check and eliminate cause of malfunction.

Never wrap outside of fusible link with vinyl tape. Important: Never let fusible link touch any other wiring harness, vinyl or rubber parts.

Fuse Inspection

How To Check If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Use fuse of specified rating. Never use fuse of more than specified rating...
