Nissan Murano: Interior Lighting System :: Removal and Installation / Front Room/map Lamp Assembly

Nissan Murano (Z52) 2015-2024 Service Manual / Driver Controls / Interior Lighting System :: Removal and Installation / Front Room/map Lamp Assembly

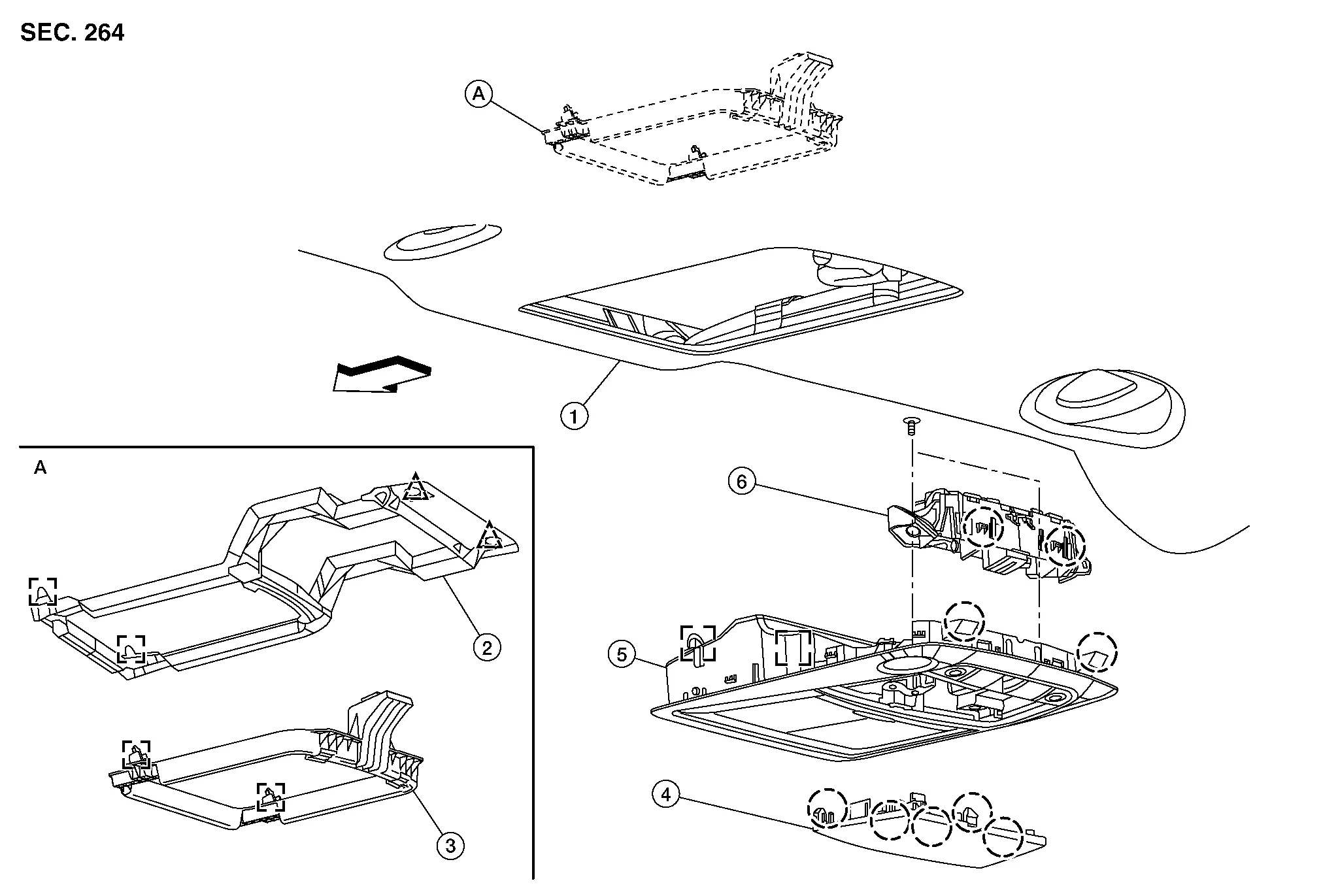

Exploded View

1. Headlining 2. Front room/map lamp assembly bracket (without panoramic roof glass) 3. Front room/map lamp assembly bracket (with panoramic roof glass)
4. Panoramic roof switch finisher 5. Front room/map lamp assembly 6. Map lamp
Pawl Clip Metal Clip
Front
Removal and Installation

REMOVAL

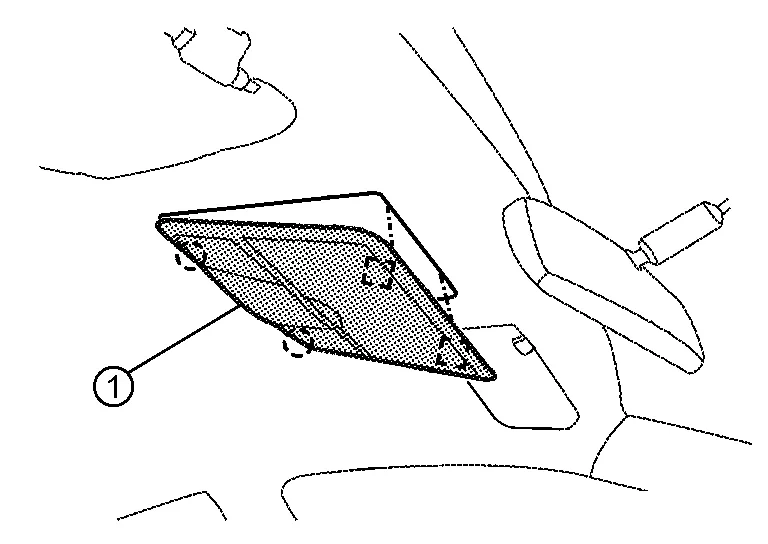

Lower front edge of map lamp assembly (1) down from headlining by releasing metals clips, then slide forward to clear pawls at rear.

: Metal clip

: Pawl

Disconnect the harness connectors from the map lamp assembly and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Visually check metal clips and pawls for deformation and damage during installation. Replace if necessary.

Bulb Replacement

NOTE:

The map lamp bulbs are replaced as part of the map lamp.

REMOVAL

Remove map lamp assembly. Refer to Removal and Installation.

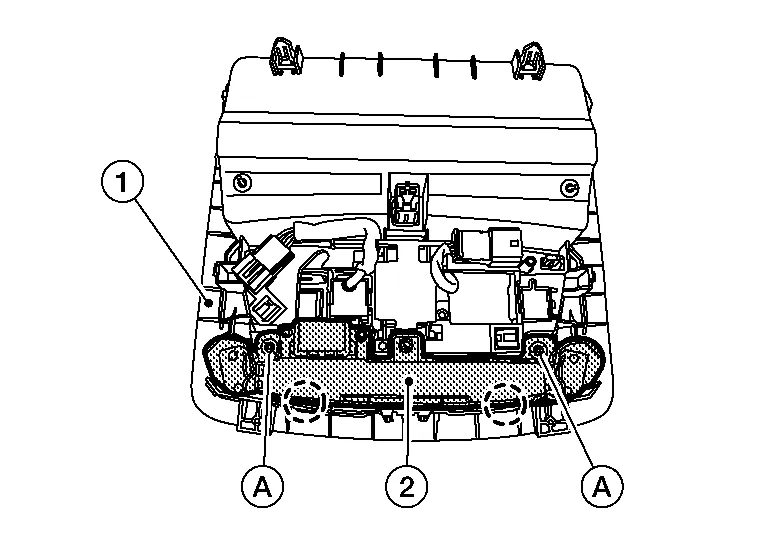

Remove screws (A) from map lamp (2).

Release pawls and remove map lamp from map lamp assembly (1).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.
