Nissan Murano: Glass & Window System :: Removal and Installation / Front Door Glass Regulator

Nissan Murano (Z52) 2015-2024 Service Manual / Body Exterior, Doors, Roof & Vehicle Security / Glass & Window System :: Removal and Installation / Front Door Glass Regulator

Exploded View

1.	Front door glass rubber run	2.	Front door	3.	Front door glass
4.	Front door glass rear run	5.	Front door power window motor	6.	Front door glass regulator

Removal and Installation

REMOVAL

Remove front door finisher. Refer to Removal and Installation.

Remove front door vapor barrier (1).

CAUTION:

Use care not to damage or tear vapor barrier during removal.

Temporarily reconnect main power window and door lock/unlock switch (LH) or power window and door lock/unlock switch RH (RH door).

Operate main power window and door lock/unlock switch (LH) or power window and door lock/unlock switch RH (RH door) to raise/lower front door glass until front door regulator to glass bolts can be seen.

Remove front door regulator to glass bolts (A).

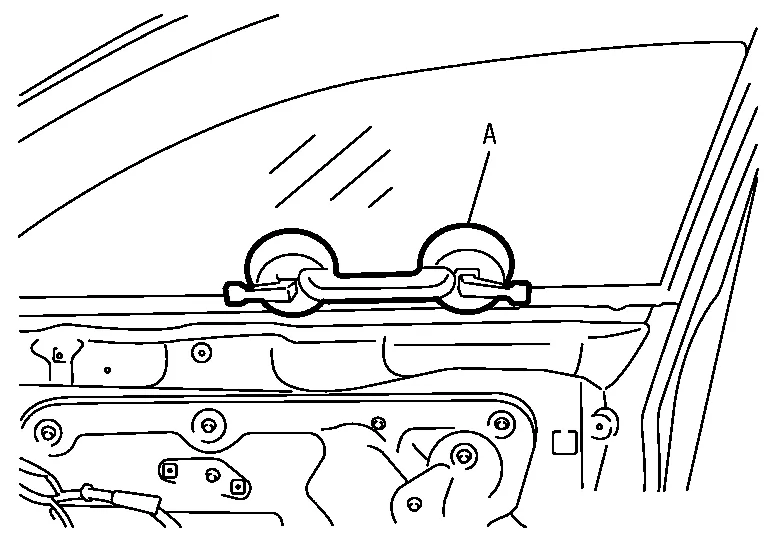

Raise front door glass and hold in place using a suitable tool (A).

Disconnect harness connector from front door glass regulator motor.

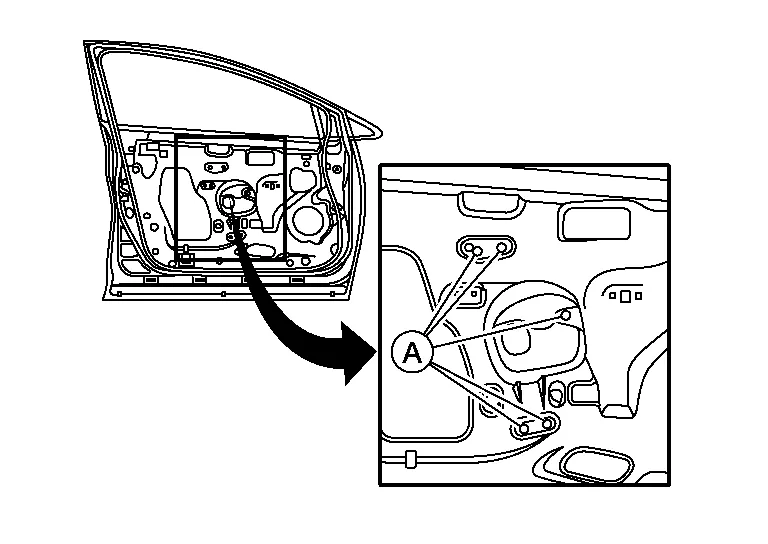

Remove nuts (A), then front door glass regulator.

INSPECTION AFTER REMOVAL

Check the front door glass regulator for the following items.

Wire wear
Regulator deformation
Grease condition for each sliding part

If a malfunction is detected, replace or grease it.

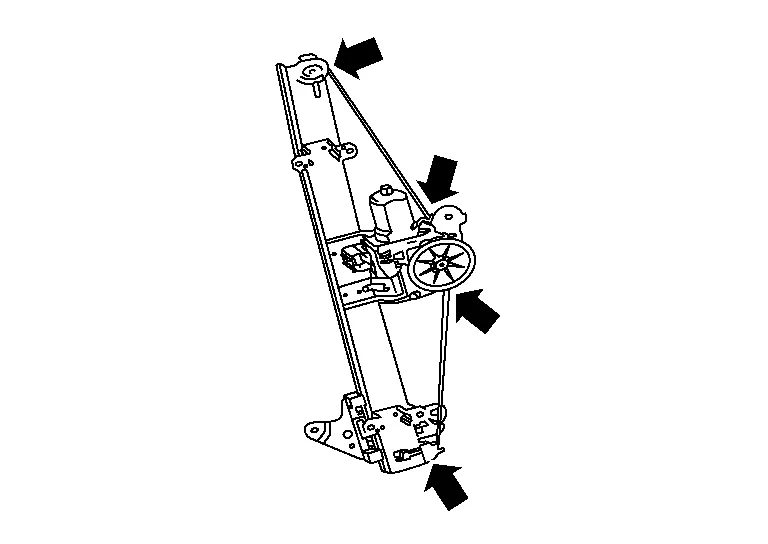

The arrows in the figure show the application points of the suitable multi-purpose grease, if needed.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When the main power window and door lock/unlock switch or front power window and door lock/unlock switch RH is removed it is necessary to perform the initialization procedure. Refer to Description.

FITTING INSPECTION

Check that the front door glass is fit securely into the glass run groove.

Lower the front door glass slightly [approximately 10 to 20 mm (0.39 to 0.79) and check that the clearance to the run is parallel.If the clearance between the glass and sash is not parallel, loosen the front door glass regulator bolts, front door glass run channel bolts, and glass and run rail bolts to correct the glass position.
