Nissan Murano: Glass & Window System :: Removal and Installation / Front Door Glass

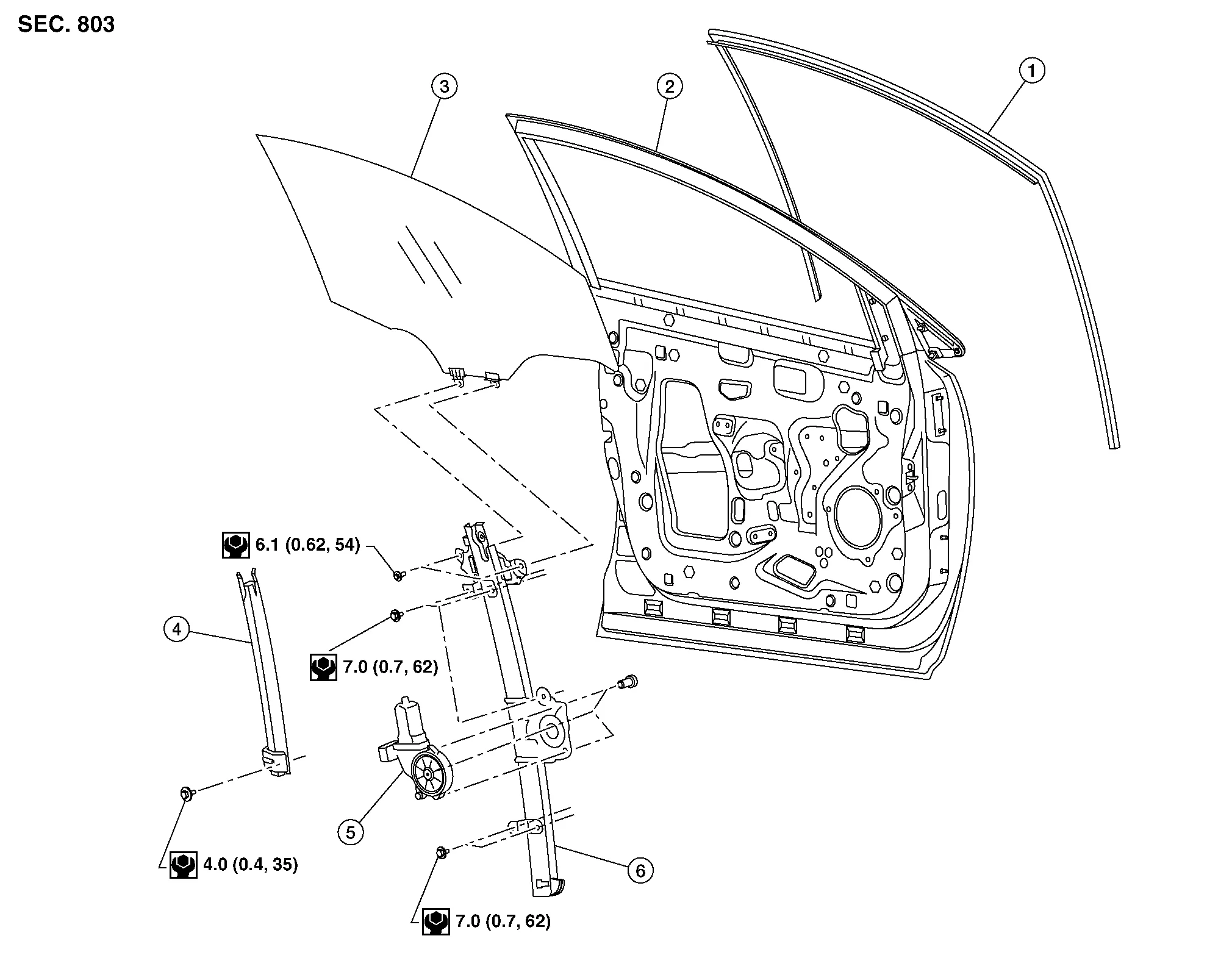

| 1. | Front door glass rubber run | 2. | Front door | 3. | Front door glass |
| 4. | Front door glass rear run | 5. | Front door power window motor | 6. | Front door glass regulator |
REMOVAL
Remove front door finisher. Refer to Removal and Installation.

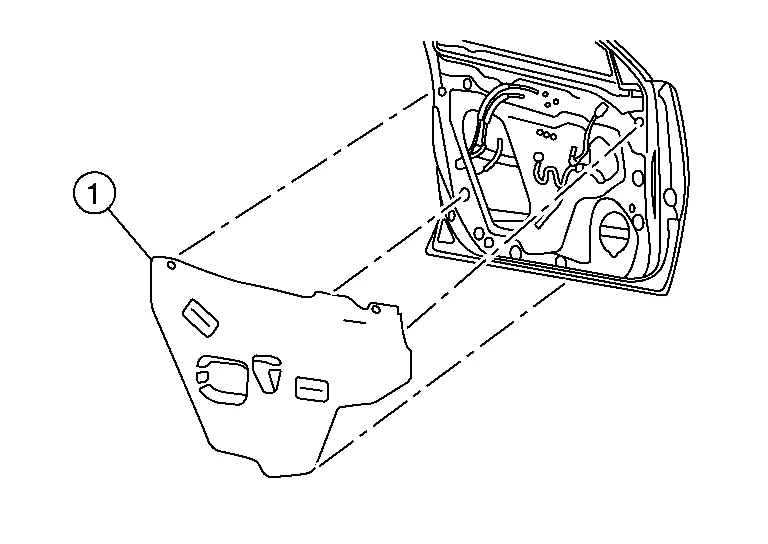

Remove front door vapor barrier (1).
CAUTION:
Use care not to damage or tear vapor barrier during removal.

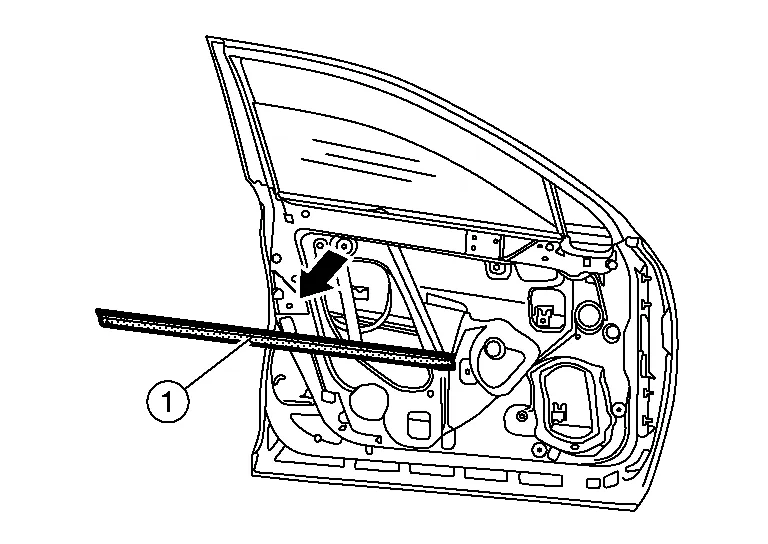

Remove front door inside seal (1).
Temporarily reconnect main power window and door lock/unlock switch (LH door) or power window and door lock/unlock switch RH (RH door).
Operate main power window and door lock/unlock switch (LH door) or power window and door lock/unlock switch RH (RH door) to raise/lower the front door glass until the front door regulator to glass bolts can be seen.

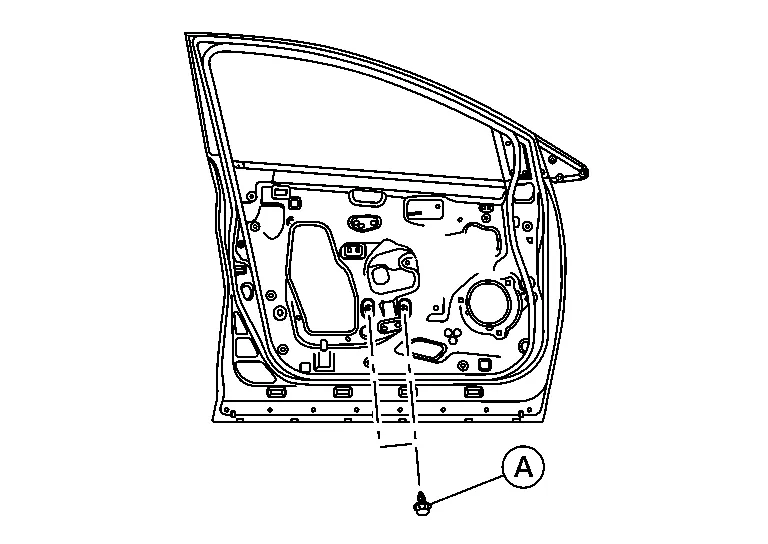

Remove front door regulator to glass bolts (A).
While holding front door glass, raise it at the rear end and pull front door glass out of the sash toward the outside of the door.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
-
When the main power window and door lock/unlock switch or front power window and door lock/unlock switch RH is removed it is necessary to perform the initialization procedure. Refer to Description.
FITTING INSPECTION
-
Check that the glass is securely fit into the glass run groove.
-

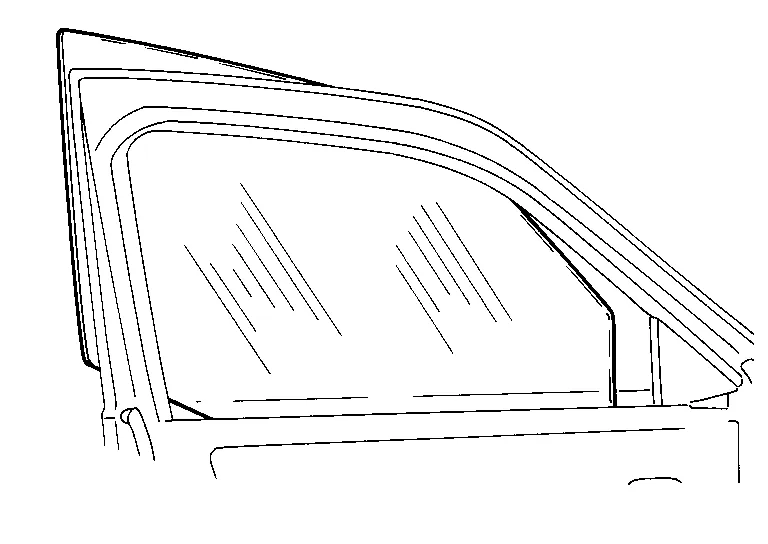

Lower the front door glass slightly [approximately 10 to 20 mm (0.4 to 0.8 in)] and check that the clearance to the sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts, guide rail bolts, and glass and guide rail bolts to correct the glass position.
