Removal and Installation

REMOVAL

Remove front door glass regulator. Refer to Removal and Installation.

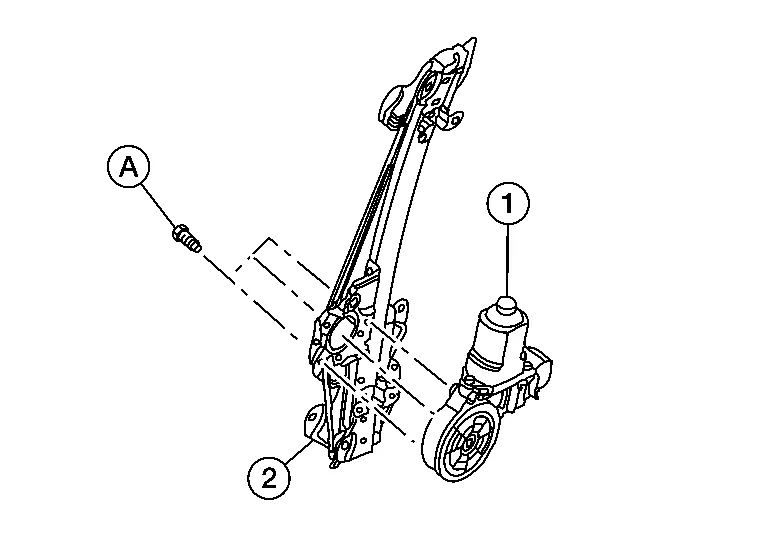

Remove screws (A) and front power window motor (1) from front door glass regulator (2).

INSTALLATION

Installation is in the reverse order of removal.
