Nissan Murano: Engine Mechanical :: Removal and Installation / Engine Room Cover

Nissan Murano (Z52) 2015-2024 Service Manual / Engine / Engine Mechanical :: Removal and Installation / Engine Room Cover

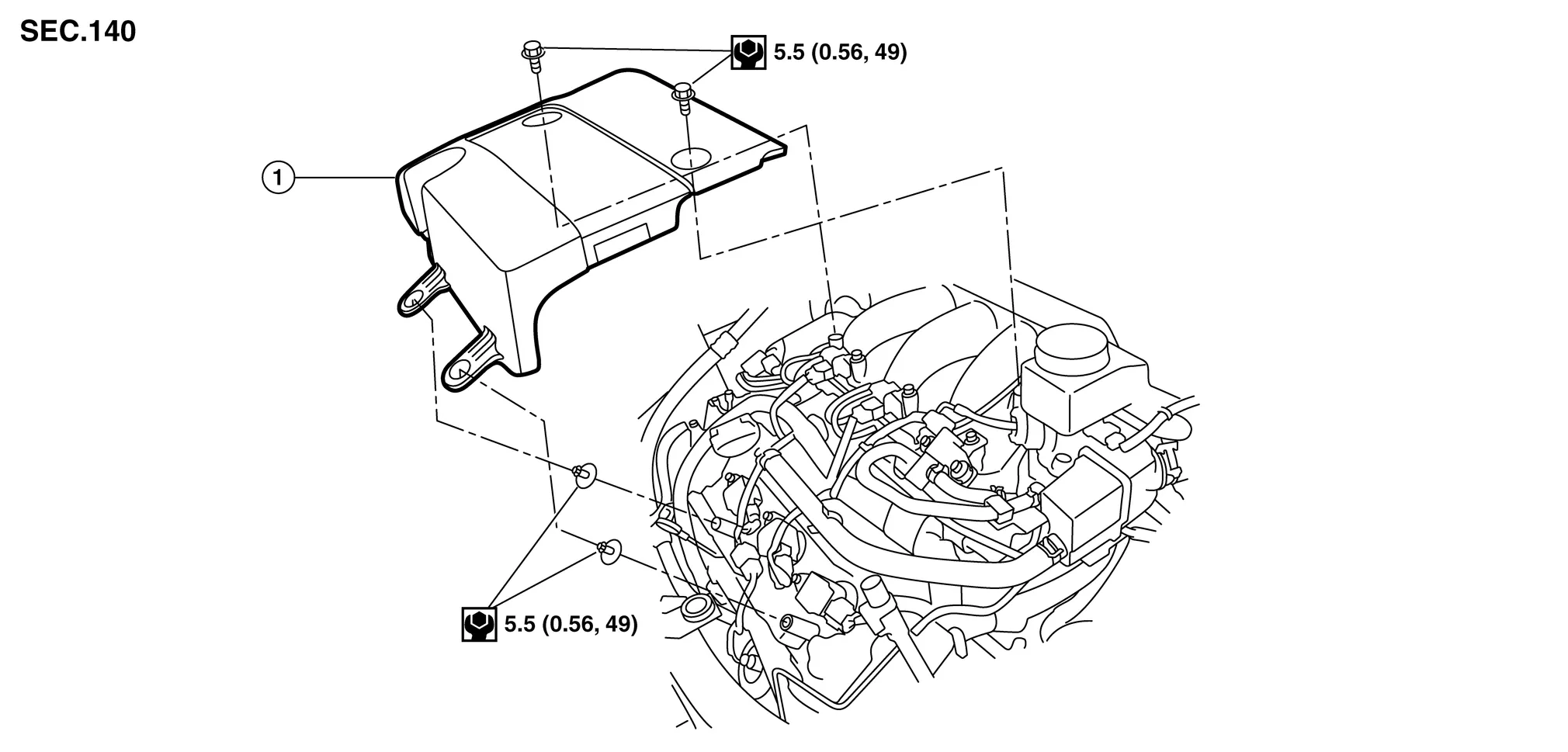

Exploded View

Engine room cover

Removal and Installation

CAUTION:

Do not damage or scratch engine room cover when installing or removing.

REMOVAL

Remove front air duct. Refer to Removal and Installation.

Remove engine room cover bolts.

Remove engine room cover.

INSTALLATION

Installation is in the reverse order of removal.
