Nissan Murano: Engine / Engine Mechanical :: Preparation. Preparation

Nissan Murano (Z52) 2015-2024 Service Manual / Engine / Engine Mechanical :: Preparation. Preparation

Special Service Tools

The actual shape of the tools may differ from those illustrated here.
Tool number (TechMate No.) Tool name		Description

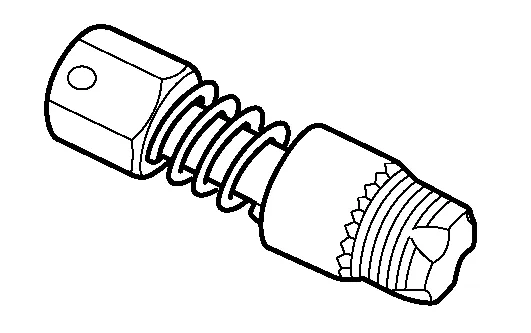

— (J-43897-18) Oxygen sensor thread cleaner		Reconditioning the exhaust system threads before installing a new oxygen sensor (Use with anti-seize lubricant shown below.) J-43897-18 (18 mm dia.) for zirconia oxygen sensor
— (J-50288) Ring gear stopper		Removing and installing crankshaft pulley
16441 6N210 (J-45488) Quick connector release		Removing fuel tube quick connectors in engine room (Available in SEC. 164 of PARTS CATALOG: Part No. 16441 6N210)
— (J-48891) Spark plug socket		Removing and installing spark plug
KV10111100 (J-37228) Seal cutter		Removing oil pan and timing chain case

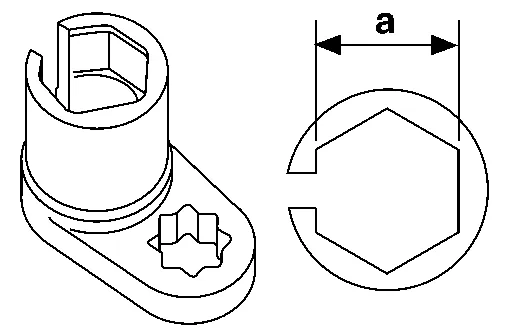

KV991J0050 (J-44626) Air fuel sensor Socket		Loosening or tightening air fuel ratio A/F sensor a: 22 mm (0.87 in)

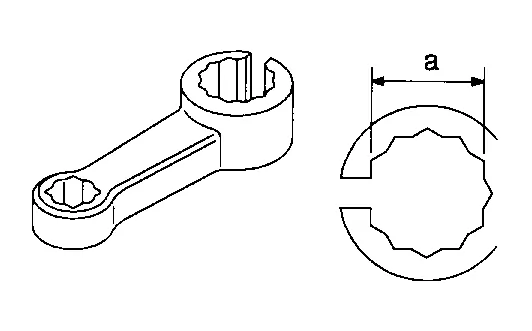

KV10114400 (J-38365) Heated oxygen sensor wrench		Loosening or tightening rear heated oxygen sensor a: 22 mm (0.87 in)
— (J-37066) Seal installer		Installing front main seal
— (J-47128) Seal installer		Installing rear main seal

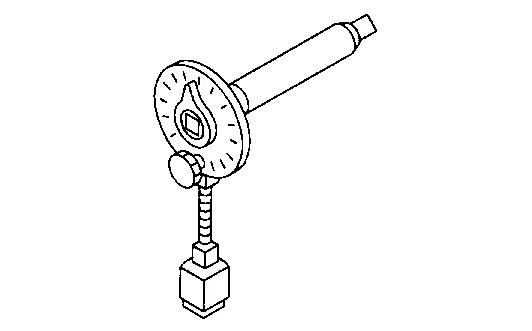

KV10112100 (BT-8653-A) Torque angle meter		Tightening bolts for bearing cap, cylinder head, etc.

Commercial Service Tool

Tool number (TechMate No.) Tool name		Description

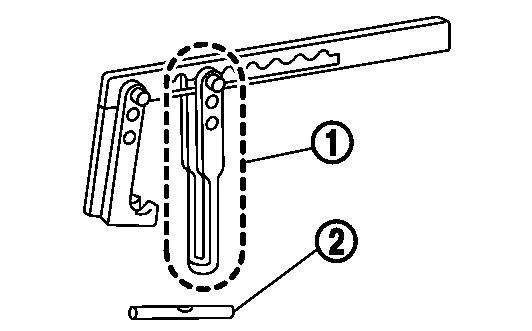

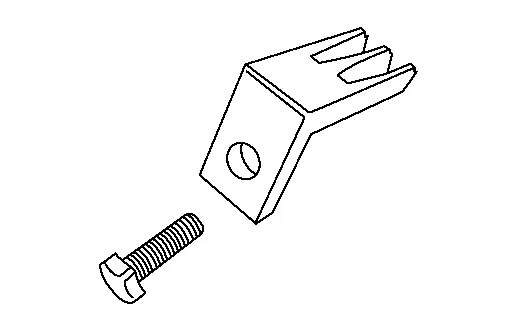

KV10116200 (J-26336-A) Valve spring compressor 1. KV10115900 (J-26336-20) Attachment 2. KV10109220 ( — ) Adapter		Disassembling valve mechanism Part (1) is a component of KV10116200 (J-26336-A), but part (2) is not.

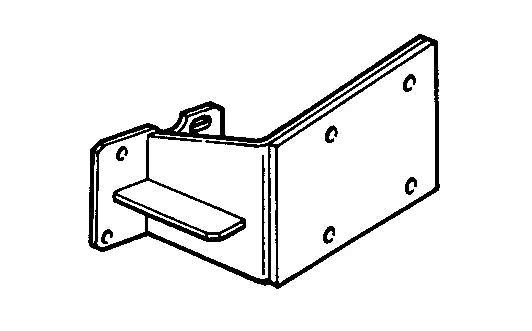

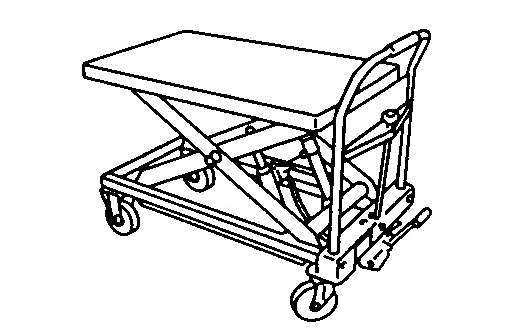

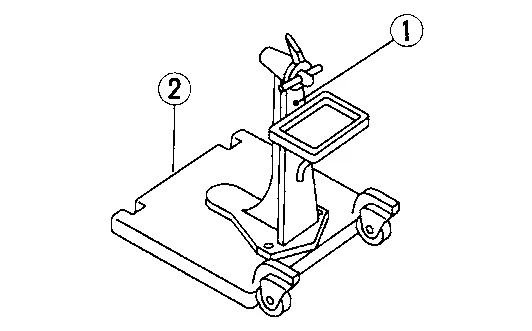

— ( — ) Manual lift table caddy		Removing and installing engine
ST16610001 (J-23907) Pilot converter puller		Removing crankshaft pilot converter
— ( — ) Tube presser		Pressing the tube of liquid gasket

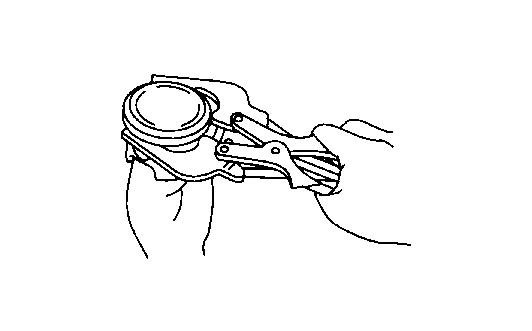

— ( — ) Piston ring compressor		Installing piston assembly into cylinder bore

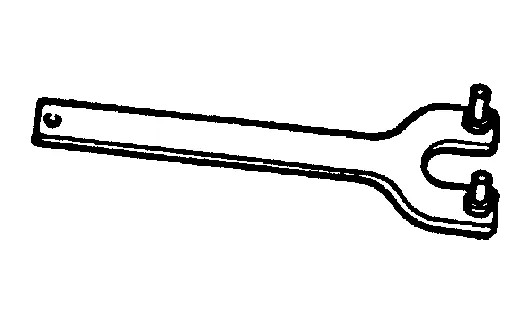

— ( — ) Pulley holder		Removing and installing Crankshaft pulley (Holding Crankshaft pulley)

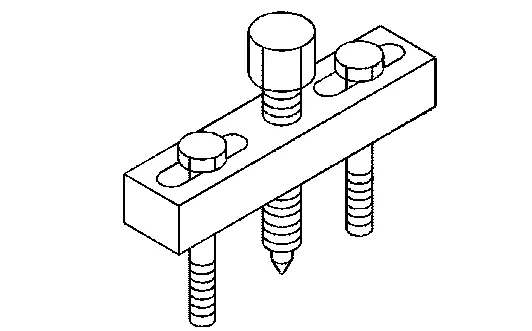

— ( — ) Pulley puller		Removing crankshaft pulley

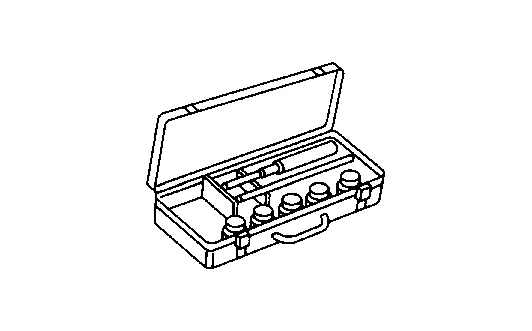

— ( — ) Valve seat cutter set		Finishing valve seat dimensions
— ( — ) Piston ring expander		Removing and installing piston ring

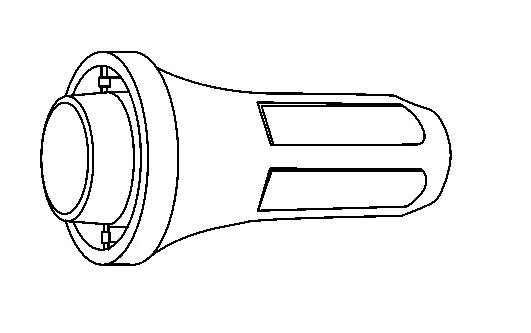

— (J-39386) Valve oil seal drift		Installing valve oil seal

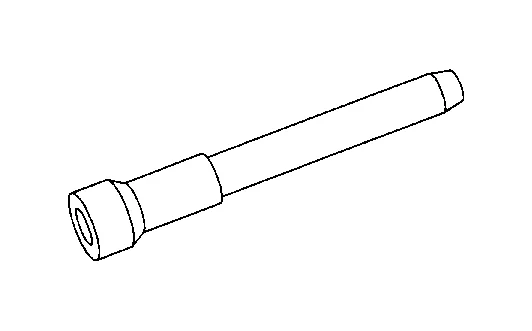

— ( — ) Valve guide drift		Removing and installing valve guide Intake & Exhaust: a: 9.5 mm (0.374 in) dia. b: 5.5 mm (0.217 in) dia.

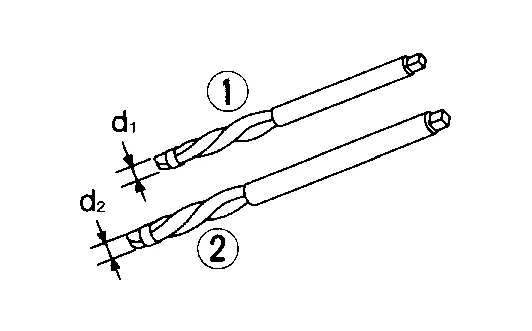

— ( — ) Valve guide reamer		1: Reaming valve guide inner hole 2: Reaming hole for oversize valve guide Intake & Exhaust: d₁: 6.0 mm (0.236 in) dia. d₂: 10.2 mm (0.402 in) dia.

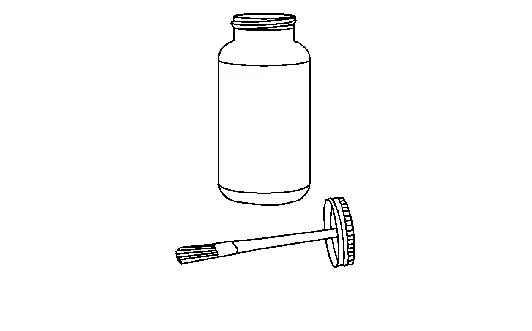

— ( — ) Anti-seize lubricant (Permatex 133AR or equivalent meeting MIL specification MIL-A-907)		Lubricating oxygen sensor thread cleaning tool when reconditioning exhaust system threads

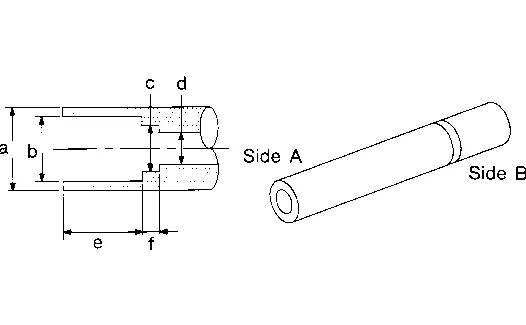

KV10115600 (J-38958) Valve oil seal drift		Installing valve oil seal Use side A. a: 20 (0.79) dia. d: 8 (0.31) dia. b: 13 (0.51) dia. e: 10.7 (0.421) dia. c: 10.3 (0.406) dia. f: 5 (0.20) dia. Unit: mm (in)
— ( — ) Power tool		Loosening nuts, screws, and bolts

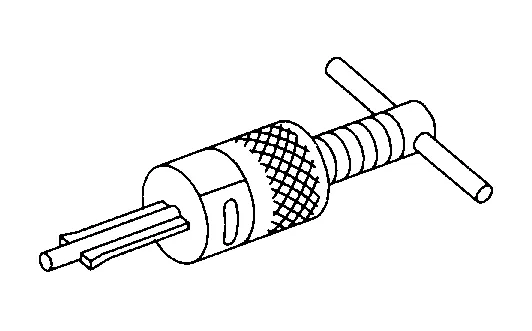

KV10107902 (J-38959) Valve oil seal puller with adapter (1)		Removing valve oil seal
ST0501S000 Engine stand assembly ( — ) 1. ST05011000 ( — ) Engine stand 2. ST05012000 ( — ) Base		Disassembling and assembling
KV10106500 ( — ) Engine stand shaft		Engine supporting
KV10115300 ( — ) Engine sub-attachment		Disassembling and assembling

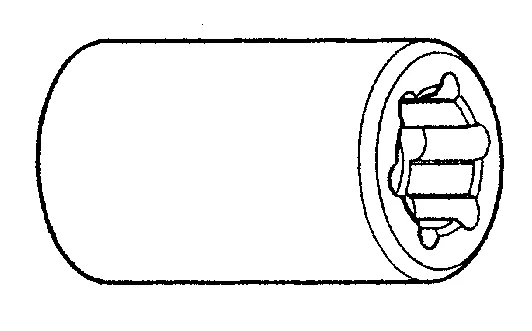

— (J-45816) E20 Socket		Removing and installing CVT drive plate bolts
