Nissan Murano: Engine / Engine Lubrication System :: Preparation. Preparation

Nissan Murano (Z52) 2015-2024 Service Manual / Engine / Engine Lubrication System :: Preparation. Preparation

Special Service Tools

The actual shape of the tools may differ from those illustrated here.
Tool number (TechMate No.) Tool name		Description

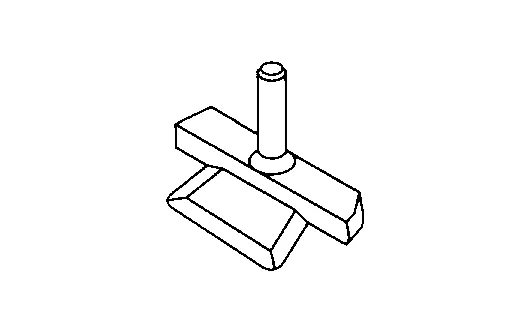

KV10111100 (J-37228) Seal cutter		Removing oil pan (lower) etc.

Commercial Service Tools

(TechMate No.) Tool name		Description

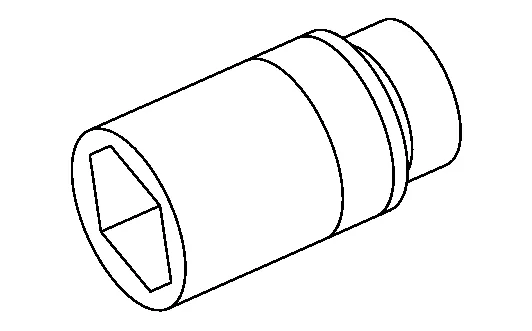

( — ) Deep socket		Removing and installing oil pressure sensor 27 mm (1.06 in)

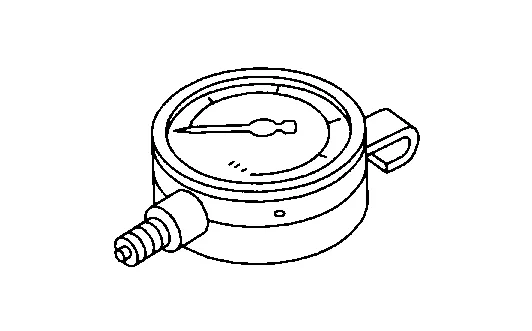

(J-25695-1) Oil pressure gauge		Measuring oil pressure Maximum measuring range: 2,452 kPa (25 kg-cm², 356 psi)

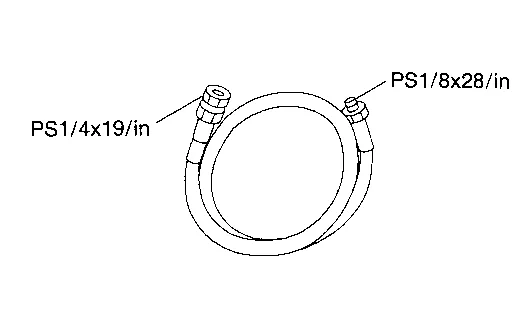

(J-25695-2) Hose		Adapting oil pressure gauge to upper oil pan
( — ) Oil filter wrench assortment		Removing oil filter
( — ) Tube presser		Pressing the tube of liquid gasket
( — ) Power tool		Loosening nuts, screws and bolts

Engine Lubrication System :: Precaution. Precautions

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions...

Engine Lubrication System :: System Description. Lubrication System

Engine Lubrication System 1. Camshaft (EXH) journal (No. 1) 2. Timing chain tensioner (secondary) 3. Camshaft (EXH) 4. Camshaft (INT) journal (No...
