Reference Value

CONSULT DATA MONITOR STANDARD VALUE

  • In CONSULT, electric shift timing or lock-up timing, i.e. operation timing of each solenoid valve, is displayed. Therefore, if there is an obvious difference between the shift timing estimated from a shift shock (or engine speed variations) and that shown on the CONSULT, the mechanism parts (including the hydraulic circuit) excluding the solenoids and sensors may be malfunctioning. In this case, check the mechanical parts following the appropriate diagnosis procedure.

  • Shift point (gear position) displayed on CONSULT slightly differs from shift pattern described in Service Manual. This is due to the following reasons.

    • Actual shift pattern may vary slightly within specified tolerances.

    • While shift pattern described in Service Manual indicates start of each shift, CONSULT shows gear position at end of shift.

    • The solenoid display (ON/OFF) on CONSULT is changed at the start of gear shifting. In contrast, the gear position display is changed at the time when gear shifting calculated in the control unit is completed.

NOTE:

The following table includes information (items) inapplicable to this Nissan Murano vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

Monitor item Condition Value/Status (Approx.)
VSP SENSOR While driving Almost same as the speedometer display.
ESTM VSP SIG While driving Almost same as the speedometer display.
INPUT SPEED SENSOR In driving (lock-up ON) Approximately matches the engine speed.
PRI SPEED SEN In driving (lock-up ON) Approximately matches the engine speed.
SEC REV SENSOR While driving VSP SENSOR × 40
ENG SPEED SIG Engine running Almost same reading as tachometer
SEC PRESSURE SEN

  • After engine warm up

  • Selector lever: “N” position

  • At idle

 1.7 – 1.8 V
PRI PRESSURE SEN

  • After engine warm up

  • Selector lever: “N” position

  • At idle

 1.32 – 1.34 V
ATF TEMP SEN CVT fluid: Approx. 20°C (68°F) 2.01 – 2.05 V
CVT fluid: Approx. 50°C (122°F) 1.45 – 1.50 V
CVT fluid: Approx. 80°C (176°F) 0.90 – 0.94 V
G SENSOR Always 0 V
VIGN SEN Ignition switch: ON 10.0 – 16.0 V
PVIGN VOLT Ignition switch: ON 10.0 – 16.0 V
Nissan Murano Vehicle SPEED While driving Almost same as the speedometer display.
INPUT REV In driving (lock-up ON) Almost same as the engine speed.
PRI SPEED In driving (lock-up ON) Approximately matches the engine speed.
SEC SPEED While driving VSP SENSOR × 40
ENG SPEED Engine running Almost same reading as tachometer
SLIP REV While driving Engine speed − Input speed
PULLEY GEAR RATIO In driving (forward) 2.43 − 0.38
In driving (reverse) 2.43
G SPEED Nissan Murano Vehicle stopped 0.00 G
During acceleration The value changes to the positive side along with acceleration.
During deceleration The value changes to the positive side along with deceleration.
ACCEL POSI SEN 1 Accelerator pedal released 0.00 deg
Accelerator pedal fully depressed 80.00 deg
VENG TRQ While driving The value changes along with acceleration/deceleration.
PRI TRQ While driving The value changes along with acceleration/deceleration.
TRQ RTO While driving The value changes along with acceleration/deceleration.
SEC PRESSURE

  • After engine warm up

  • Selector lever: “N” position

  • At idle

 1.800 MPa
PRI PRESSURE

  • After engine warm up

  • Selector lever: “N” position

  • At idle

 1.100 MPa
FLUID TEMP Ignition switch ON. Displays the CVT fluid temperature.
DSR REV While driving It varies along with the driving condition.
TGT PLLY GR RATIO In driving (forward) 2.43 − 0.38
In driving (reverse) 2.43
LU PRS

  • Engine started

  • Nissan Murano Vehicle is stopped.

 −0.50 MPa

  • Selector lever: “D” position

  • Accelerator pedal position: 1/8 or less

  • Nissan Murano Vehicle speed: 20 km/h (12 MPH) or more

 0.45 MPa
LINE PRS

  • After engine warm up

  • Selector lever: “N” position

  • At idle

 1.800 MPa

  • After engine warm up

  • Selector lever: “N” position

  • Depress the accelerator pedal fully

 4.930 – 5.430 MPa
TRGT PRI PRESSURE

  • After engine warm up

  • Selector lever: “N” position

  • At idle

 1.100 MPa
TARGET SELECT PRESSURE

  • After engine warm up

  • Selector lever: “N” position

  • At idle

 0.000 MPa
TARGET SEC PRESSURE

  • After engine warm up

  • Selector lever: “N” position

  • At idle

 1.800 MPa
ISOLT1 — —
ISOLT2 — —
PRI SOLENOID — —
SEC SOLENOID CURRENT — —
SELECT SOLENOID CURRENT — —
SOLMON1 — —
SOLMON2 — —
PRI SOL MON — —
SEC SOL MON CURRENT — —
SELECT SOL MON CURRENT — —
D POSITION SW Selector lever: “D” position On
Other than the above Off
N POSITION SW Selector lever: “N” position On
Other than the above Off
R POSITION SW Selector lever: “R” position On
Other than the above Off
P POSITION SW Selector lever: “P” position On
Other than the above Off
L POSITION SW Always Off
DS RANGE SW Always Off
BRAKESW Brake pedal is depressed On
Brake pedal is released Off
IDLE SW Accelerator pedal is released On
Accelerator pedal is fully depressed Off
SPORT MODE SW Always Off
ECO MODE SW Always Off
STRDWNSW Always Off
STRUPSW Always Off
DOWNLVR Selector lever: -side On
Other than the above Off
UPLVR Selector lever: +side On
Other than the above Off
NONMMODE Manual shift gate position (neutral, +side, -side) Off
Other than the above On
MMODE Manual shift gate position (neutral, +side, -side) On
Other than the above Off
TOW MODE SW Always Off
SHIFT IND SIGNAL When the selector lever is positioned in between each position. OFF
Selector lever: P position P
Selector lever: R position R
Selector lever: N position N
Selector lever: D position D
Manual mode: 1st 1st
Manual mode: 2nd 2nd
Manual mode: 3rd 3rd
Manual mode: 4th 4th
Manual mode: 5th 5th
Manual mode: 6th 6th
Manual mode: 7th 7th
CVT LAMP Approx. 2 seconds after ignition switch ON On
Other than the above Off
SPORT MODE IND Always Off
MANU MODE SIGNAL Driving with manual mode On
Other than the above Off
DS RANGE SIGNAL Always Off
ECO MODE SIGNAL Always Off
VDC ON VDC is activated On
Other than the above Off
TCS ON TCS is activated On
Other than the above Off
ABS FAIL SIGNAL When ABS malfunction signal is received On
Other than the above Off
ABS ON ABS is activated On
Other than the above Off
RANGE Selector lever: P and N positions N/P
Selector lever: R position R
Selector lever: D position D
Selector lever: M position
M GEAR POS Manual mode: 1st – 7th 1 to 7
G SEN SLOPE Flat road 0%
Uphill gradient The value changes to the positive sidealong with uphill gradient. (Maximum40.45%)
Downhill gradient The value changes to the negative sidealong with downhill gradient. (Minimum −40.45%)
G SEN CALIBRATION When G sensor calibration is completed DONE
When G sensor calibration is not completed YET
N IDLE STATUS Always Off
ENGBRKLVL When the engine brake level of “ENGINE BRAKE ADJ”. in “Work Support” is ON On
When the engine brake level of “ENGINE BRAKE ADJ”. in “Work Support” is OFF Off
DRIVE MODE STATS While drive in D position AUTO
SNOW MODE Always Off
ECO MODE Always Off
NORMAL MODE Always Off
SPORT MODE Always Off
AIR BLDING STATE Always COMP
ELECTRIC OP DUTY Always 0%
E-OP DUTY MON Always 0%
ELECTRIC OP RELAY Always Off
E-OP RELAY MON Always Off
CVT-A* — —
CVT-B* — —
AXLE TYPE — 2WD/4WD
T/M warning indicator DTC* Ignition switch ON The first DTC only turns on the CVT warning indicator is displayed
T/M warning indicator milege* Ignition switch ON When the CVT warning indicator is turned on at first time, the total mileage is displayed.

*: This monitor items does not use.

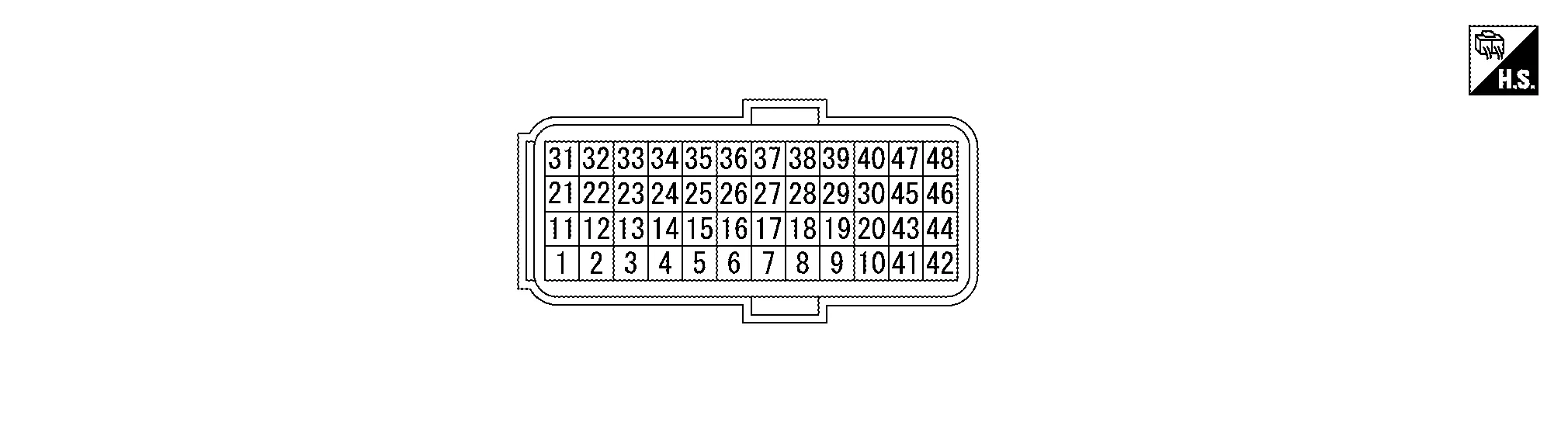

TERMINAL LAYOUT

INPUT/OUTPUT SIGNAL STANDARD

Terminal No.

(Wire color) 		Description Condition Value (Approx.)
+ − Signal Input/Output

2*

(SB) 		— — — — —

4

(Y) 		Ground D position switch Input Ignition switch ON Selector lever: “D” position 10 − 16 V
Other than the above 0 V

5

(L) 		Ground N position switch Input Selector lever: “N” position 10 − 16 V
Other than the above 0 V

6

(BR) 		Ground R position switch Input Selector lever: “R” position 10 − 16 V
Other than the above 0 V

7

(V) 		Ground P position switch Input Selector lever: “P” position 10 − 16 V
Other than the above 0 V

11

(Y) 		Ground Sensor ground — Always 0 V

12

(W) 		Ground CVT fluid temperature sensor Output Ignition switch ON CVT fluid: Approx. 20°C (68°F) 2.01 – 2.05 V
CVT fluid: Approx. 50°C (122°F) 1.45 – 1.50 V
CVT fluid: Approx. 80°C 176°F) 0.90 – 0.94 V

16

(Y) 		Ground Secondary pressure sensor Input

  • Selector lever: “N” position

  • At idle

 1.7 – 1.8 V

17

(LG) 		Ground Primary pressure sensor Input

  • Selector lever: “N” position

  • At idle

 1.32 – 1.34 V

23

(P) 		— CAN-L Input/Output — —

24

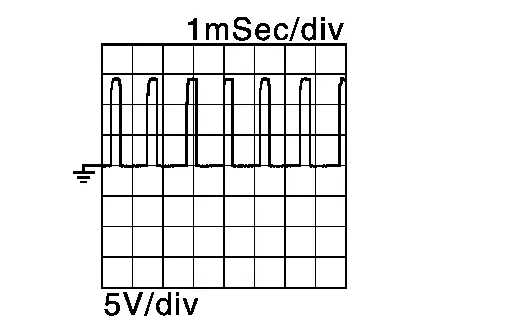

(SB) 		Ground Input speed sensor Input

  • Selector lever: “M1” position

  • Nissan Murano Vehicle speed: 20 km/h (12 MPH)

800 Hz

26

(V) 		Ground Sensor power supply Output Ignition switch: ON 5.0 V
Ignition switch: OFF 0 V

30

(SB) 		Ground Line pressure solenoid valve Output

  • After engine warming up

  • Selector lever: “N” position

  • At idle

  • After engine warming up

  • Selector lever: “N” position

  • Depress the accelerator pedal fully

33

(L) 		— CAN-H Input/Output — —

34

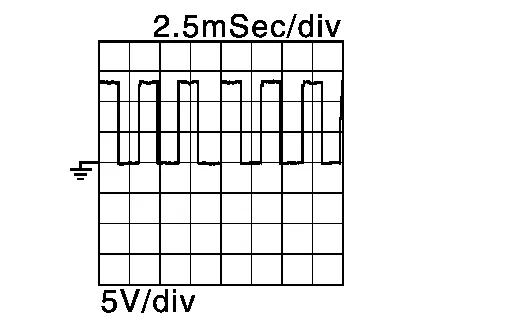

(BR) 		Ground Output speed sensor Input

  • Selector lever: “M1” position

  • Nissan Murano Vehicle speed: 20 km/h (12 MPH)

200 Hz

35

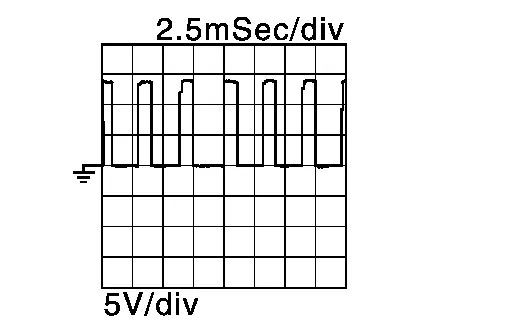

(LG) 		Ground Primary speed sensor Input

  • Selector lever: “M1” position

  • Nissan Murano Vehicle speed: 20 km/h (12 MPH)

600 Hz

37

(BR) 		Ground Select solenoid valve Output

  • Engine started

  • Nissan Murano Vehicle is stopped

  • Selector lever: “N” position

38

(Y) 		Ground Torque converter clutch solenoid valve Output

  • Selector lever: “D” position

  • Accelerator pedal position: 1/8 or less

  • Nissan Murano Vehicle speed: 20 km/h (12 MPH) or more

  • Engine started

  • Nissan Murano Vehicle is stopped

39

(L) 		Ground Secondary pressure solenoid valve Output

  • Selector lever: “M1” position

  • Nissan Murano Vehicle speed: 20 km/h (12 MPH)

40

(V) 		Ground Primary pressure solenoid valve Output

  • Selector lever: “M1” position

  • Nissan Murano Vehicle speed: 20 km/h (12 MPH)

41

(B) 		Ground Ground Output Always 0 V

42

(B) 		Ground Ground Output Always 0 V

45

(P) 		Ground Power (backup) Input Always 10 − 16 V

46

(P) 		Ground Power (backup) Input Always 10 − 16 V

47

(Y) 		Ground Power supply Input Ignition switch: ON 10 − 16 V
Ignition switch: OFF 0 V

48

(Y) 		Ground Power supply Input Ignition switch: ON 10 − 16 V
Ignition switch: OFF 0 V

*: This harness does not use.

Fail-safe

Refer to Fail-safe.

Protection Control

Refer to Protection Control.

DTC Inspection Priority Chart

If multiple malfunction codes are detected at the same time, check each code according to the DTC check priority list below.

Priority DTC

Items

(CONSULT screen terms) 		Reference
1 P0863 CONTROL UNIT (CAN) DTC Description
U0073 COMM BUS A OFF DTC Description
U0100* LOST COMM (ECM A) DTC Description
U0102 LOST COMM (TRANSFER) DTC Description
U0121 LOST COMM (ABS) DTC Description
U0122* LOST COMM (BRAKE C/U) DTC Description
U0140 LOST COMM (BCM) DTC Description
U0141 LOST COMM (BCM A) DTC Description
U0155 LOST COMM (IPC) DTC Description
U0164 LOST COMM (HVAC) DTC Description
U0300 CAN COMM DATA DTC Description
U1000 CAN COMM CIRC DTC Description
U1117 LOST COMM (ABS) DTC Description
U1118 LOST COMM (AV C/U) DTC Description
2 P0740 TORQUE CONVERTER DTC Description
P0742 TORQUE CONVERTER DTC Description
P0778 PC SOLENOID B DTC Description
P0779 PC SOLENOID B DTC Description
P0962 PC SOLENOID A DTC Description
P0963 PC SOLENOID A DTC Description
P0966 PC SOLENOID B DTC Description
P0967 PC SOLENOID B DTC Description
P2758 TCC PRESSURE CONT SOLENOID DTC Description
P2815 SELECT SOLENOID DTC Description
3 P0605 CONTROL MODULE ROM DTC Description
P0705 T/M RANGE SENSOR A DTC Description
P0706 T/M RANGE SENSOR A DTC Description
P0711 FLUID TEMP SENSOR A DTC Description
P0712 FLUID TEMP SENSOR A DTC Description
P0713 FLUID TEMP SENSOR A DTC Description
P0715 INPUT SPEED SENSOR A DTC Description
P0716 INPUT SPEED SENSOR A DTC Description
P0717 INPUT SPEED SENSOR A DTC Description
P0718 INPUT SPEED SENSOR A DTC Description
P0792 INTERMEDIATE SPEED SENSOR A DTC Description
P0793 INTERMEDIATE SPEED SENSOR A DTC Description
P0794 INTERMEDIATE SPEED SENSOR A DTC Description
P0841 FLUID PRESS SEN/SW A DTC Description
P0847 FLUID PRESS SEN/SW B DTC Description
P0848 FLUID PRESS SEN/SW B DTC Description
P084C FLUID PRESS SEN/SW H DTC Description
P084D FLUID PRESS SEN/SW H DTC Description
P0890 TCM DTC Description
P1588 GSENSOR DTC Description
P159C GSENSOR DTC Description
P159D GSENSOR DTC Description
P2765 INPUT SPEED SENSOR B DTC Description
P2766 INPUT SPEED SENSOR B DTC Description
P2767 INPUT SPEED SENSOR B DTC Description
P2768 INPUT SPEED SENSOR B DTC Description
4 P0741 TORQUE CONVERTER DTC Description
P0746 PC SOLENOID A DTC Description
P0776 PC SOLENOID B DTC Description
P0894 T/M COMPONENT SLIPPING DTC Description
P17F0 CVT JUDDER (T/M INSPECTION) DTC Description
P17F1 CVT JUDDER (C/V INSPECTION) DTC Description
P17F2 CVT JUDDER (T/C INSPECTION) DTC Description
P2813 SELECT SOLENOID DTC Description

*: WhenDTC U0100 and/or U0122 are displayed together with DTC U0300, diagnose first the DTC U0300.

DTC Index

NOTE:

  • If multiple malfunction codes are detected at the same time, check each code according to the “DTC check priority list”. DTC Inspection Priority Chart.

  • The ignition counter is displayed in “FFD”. Refer to CONSULT Function.

DTC*1, *2

Items

(CONSULT screen terms) 		Trip MIL*3 Permanent DTC group*4 Reference
GST

CONSULT

(TRANSMISSION)
P0605 P0605 CONTROL MODULE ROM 1 ON A DTC Description
P062F P062F EEPROM 1 ON A DTC Description
P0705 P0705 T/M RANGE SENSOR A 2 ON B DTC Description
P0706 P0706 T/M RANGE SENSOR A 2 ON B DTC Description
P0711 P0711 FLUID TEMP SENSOR A 2 ON F DTC Description
P0712 P0712 FLUID TEMP SENSOR A 2 ON A DTC Description
P0713 P0713 FLUID TEMP SENSOR A 2 ON A DTC Description
P0715 P0715 INPUT SPEED SENSOR A 2 ON A DTC Description
P0716 P0716 INPUT SPEED SENSOR A 2 ON A DTC Description
P0718 P0718 INPUT SPEED SENSOR A 2 ON A DTC Description
P0717 P0717 INPUT SPEED SENSOR A 2 ON A DTC Description
P0740 P0740 TORQUE CONVERTER 2 ON A DTC Description
P0741 P0741 TORQUE CONVERTER 2 ON C DTC Description
P0742 P0742 TORQUE CONVERTER 1 ON H DTC Description
P0743 P0743 TORQUE CONVERTER 2 ON A DTC Description
P0746 P0746 PC SOLENOID A 2 ON C DTC Description
P0776 P0776 PC SOLENOID B 2 ON E DTC Description
P0778 P0778 PC SOLENOID B 2 ON A DTC Description
P0779 P0779 PC SOLENOID B 2 ON A DTC Description
P0791 P0791 INTERMEDIATE SPEED SENSOR A 2 ON A DTC Description
P0792 P0792 INTERMEDIATE SPEED SENSOR A 2 ON A DTC Description
P0793 P0793 INTERMEDIATE SPEED SENSOR A 2 ON A DTC Description
P0794 P0794 INTERMEDIATE SPEED SENSOR A 2 ON A DTC Description
— P0826 UP/DOWN SHIFT SWITCH 1 — — DTC Description
P0841 P0841 FLUID PRESS SEN/SW A 2 ON E DTC Description
P0847 P0847 FLUID PRESS SEN/SW B 2 ON A DTC Description
P0848 P0848 FLUID PRESS SEN/SW B 2 ON A DTC Description
P084C P084C FLUID PRESS SEN/SW H 2 ON A DTC Description
P084D P084D FLUID PRESS SEN/SW H 2 ON A DTC Description
P0863 P0863 CONTROL UNIT (CAN) 1 ON A DTC Description
P0890 P0890 TCM 1 ON A DTC Description
P0894 P0894 T/M COMPONENT SLIPPING 2 ON G DTC Description
P0962 P0962 PC SOLENOID A 2 ON A DTC Description
P0963 P0963 PC SOLENOID A 2 ON A DTC Description
P0965 P0965 PC SOLENOID B 2 ON E DTC Description
P0966 P0966 PC SOLENOID B 2 ON A DTC Description
P0967 P0967 PC SOLENOID B 2 ON A DTC Description
P1588 P1588 G SENSOR 2 ON A DTC Description
P159C P159C G SENSOR 2 ON A DTC Description
P159D P159D G SENSOR 2 ON A DTC Description
— P17F0 CVT JUDDER (T/M INSPECTION) 1 — — DTC Description
— P17F1 CVT JUDDER (C/V INSPECTION) 1 — — DTC Description
— P17F2 CVT JUDDER (T/C INSPECTION) 1 — — DTC Description
P2758 P2758 TCC PRESSURE CONT SOLENOID 1 ON I DTC Description
P2765 P2765 INPUT SPEED SENSOR B 2 ON A DTC Description
P2766 P2766 INPUT SPEED SENSOR B 2 ON A DTC Description
P2767 P2767 INPUT SPEED SENSOR B 2 ON A DTC Description
P2768 P2768 INPUT SPEED SENSOR B 2 ON A DTC Description
P2813 P2813 SELECT SOLENOID 2 ON A DTC Description
P2814 P2814 SELECT SOLENOID 2 ON A DTC Description
P2815 P2815 SELECT SOLENOID 2 ON A DTC Description
U0073 U0073 COMM BUS A OFF 1 ON A DTC Description
U0100 U0100 LOST COMM (ECM A) 1 ON A DTC Description
— U0102 LOST COMM (TRANSFER) 1 — — DTC Description
— U0121 LOST COMM (ABS) 1 — — DTC Description
U0122 U0122 LOST COMM (BRAKE C/U) 2 ON A DTC Description
— U0140 LOST COMM (BCM) 1 — — DTC Description
— U0141 LOST COMM (BCM A) 1 — — DTC Description
— U0155 LOST COMM (IPC) 1 — — DTC Description
— U0164 LOST COMM (HVAC) 1 — — DTC Description
— U0300 CAN COMM DATA 1 — — DTC Description
— U1000 CAN COMM CIRC 1 — — DTC Description
— U1117 LOST COMM (ABS) 1 — — DTC Description
— U1118 LOST COMM (AV C/U) 1 — — DTC Description

*1: These numbers are specified by SAE J2012/ISO 15031-6.

*2: The DTC number of the 1st trip is the same as the DTC number.

*3: Refer to Malfunction Indicator Lamp (MIL).

*4: Refer to Description.

    Diagnosis System (tcm). Diagnosis Description

    1 Trip Detection Diagnosis and 2 Trip Detection Diagnosis NOTE: “Start the engine and turn OFF the ignition switch after warm-up.” This is defined as 1 trip...

    Basic Inspection

    ..

    Other information:

    Nissan Murano (Z52) 2015-2024 Service Manual: P00fe Evap Control System


    DTC Description This diagnosis detects clogs in the EVAP line between fuel tank and EVAP canister purge volume control solenoid valve.ECM controls EVAP control system as below. ECM monitors EVAP line pressure change to diagnose if there is no clogging between EVAP canister and fuel tank...

    Nissan Murano (Z52) 2015-2024 Owners Manual: Brake fluid


    WARNING Use only new fluid from a sealed container. Old, inferior or contaminated fluid may damage the brake system. The use of improper fluids can damage the brake system and affect the vehicle’s stopping ability. Clean the filler cap before removing...

    Categories

    Seatback pockets

    Nissan Murano. Seatback pockets

    Theremaybe one or two seatback pockets located on the back of the driver and passenger seats. The pockets can be used to store maps.

    WARNING

    read more


    Copyright © 2026 www.nimurano.com
