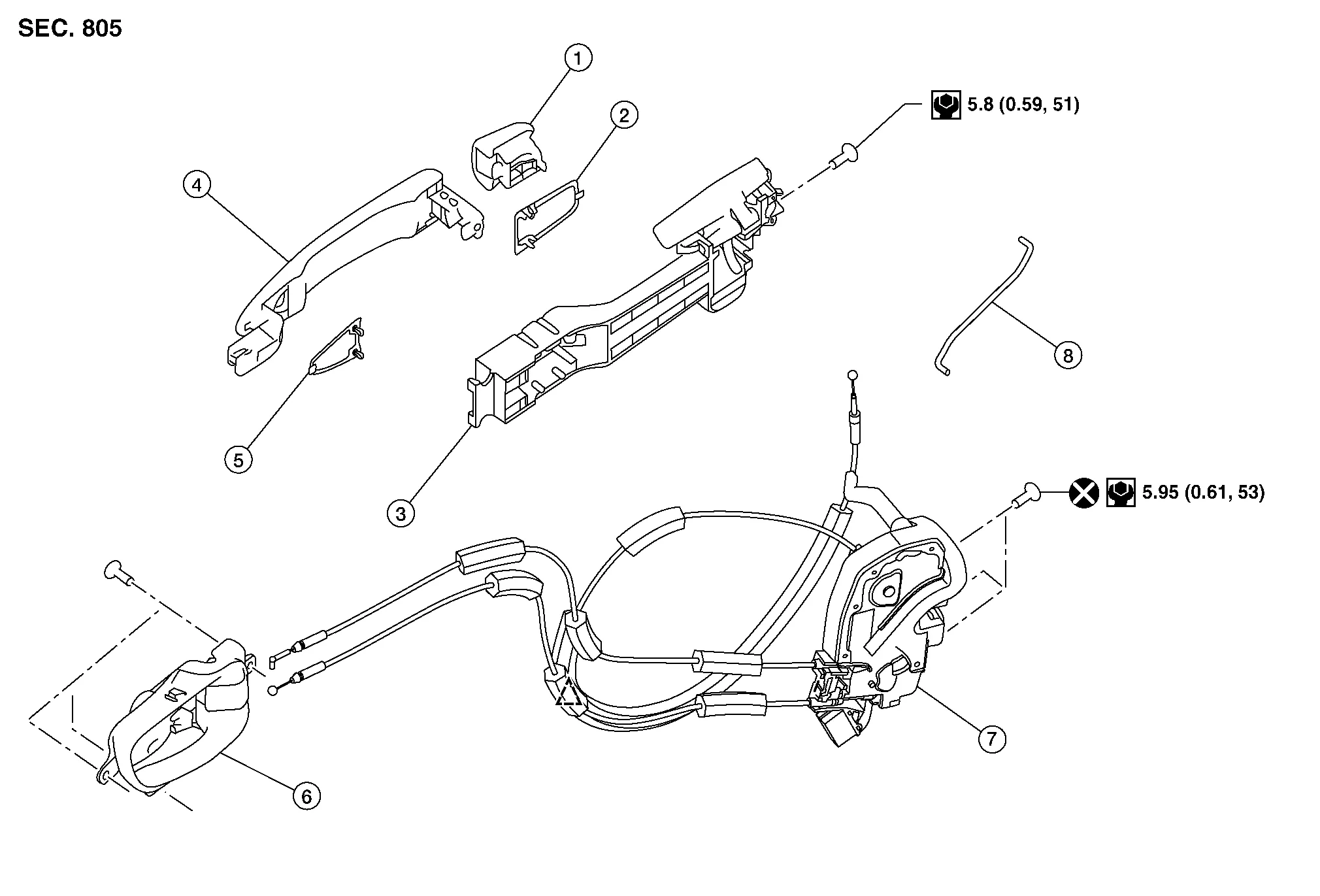

Exploded View

1.	Outside handle escutcheon/door key cylinder (LH only)	2.	Rear gasket	3.	Outside handle bracket
4.	Outside handle	5.	Front gasket	6.	Inside handle
7.	Front door lock	8.	Door key cylinder rod		Clip

Removal and Installation

REMOVAL

Remove front door finisher. Refer to Removal and Installation.

Remove vapor barrier.

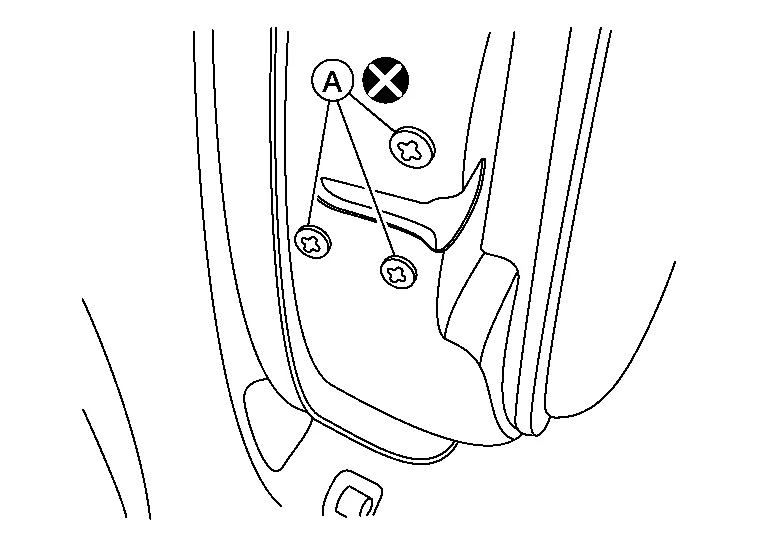

Remove front door lock bolts (A).

CAUTION:

Do not reuse front door lock bolts.

Disconnect door key cylinder rod (LH only) (1) from front door lock (2) (LH only).

Disconnect door lock cables from inside handle and outside handle.

Disconnect the harness connector from the front door lock and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse front door lock bolts.

Tighten bolts to specification. Refer to Exploded View.

After installation, check that door lock cables are properly engaged to inside handle and outside handle bracket.

When installing door key cylinder rod (LH only), be sure to rotate door key cylinder rod holder until a click is felt.

After installation, check door open/close and lock/unlock operation.
