Nissan Murano: Warning Chime System :: System Description / Component Parts. Warning Chime System

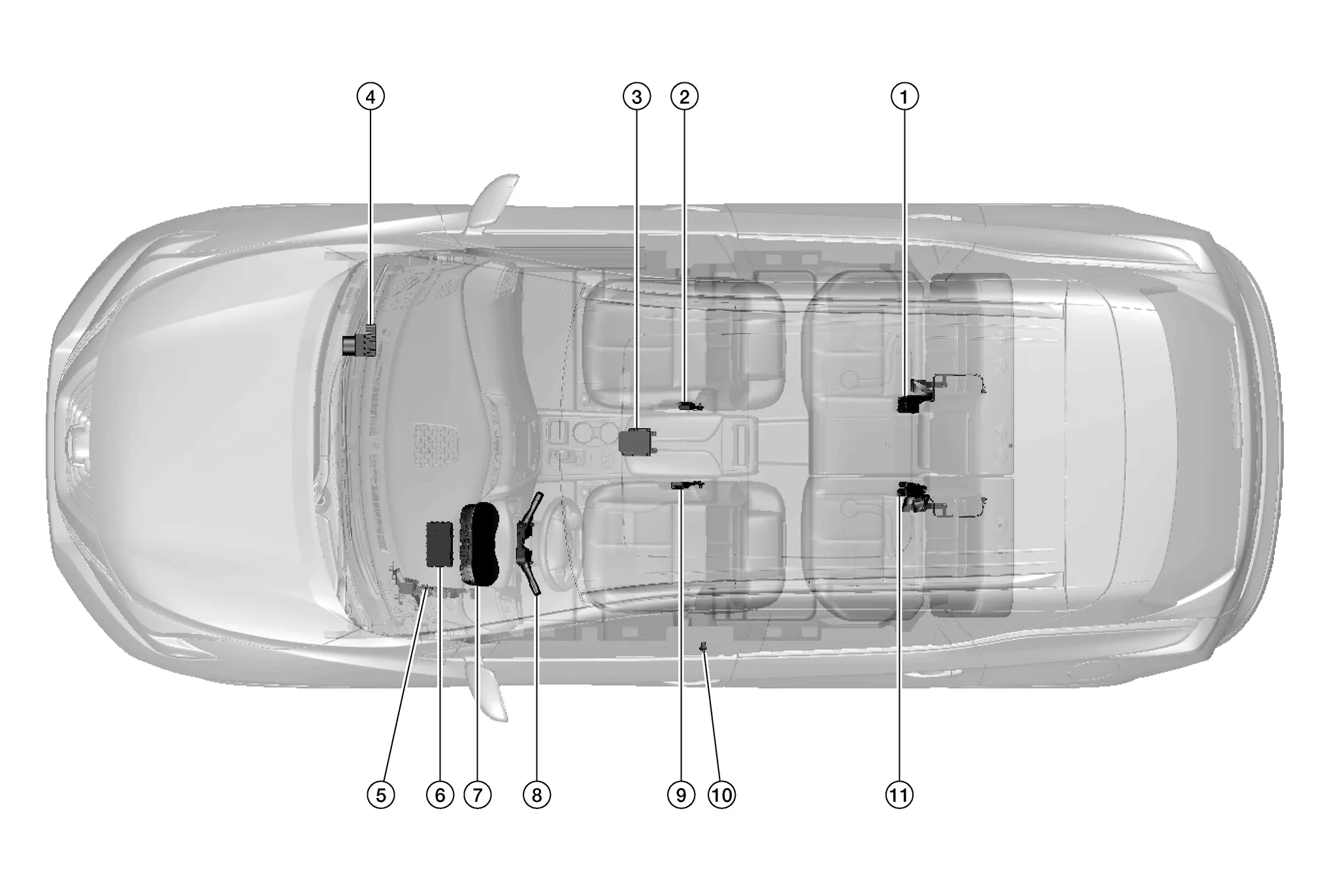

| No. | Component | Function |
|---|---|---|
| 1. | Rear seat belt buckle switch RH & CTR | Transmits the rear seat belt buckle switch RH & CTR signal to the air bag diagnosis sensor unit. |
| 2. | Front seat belt buckle switch RH | Transmits the front seat belt buckle switch RH signal to the combination meter. |
| 3. | Air bag diagnosis sensor unit |
Transmits the rear seat belt buckle switch LH and rear seat belt buckle switch RH & CTR signals to the combination meter via CAN communication. Refer to Component Parts Location for detailed component location. |
| 4. | ABS (Anti-lock Braking System) actuator and electric unit (control unit) |
Transmits the Nissan Murano vehicle speed signal to the combination meter via CAN communication. Refer to Component Parts Location for detailed component location. |
| 5. | Parking brake switch | Transmits the parking brake switch signal to the combination meter. |
| 6. | BCM (Body Control Module) |
Based on the signals received from various units and switches, transmits the buzzer output signal to the combination meter via CAN communication. Refer to Component Parts Location for detailed component location. |
| 7. | Combination meter |
|
| 8. | Combination switch (lighting and turn signal switch) | Transmits the lighting switch signal to the BCM. |
| 9. | Front seat belt buckle switch LH | Transmits the front seat belt buckle switch LH signal to the combination meter. |
| 10. | Front door switch LH | Transmits the front door switch LH signal to the BCM. |
| 11. | Rear seat belt buckle switch LH | Transmits the rear seat belt buckle switch LH signal to the air bag diagnosis sensor unit. |
The combination meter has a built-in buzzer (1) and sounds the following warnings, according to signals from each switch and unit:
-
Light reminder warning
-
Parking brake release warning chime
-
Seat belt warning
System
..
Other information:
