Nissan Murano: System Description / Component Parts. Can Gateway System
Nissan Murano (Z52) 2015-2024 Service Manual / Electrical & Power Control / Lan System :: Can Gateway / System Description / Component Parts. Can Gateway System

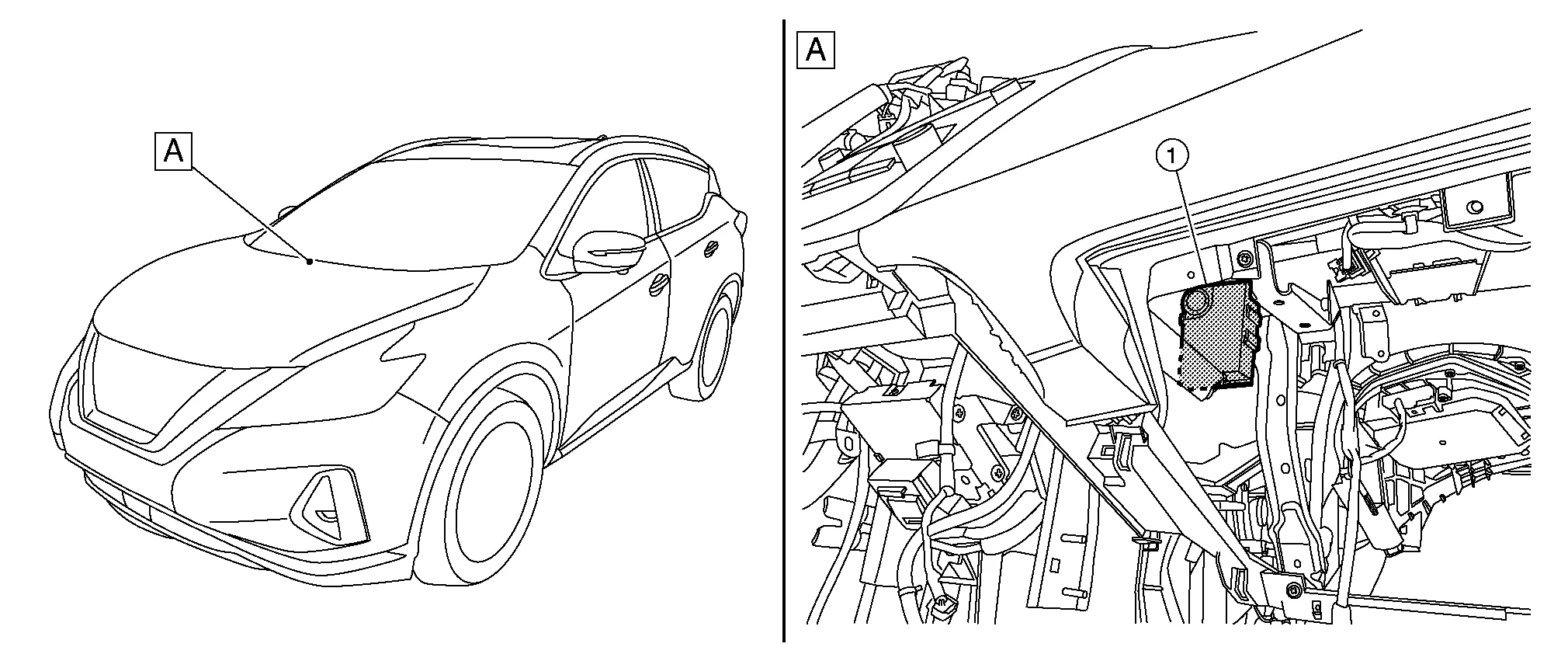

| A. | Left side of glove box | ||||
| No. | Component | Function |
|---|---|---|
| 1. | CAN gateway | CAN gateway transmits CAN signals from each network. |
