Nissan Murano: Component Parts / Body Control System

Nissan Murano (Z52) 2015-2024 Service Manual / Electrical & Power Control / Body Control System :: Bcm / System Description / Component Parts / Body Control System

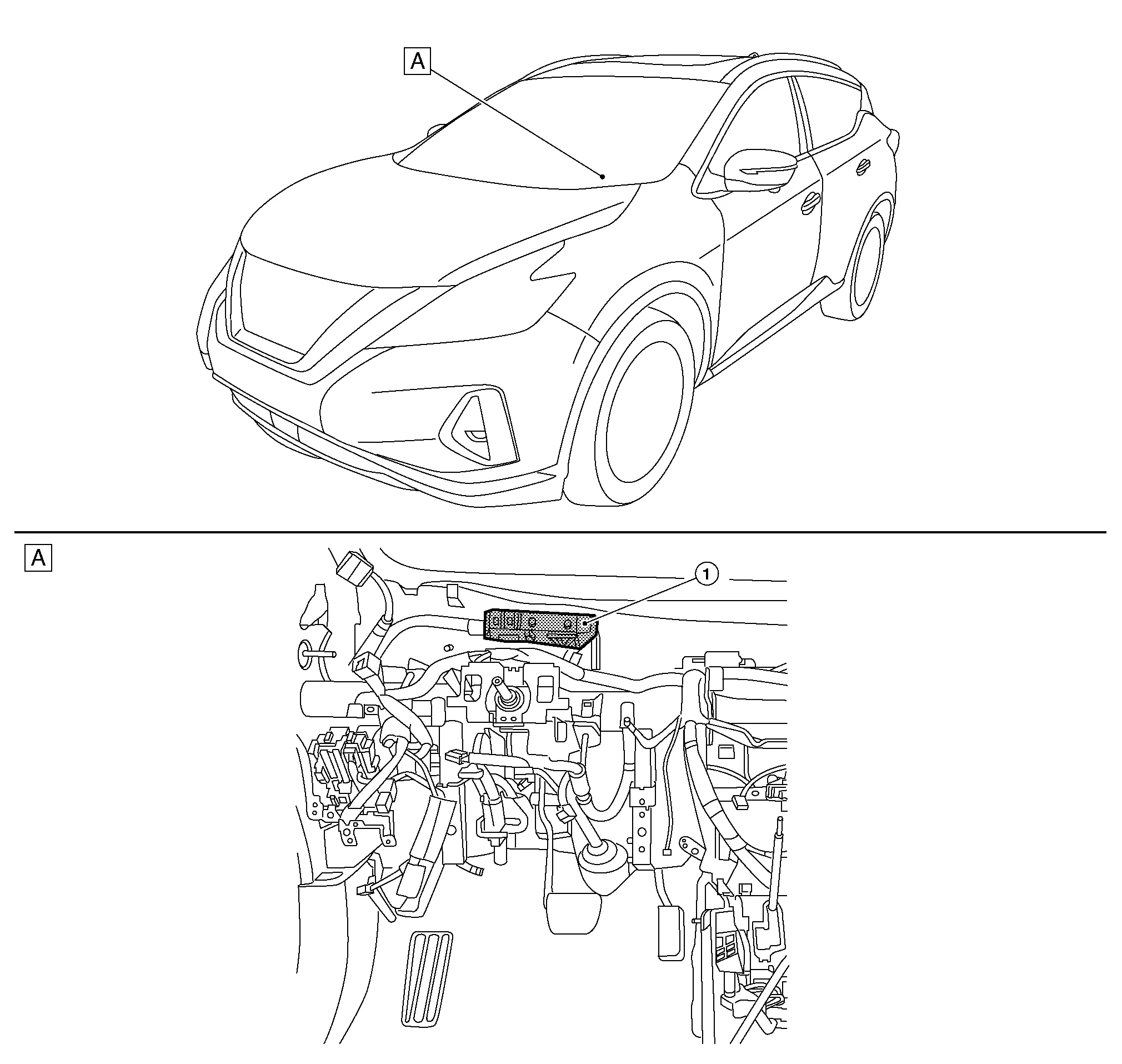

Component Parts Location

A.	LH side of instrument panel (view with instrument panel removed)

No.	Component	Function
1.	BCM (Body Control Module)	Refer to System Description.

Component Parts

Power Consumption Control System

Component Parts Location No. Component Function 1. Combination meter Refer to Combination Meter for detailed component location. 2. IPDM E/R (Intelligent Power Distribution Module Engine Room) Refer to System Description...
