Nissan Murano: Blower Unit / Blower Motor

Nissan Murano (Z52) 2015-2024 Service Manual / Ventilation, Heater & Air Conditioner / Ventilation System :: Removal and Installation / Blower Unit / Blower Motor

Removal and Installation

REMOVAL

Remove the glove box assembly. Refer to Removal and Installation.

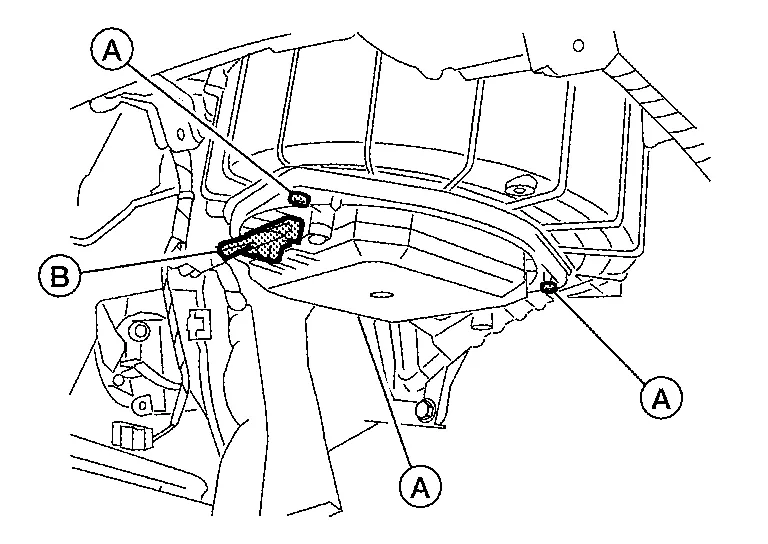

Disconnect the harness connector (B) from the blower motor.

Remove the blower motor screws (A) and the blower motor from the blower unit.

NOTE:

Do not disassemble the blower motor to replace individual components; replace as an assembly.

INSTALLATION

Installation is in the reverse order of removal.
