Nissan Murano: System / Back-Up Lamp System

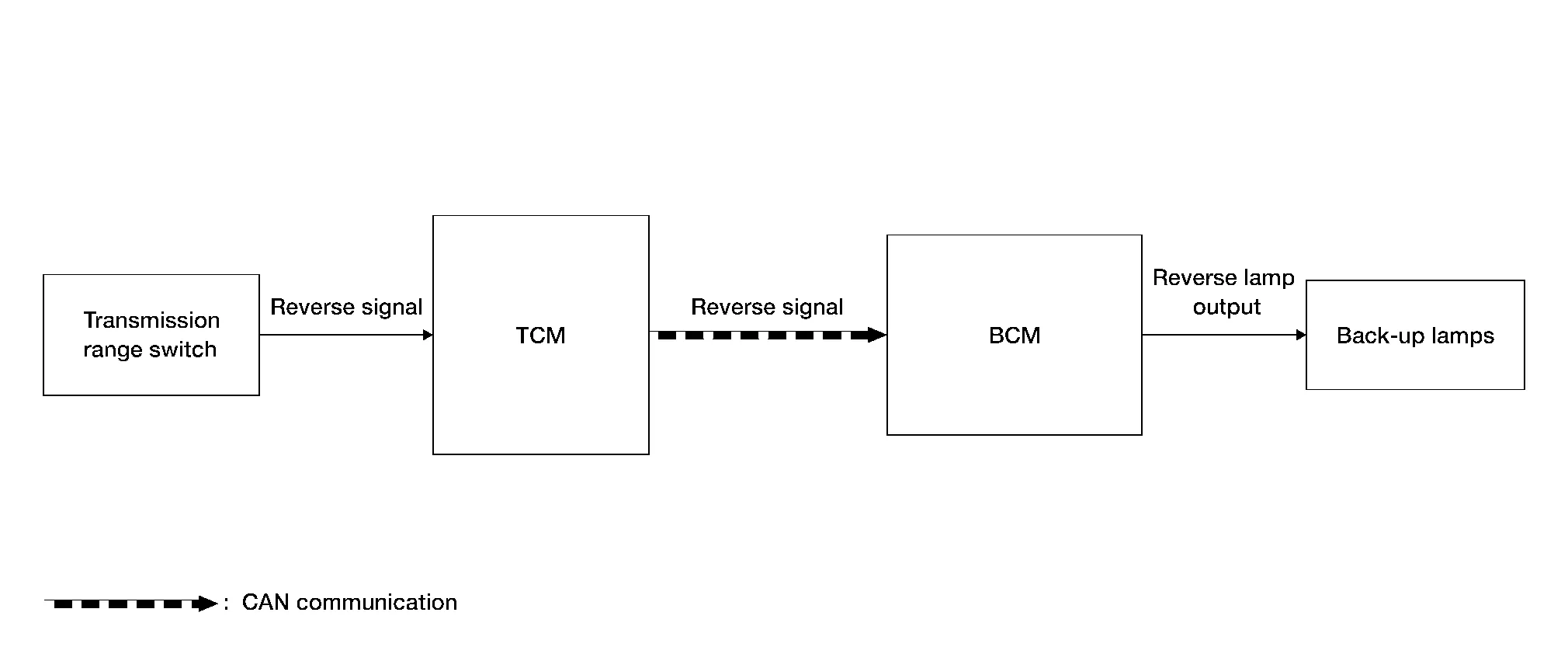

SYSTEM DIAGRAM
Signal transmission function list
| Signal name | Input | Output | Description |
|---|---|---|---|
| Reverse signal | Transmission range switch | TCM | Transmits the reverse signal to the TCM. |
| Reverse signal | TCM | BCM (CAN) | Transmits the reverse signal via CAN communication. |
OUTLINE
Back-up lamp is controlled by back-up lamp control function of TCM.
BACK-UP LAMP OPERATION
-
TCM detects the CVT shift selector position status from transmission range switch.
-
TCM sends request signal via CAN communication and turns the back-up lamps on when back-up lamp conditions are satisfied.
Back-up lamp ON condition:
-
Ignition switch ON
-
CVT shift selector position R
-
Parking, License Plate and Tail Lamp System
System Description
SYSTEM DIAGRAMSignal transmission function list Signal name Input Output Description
Combination switch signal
Combination switch (lighting and turn signal switch)
BCM
Transmits the combination switch signal to the BCM...
Front Fog Lamp System
System Description
SYSTEM DIAGRAMSignal transmission function list Signal name Input Output Description
Combination switch signal
Combination switch (lighting and turn signal switch)
BCM
Transmits the combination switch signal to the BCM...
