Nissan Murano: Automatic Drive Positioner :: Ecu Diagnosis Information / Automatic Drive Positioner Control Unit
Nissan Murano (Z52) 2015-2024 Service Manual / Body Interior / Automatic Drive Positioner :: Ecu Diagnosis Information / Automatic Drive Positioner Control Unit
TERMINAL LAYOUT
PHYSICAL VALUES
|
Terminal No. (wire color) | Description | Condition |
Voltage (Approx.) | |||
|---|---|---|---|---|---|---|
| + | - | Signal name | Input/Output | |||
|
1 (LG) |
Ground | Tilt switch up signal | Input | Tilt switch |
Operate (up) |
0V |
| Other than above | 5V | |||||
|
2 (GR) |
Ground | Select switch RH signal | Input | Select switch position | RH | 0V |
| Neutral or LH | 5V | |||||
|
3 (G) |
Ground | Mirror switch up signal | Input | Mirror switch |
Operated (up) |
0V |
| Other than above | 5V | |||||
|
4 (P) |
Ground | Mirror switch left signal | Input | Mirror switch |
Operated (left) |
0V |
| Other than above | 5V | |||||
|
5 (W) |
Ground | Door mirror sensor RH up/down signal | Input | Door mirror RH position | Change between 3.4V (close to peak) and 0.6V (close to valley) | |
|
6 (R) |
Ground | Door mirror sensor LH up/down signal | Input | Door mirror LH position | Change between 3.4V (close to peak) and 0.6V (close to valley) | |
|
7 (BR) |
Ground | Telescopic switch forward signal | Input | Telescopic switch |
Operate (forward) |
0V |
| Other than above |
5V |
|||||
|
8 (G) |

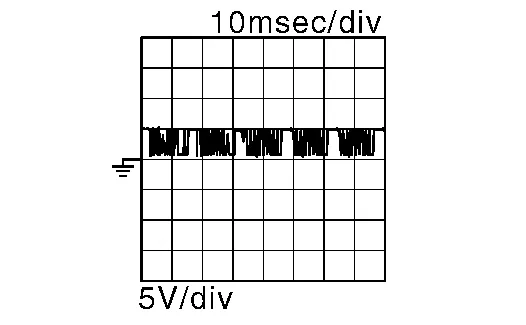

Ground | UART communication (TX/RX) | Output | Ignition switch ON |
|
|
|
10 (BR) |
Ground | Door mirror motor RH up signal | Output | Door mirror RH |
Operate (up) |
Battery voltage |
| Other than above | 0V | |||||
|
11 (G) |
Ground | Door mirror motor RH left signal | Output | Door mirror RH |
Operate (left) |
Battery voltage |
| Other than above | 0V | |||||
|
12 (LG) |
Ground | Door mirror motor LH down signal | Output | Door mirror LH |
Operate (down) |
Battery voltage |
| Other than above | 0V | |||||
| Door mirror motor LH right signal |
Operate (right) |
Battery voltage | ||||
| Other than above | 0V | |||||
|
13 (Y) |
Ground | Tilt switch down signal | Input | Tilt switch |
Operate (down) |
0V |
| Other than above | 5V | |||||
|
14 (P) |
Ground | Select switch LH signal | Input | Select switch position | LH | 0V |
| Neutral or RH | 5V | |||||
|
15 (R) |
Ground | Mirror switch down signal | Input | Mirror switch |
Operate (down) |
0V |
| Other than above | 5V | |||||
|
16 (W) |
Ground | Mirror switch right signal | Input | Mirror switch |
Operate (right) |
0V |
| Other than above | 5V | |||||
|
17 (G) |
Ground | Door mirror sensor RH left/right signal | Input | Door mirror RH position | Change between 3.4V (close to left edge) and 0.6V (close to right edge) | |
|
18 (BG) |
Ground | Door mirror sensor LH left/right signal | Input | Door mirror LH position | Change between 0.6V (close to left edge) and 3.4V (close to right edge) | |
|
19 (L) |
Ground | Telescopic switch backward signal | Input | Telescopic switch |
Operate (backward) |
0V |
| Other than above | 5V | |||||
|
20 (Y) |
Ground | Sensor ground | — | — | 0V | |
|
21 (BG) |
Ground | Door mirror motor sensor power supply | Input | — | 5 V | |
|
22 (SB) |
Ground | Door mirror motor RH down signal | Output | Door mirror (RH) |
Operate (down) |
Battery voltage |
| Other than above | 0V | |||||
| Door mirror motor RH right signal |
Operate (right) |
Battery voltage | ||||
| Other than above | 0V | |||||
|
23 (L) |
Ground | Door mirror motor LH up signal | Output | Door mirror (LH) |
Operate (up) |
Battery voltage |
| Other than above | 0V | |||||
|
24 (BG) |
Ground | Door mirror motor LH left signal | Output | Door mirror (LH) |
Operate (left) |
Battery voltage |
| Other than above | 0V | |||||
|
25 (L) |
Ground | Battery power supply | Input | — | Battery voltage | |
|
26 (V) |
Ground | Telescopic motor backward signal | Output | Steering telescopic |
Operate (backward) |
Battery voltage |
| Other than above | 0V | |||||
|
27 (L) |
Ground | Tilt and telescopic motor sensor power source | — | Battery voltage | ||
|
28 (SB) |
Ground | Tilt motor down signal | Output | Steering tilt |
Operate (down) |
Battery voltage |
| Other than above | 0V | |||||
|
29 (BR) |
Ground | Tilt motor up signal | Output | Steering tilt |
Operate (up) |
Battery voltage |
| Other than above | 0V | |||||
| Telescopic motor forward signal | Steering telescopic |
Operate (forward) |
Battery voltage | |||
| Other than above | 0V | |||||
|
30 (GR) |
Ground | Ground | — | — | 0V | |
Driver Seat Control Unit
Values on the Diagnosis Tool
NOTE:
The following table includes information (items) inapplicable to this Nissan Murano vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items...
