Removal and Installation

REMOVAL

Remove the cluster lid D. Refer to Removal and Installation.

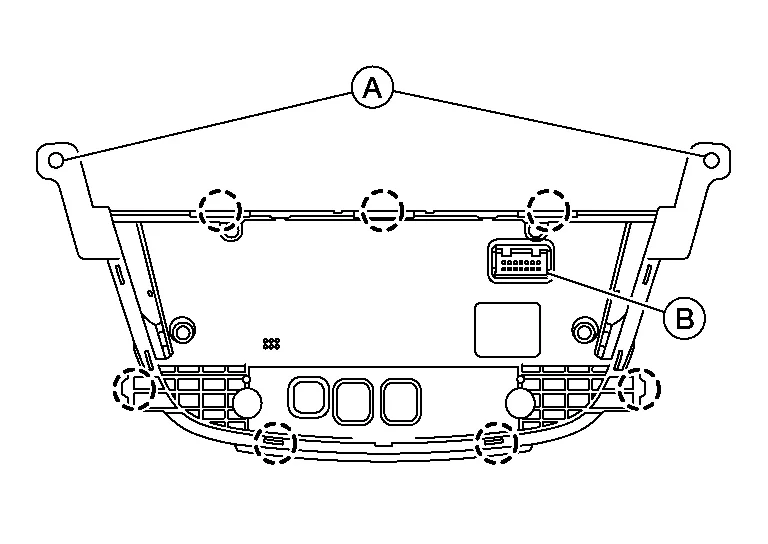

Remove the screws (A) and release pawls.

: Pawl

Disconnect the harness connector (B) from the A/C switch assembly and remove.

INSTALLATION

Installation is in the reverse order of removal.
