Warning lamps/Indicator lamps

Name	Arrangement/Function
Malfunction indicator lamp (MIL)	Regarding the function. Refer to Malfunction Indicator Lamp (MIL) .

Warning/Indicator (On Information Display)

WARNING

Name	Arrangement/Function
Engine oil pressure warning	Regarding the function. Refer to Engine Oil Pressure Warning.
Fuel filler cap warning	Regarding the function. Refer to Fuel Filler Cap Warning.

INDICATOR/INFORMATION

Name	Design	Function
CRUISE indicator SET indicator		System Description

Engine Oil Pressure Warning

DESIGN/PURPOSE

When engine oil pressure is low, the engine oil pressure warning informs the driver of low oil pressure to prevent damage to the engine.

Symbol	Message
	Low oil pressure: See owner′s Manual

BULB CHECK

Not applicable

OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIGNAL

For the operation for CAN communications blackout or abnormal signal reception, refer to Fail-safe.

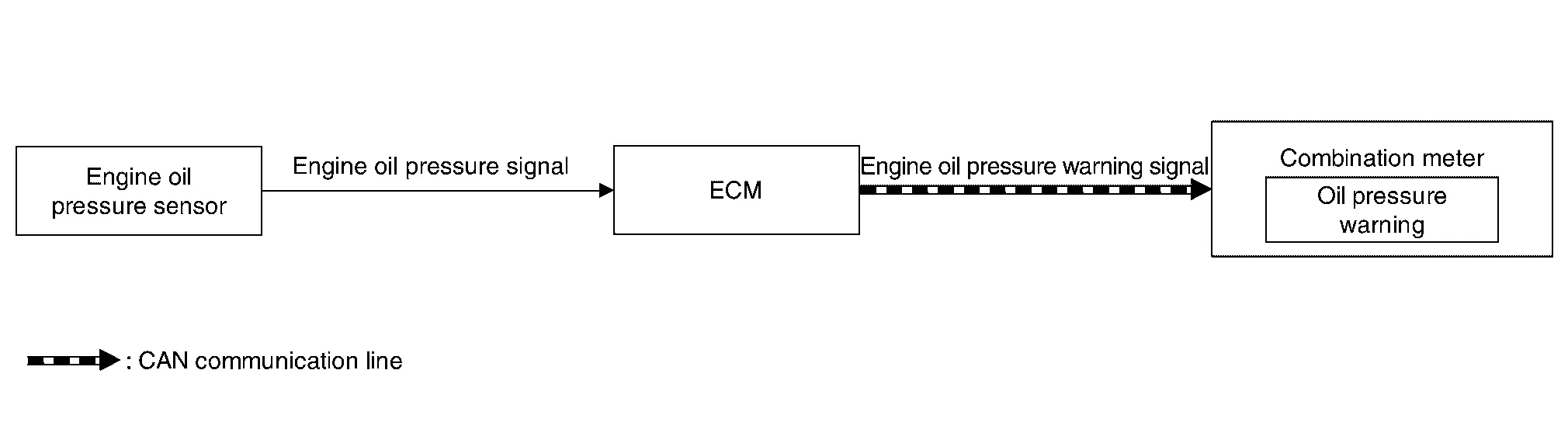

SYSTEM DIAGRAM

SIGNAL PATH

ECM calculates an engine oil pressure according to a signal transmitted from the engine oil pressure sensor. After engine running when the engine oil pressure is low and at least 5 seconds, ECM transmits the engine oil pressure warning signal to combination meter via CAN communication. Then the engine oil pressure warning displays.

LIGHTING CONDITION

When all of the following conditions for at least 5 seconds are satisfied:

Ignition switch: ON
Engine oil pressure is less than specified value.
Engine speed is more than 500 rpm.

SHUTOFF CONDITION

When any of the following conditions is satisfied:

Ignition switch: OFF
Engine oil pressure is the specified value or more.
Engine speed is less than 500 rpm.

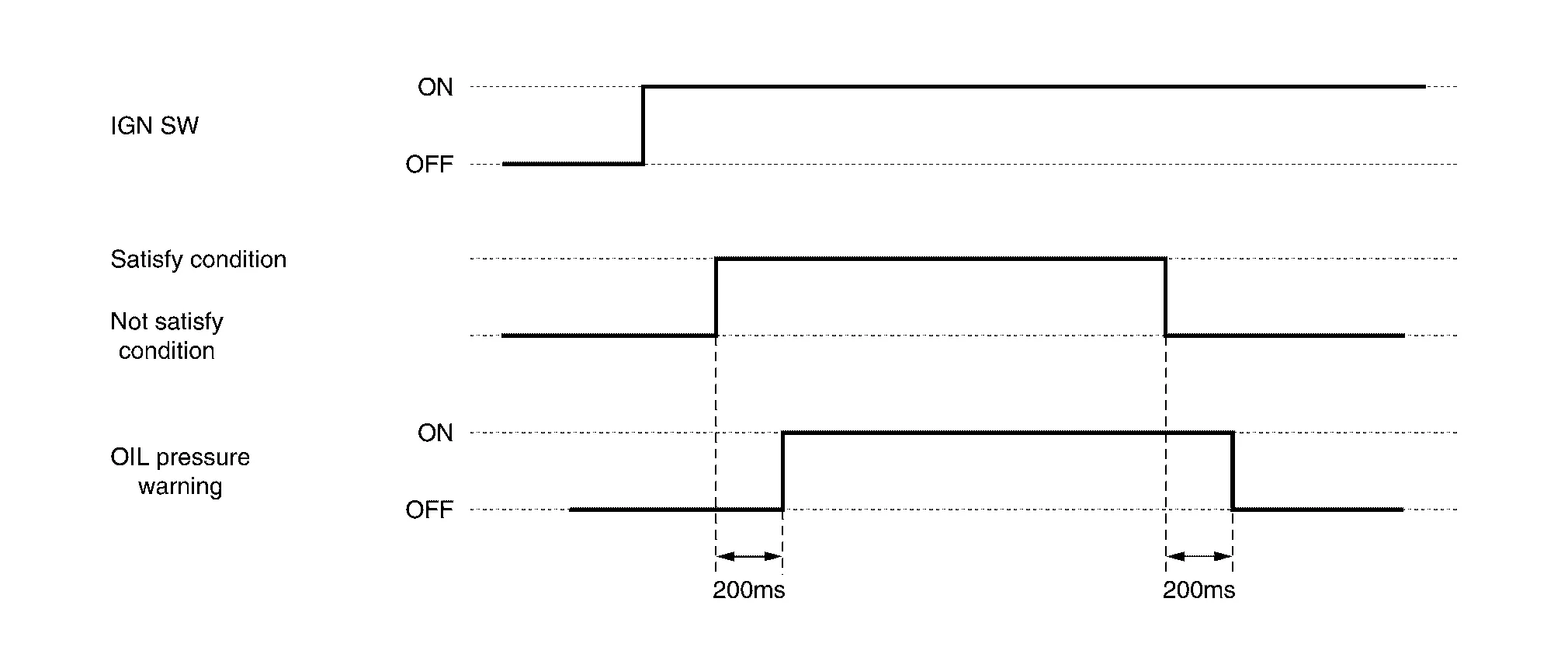

TIMING CHART

Fuel Filler Cap Warning

DESIGN/PURPOSE

Warn the driver that the fuel filler cap is left opened.

Symbol	Message
	Loose Fuel Cap

For detailes, refer to System Description.

Fuel Filler Cap Warning System

System Description SYSTEM DIAGRAMSYSTEM DESCRIPTIONThe fuel filler cap warning system alerts the driver to the prevention of the fuel filler being left uncapped and malfunction occurrences after refueling, by turning ON the fuel filler cap warning display on the combination meter...

Variable Induction Air System

System Description SYSTEM DIAGRAMSYSTEM DESCRIPTIONIn the medium speed range, the ECM sends the ON signal to the VIAS control solenoid valve. This signal introduces the intake manifold vacuum into the power valve actuator and therefore closes the power valve...
