System Description

OUTLINE

Automatic A/C

The ventilation system is controlled by the A/C switch assembly. For details on the automatic air conditioner system, refer to System Description.

AIR FLOW

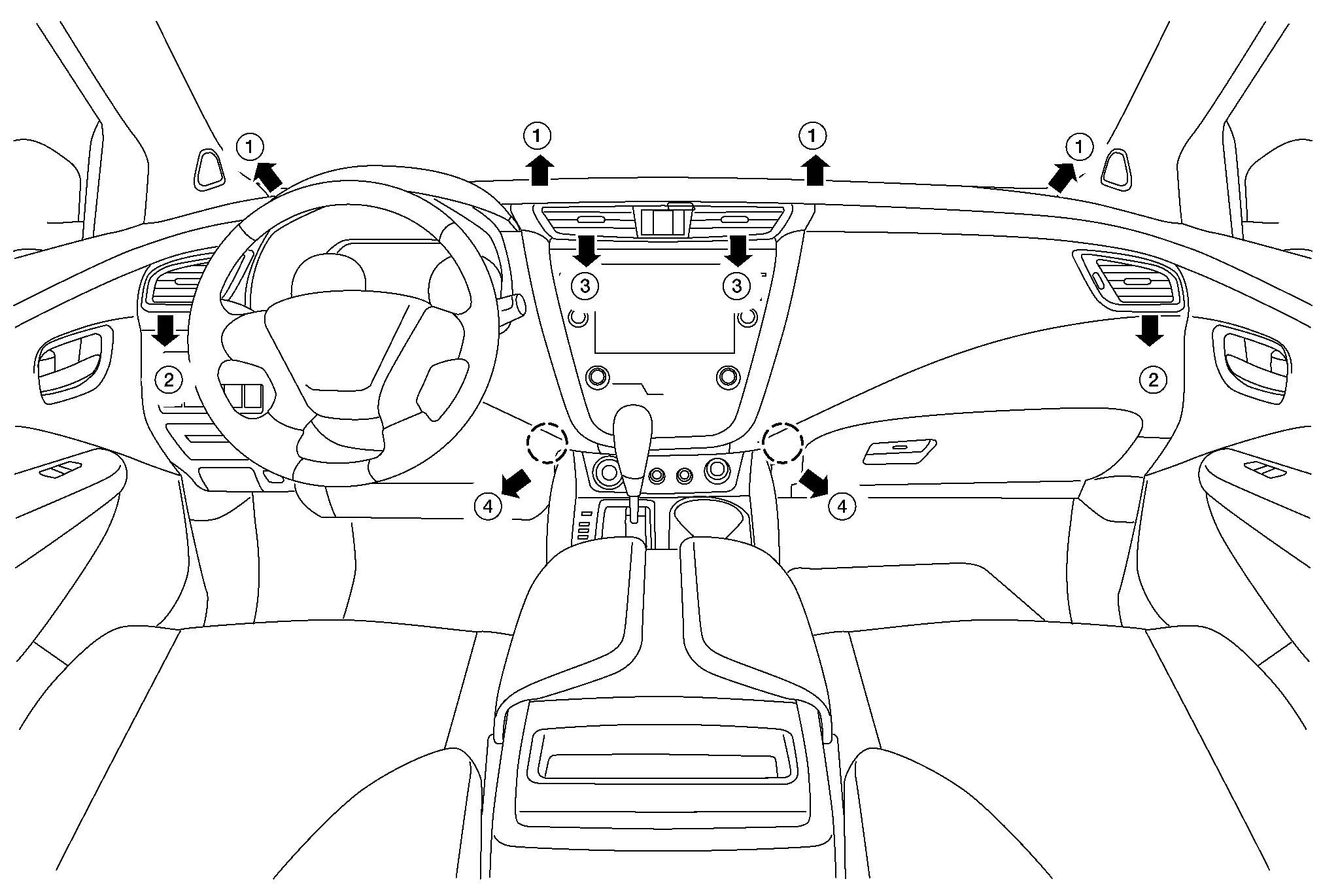

Front

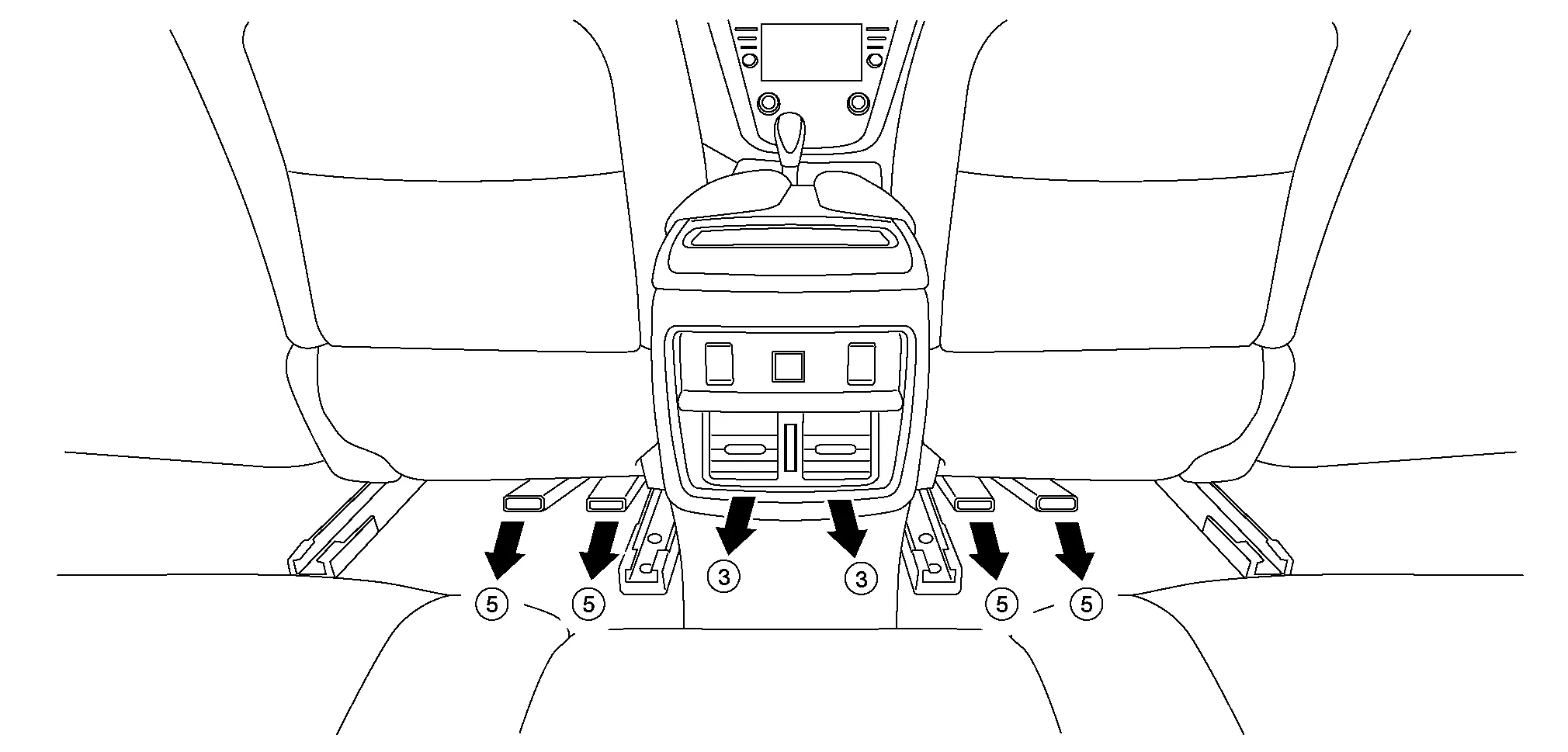

Rear


Discharge air flow
Mode position	Condition			Air outlet / distribution
				DEF (1)	VENT		FOOT
				DEF (1)	Side (2)	Center (3)	Front (4)	Center (5)
	Upper Vent: ON	Temperature control switch	18°C (60°F)	—	×	×	—	—
		Temperature control switch	Other than 18°C (60°F)^*1	—	×	×	—	—
	—			—	×	×	×	×
	—			—	—	×	×	×
	—			×	—	×	×	×
	—			×	—	×	—	—

*1: Air flow is also supplied to front foot until passenger room temperature stabilizes when temperature setting is other than 18°C (60°F). At that time, air flowing is the same as the 18°C (60°F) setting.
