Nissan Murano: Driveline :: Transfer: Ty21c / Preparation. Preparation

Nissan Murano (Z52) 2015-2024 Service Manual / Transmission & Driveline / Driveline :: Transfer: Ty21c / Preparation. Preparation

Special Service Tool

The actual shape of the tools may differ from those illustrated here.

Tool number

(TechMate No.)

Tool name 		Description

—

(J-8092)

Driver handle

Installing drive shaft oil seal

(Use with J-52390)

—

(J-52390)

Transfer case seal installer (1)

Installing drive shaft oil seal

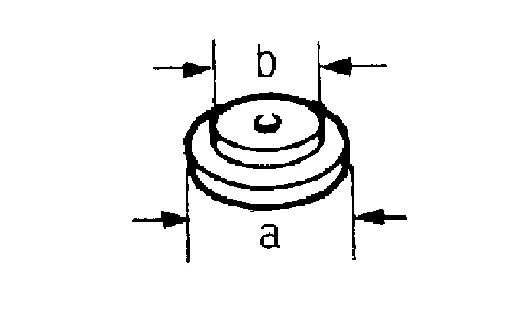

ST33061000

(J-8107-2)

Drift

Removing ring gear bearing (left) inner race (transfer case side)

a: 38 mm (1.50 in) dia.

b: 28.5 mm (1.122 in) dia.

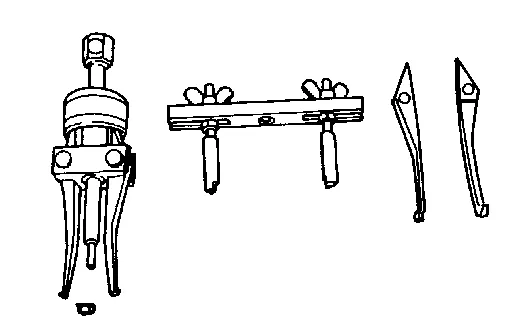

KV381054S0

(J-34286)

Puller

Removing ring gear shaft oil seal

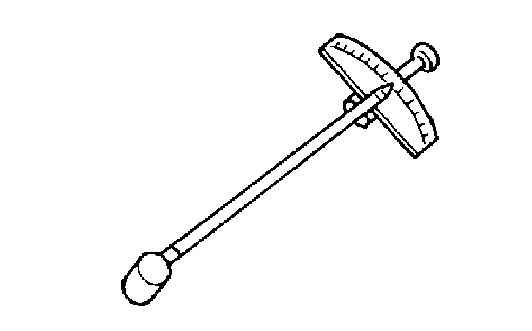

ST3127S000

(J-25765-A)

Preload gauge

Measuring preload torque
Commercial Service Tool
Tool name Description
Oil seal remover

Removing oil seal
Slide hammer

Removing drive shaft oil seal
Power tool

Loosening nuts, screws and bolts

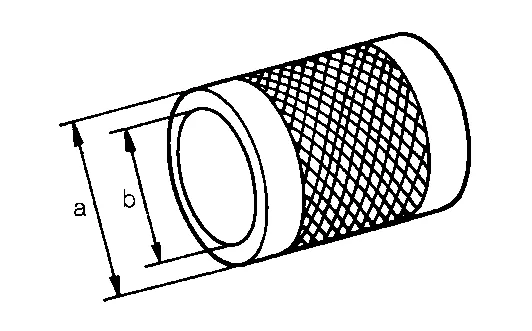

Drift

Removing gear ring bearing inner race (adapter case side)

a: 52 mm (2.05 in) dia.

b: 44 mm (1.73 in) dia.
Drift

Installing side oil seal (installing transfer case oil seal)

a: 56.5 mm (2.224 in) dia.

b: 48 mm (1.89 in) dia.
Drift

Installing ring gear shaft oil seal

a: 44 mm (1.73 in) dia.

b: 33 mm (1.3 in) dia.

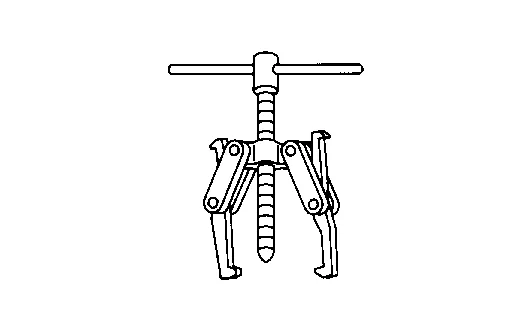

Puller

Removing ring gear bearing (left) inner race (transfer case side)
Drift

Installing oil seal (installing pinion bearing seal)

a: 70 mm (2.76 in) dia.

b: 60 mm (2.36 in) dia.
Drift

Installing side oil seal (installing transfer cover oil seal)

a: 78 mm (3.07 in) dia.

b: 68 mm (2.68 in) dia.
Bearing separator

  • Removing drive pinion

  • Removing ring gear bearing (left) inner race (transfer cover side)
Drift

Installing ring gear bearing (left) inner race (transfer case side)

a: 58 mm (2.28 in) dia.

b: 55 mm (2.17 in) dia.
Drift

Installing ring gear bearing (right) inner race (transfer cover side)

a: 62 mm (2.44 in) dia.

b: 58 mm (2.28 in) dia.

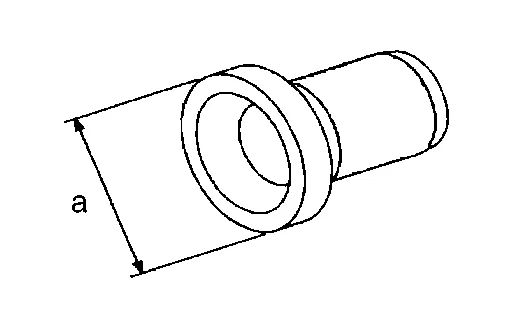

Drift

Installing ring gear bearing (left) outer race (transfer case side)

a: 73.5 mm (2.894 in) dia.
Drift

Installing ring gear bearing (right) outer race (transfer cover side)

a: 87 mm (3.43 in) dia.
Drift

Removing drive pinion

a: 20 mm (0.79 in) dia.
Drift

Installing pinion bearing

a: 50 mm (1.97 in) dia.

b: 41 mm (1.61 in) dia.
Drift

Installing companion flange

a: 40 mm (1.57 in) dia.

b: 25 mm (0.98 in) dia.
Lubricant or/and Sealant
Item Use
Red lead or equivalent Checking tooth contact

    Precaution. Precautions

    Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions...
