Nissan Murano: Security Control System :: Removal and Installation / Nats Antenna Amp.
Exploded View

| 1. |
NATS antenna amp. |
2. |
Push-button ignition switch |
|
|
Removal and Installation
REMOVAL
Remove the shift selector finisher. Refer to Exploded View.

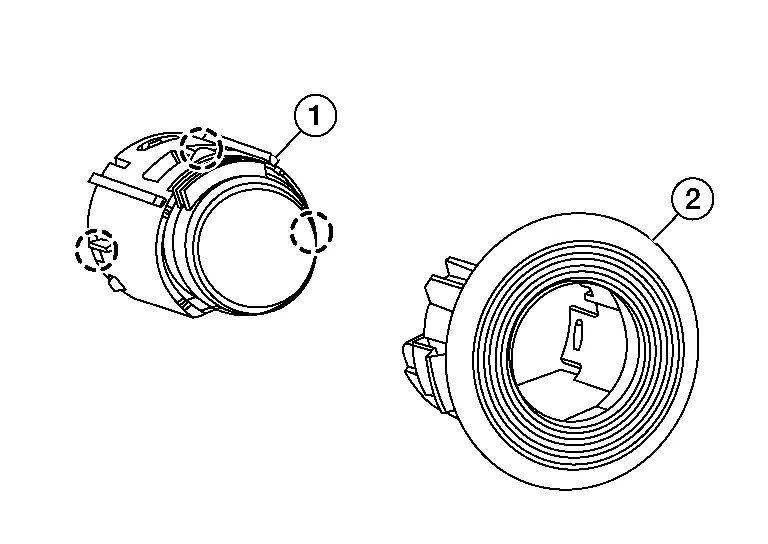

Release the pawl on each side of NATS antenna amp (1) using suitable tool and remove from the shift selector finisher (2).

: Pawl
Release the pawl on each side and remove the NATS antenna amp (2) from the push-button ignition switch (1).

: Pawl
INSTALLATION
Installation is in the reverse order of removal.
