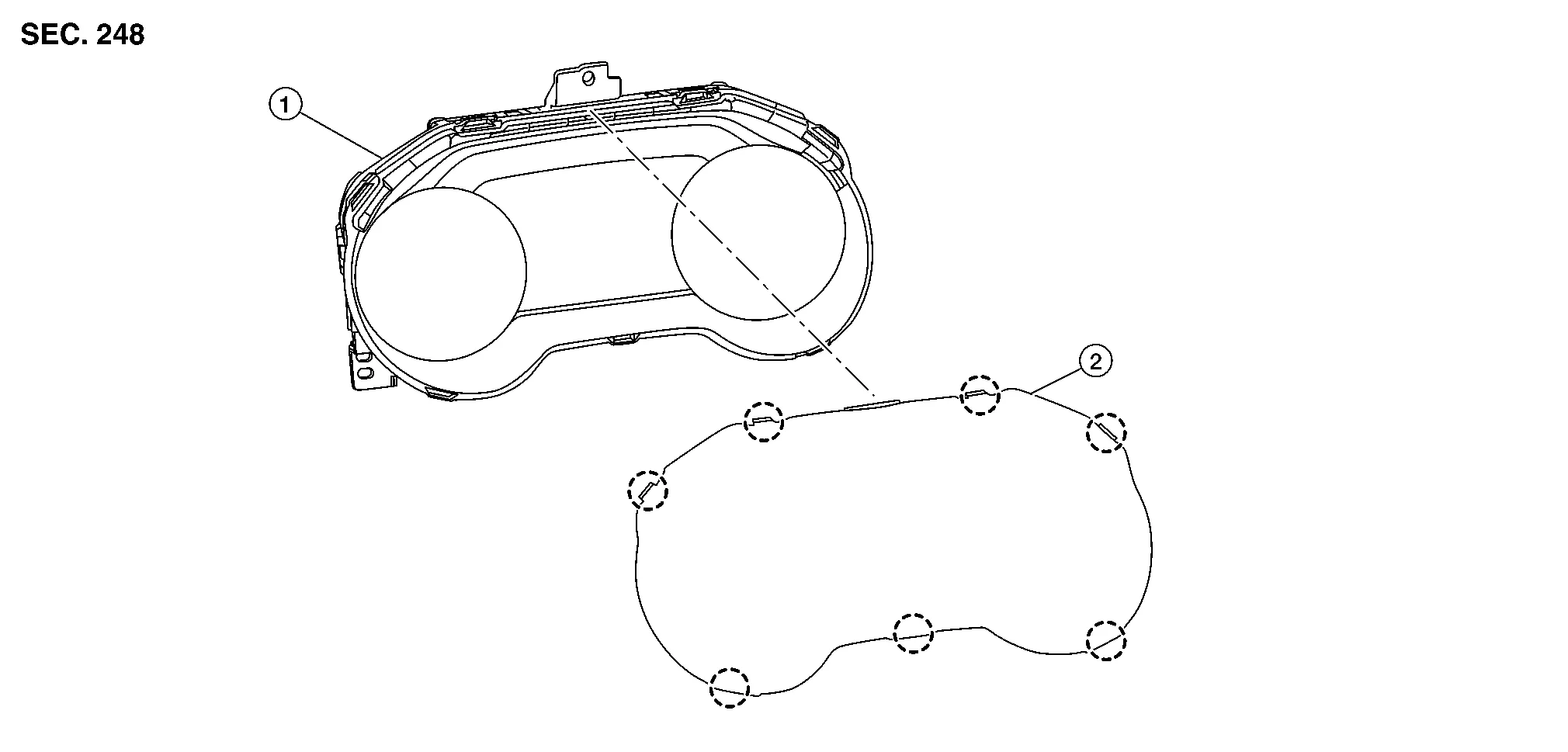

Exploded View

Combination meter

Front cover

Pawl

Disassembly and Assembly

CAUTION:

Do not touch the inside of front cover, pointer, the display and the printed area of the dial during the work.

Keep away from magnetic sources.

Do not damage the combination meter lens.

DISASSEMBLY

Remove the combination meter. Refer to Removal and Installation.

Release the pawls using a suitable tool and remove the front cover.

ASSEMBLY

Assembly is in the reverse order of disassembly.
