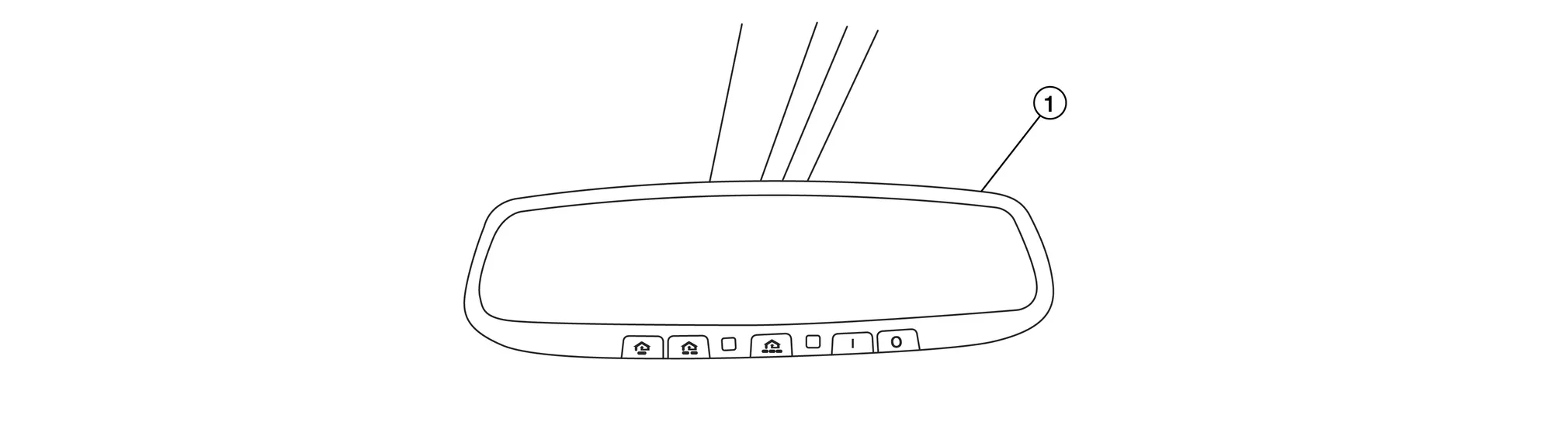

Nissan Murano: Component Parts / Integrated Homelink Transceiver

Intelligent Key System

Component Parts Location A. Front of center console B. View with instrument panel removed C. View with front bumper fascia removed. D. View of left side of engine compartment E...

Automatic Back Door System

Component Parts Location A. View of LH side of instrument panel B. View with luggage side lower finisher removed C. View of back door open D...

Other information:

Nissan Murano (Z52) 2015-2024 Service Manual: A/c Auto Amp.

Values on the Diagnosis Tool NOTE: The following table includes information (items) inapplicable to this Nissan Murano vehicle: For information (items) applicable to this vehicle, refer to CONSULT display items. Monitor item Condition Value/Status AMB TEMP SEN Ignition switch ON — Equivalent to ambient temperature IN-VEH TEMP Ignition switch ON — Equivalent to in-Nissan Murano vehicle temperature (front side) INT TEMP SEN Ignition switch ON — Equivalent to front evaporator fin temperature SUNLOAD SEN Ignition switch ON — Equivalent to sunload (driver side) AMB SEN CAL Ignition switch ON — Equivalent to ambient temperature IN-VEH CAL Ignition switch ON — Equivalent to in-Nissan Murano vehicle temperature (front side) INT TEMP CAL Ignition switch ON — Equivalent to front evaporator fin temperature SUNL SEN CAL Ignition switch ON — Equivalent to sunload (driver side) COMP REQ SIG Engine: Run at idle after warming up A/C switch: ON (Compressor operation status ON) On A/C switch: OFF (Compressor operation status OFF) Off FAN REQ SIG Engine: Run at idle after warming up Front blower motor: ON On Front blower motor: OFF Off FAN DUTY Engine: Run at idle after warming up Front blower motor: ON 25 – 81 Front blower motor: OFF 0 XM Ignition switch ON — Value according to target air flow temperature (driver side) PA TARGET A/TEMP Ignition switch ON — Value according to target air flow temperature (passenger side) ENG COOL TEMP Ignition switch ON — Equivalent to engine coolant temperature Nissan Murano Vehicle SPEED Driving — Equivalent to speedometer reading PASS SUNL CAL Ignition switch ON — Equivalent to sunload (passenger side) PASS SUNL SEN CAL Ignition switch ON — Equivalent to sunload (passenger side) Reference Value TERMINAL LAYOUTPHYSICAL VALUES Terminal No...

Nissan Murano (Z52) 2015-2024 Service Manual: Sensor Power Supply2 Circuit

Diagnosis Procedure ECM supplies a voltage of 5 V to some of the sensors systematically divided into 2 groups, respectively. Accordingly, when a short circuit develops in a sensor power source, a malfunction may occur simultaneously in the sensors belonging to the same group as the short-circuited sensor...
