Nissan Murano: Removal and Installation / Front Camera
REMOVAL
Remove front grille. Refer to Removal and Installation.
Disconnect the harness connector from the front camera.

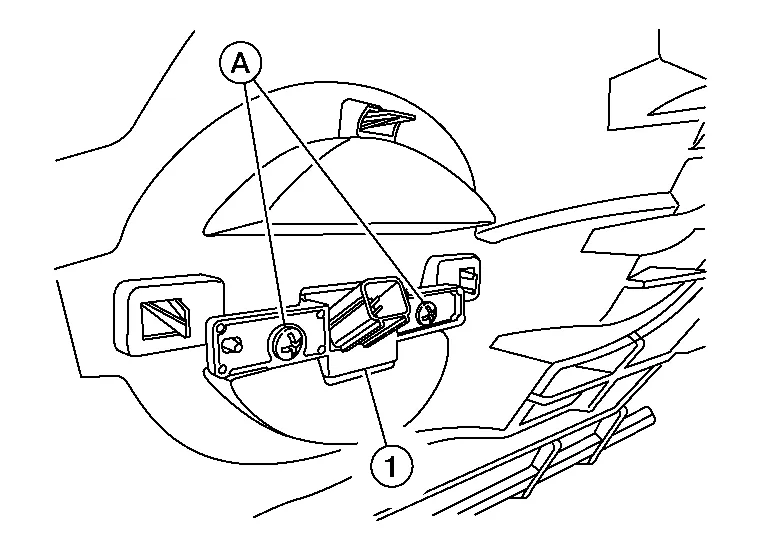

Remove screws (A) and remove front camera (1).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Perform the calibration and perform the writing to the around view monitor control unit when removing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.) and replacing the around view monitor control unit. Refer to Description.
Around View Monitor Control Unit
Exploded View
1.
Instrument panel assembly
2.
Around view monitor control unit
Removal and Installation
REMOVALNOTE:
Before replacing around view monitor control unit, perform “Before Replace ECU” of “Read / Write Configuration” to save or print current Nissan Murano vehicle specification...
