Nissan Murano: Door & Lock :: Dtc/circuit Diagnosis / Door Request Switch

Nissan Murano (Z52) 2015-2024 Service Manual / Body Exterior, Doors, Roof & Vehicle Security / Door & Lock :: Dtc/circuit Diagnosis / Door Request Switch

Component Function Check

CHECK FUNCTION

CONSULT

  1. Select “REQ SW-DR” or “REQ SW-AS” in “Data Monitor” mode of “BCM(INTELLIGENT KEY)”.

  2. Check that the function operates normally according to the following conditions:

Monitor Item Condition Status
REQ SW -DR LH door request switch Pressed ON
Released OFF
REQ SW -AS RH door request switch Pressed ON
Released OFF

Is the inspection result normal?

YES>>

Front door request switch is OK.

NO>>

Refer to Diagnosis Procedure.

Diagnosis Procedure

CHECK DOOR REQUEST SWITCH INPUT SIGNAL

  1. Ignition switch OFF.

  2. Disconnect malfunctioning front door request switch connector.

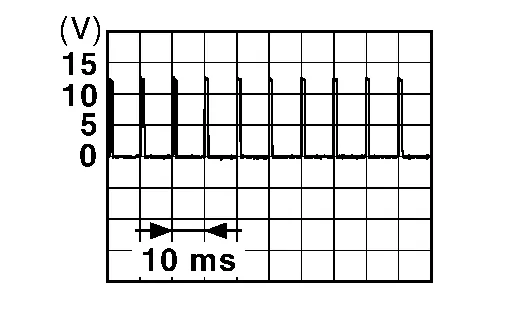

  3. Check signal between malfunctioning front door request switch harness connector and ground using oscilloscope.

    (+) (–)

    Signal

    (Reference value)
    Front door request switch
    Connector Terminal
    LH D15 3 Ground

    RH D115

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

GO TO 2.

CHECK DOOR REQUEST SWITCH CIRCUIT

  1. Disconnect BCM connector.

  2. Check continuity between malfunctioning front door request switch harness connector and BCM harness connector.

    Front door request switch BCM Continuity
    Connector Terminal Connector Terminal
    LH D15 3 M19 71 Yes
    RH D115 72

  3. Check continuity between malfunctioning front door request switch harness connector and ground.

    Front door request switch Ground Continuity
    Connector Terminal
    LH D15 3 No
    RH D115

Is the inspection result normal?

YES>>

Replace BCM. Refer to Removal and Installation.

NO>>

Repair or replace harness.

CHECK DOOR REQUEST SWITCH GROUND CIRCUIT

Check continuity between malfunctioning front door request switch harness connector and ground.

Front door request switch Ground Continuity
Connector Terminal
LH D15 4 Yes
RH D115

Is the inspection result normal?

YES>>

GO TO 4.

NO>>

Repair or replace harness.

CHECK DOOR REQUEST SWITCH

Refer to Component Inspection.

Is the inspection result normal?

YES>>

GO TO 5.

NO>>

Replace malfunctioning front outside handle assembly. Refer to Removal and Installation (Driver side) or Removal and Installation (Passenger side).

CHECK INTERMITTENT INCIDENT

Refer to Intermittent Incident.

>>

Inspection End.

Component Inspection

CHECK DOOR REQUEST SWITCH

  1. Ignition switch OFF.

  2. Disconnect front door request switch connector.

  3. Check continuity between front door request switch terminals.

Front door request switch Condition Continuity
Terminal
3 4 Door request switch Pressed Yes
Released No

Is the inspection result normal?

YES>>

Inspection End.

NO>>

Replace malfunctioning front door request switch. Refer to Removal and Installation (Driver side) or Removal and Installation (Passenger side).

    Remote Keyless Entry Receiver

    Component Function Check CHECK FUNCTION CONSULT Select “RKE OPE COUN1” in “Data Monitor” mode of “BCM(INTELLIGENT KEY)”. Check that the function operates normally according to the following conditions: Monitor Item Condition RKE OPE COUN1 Checks whether value changes when operating Intelligent Key...

    Back Door Request Switch

    Component Function Check CHECK FUNCTION CONSULT Select “REQ SW-BD/TR” in “Data Monitor” mode of “BCM(INTELLIGENT KEY)”. Check that the function operates normally according to the following conditions: Monitor Item Condition Status REQ SW-BD/TR Back door request switch Pressed On Released Off Is the inspection result normal? YES>> Back door request switch is OK...
