Nissan Murano: Heater & Air Conditioning System :: Removal and Installation / Condenser Pipe Assembly
REMOVAL
Discharge the refrigerant. Refer to Recycle Refrigerant.
Remove the core support cover. Refer to Exploded View.
Remove the front grille. Refer to Removal and Installation.
Remove the bolt that retains the condenser pipe assembly to the condenser.

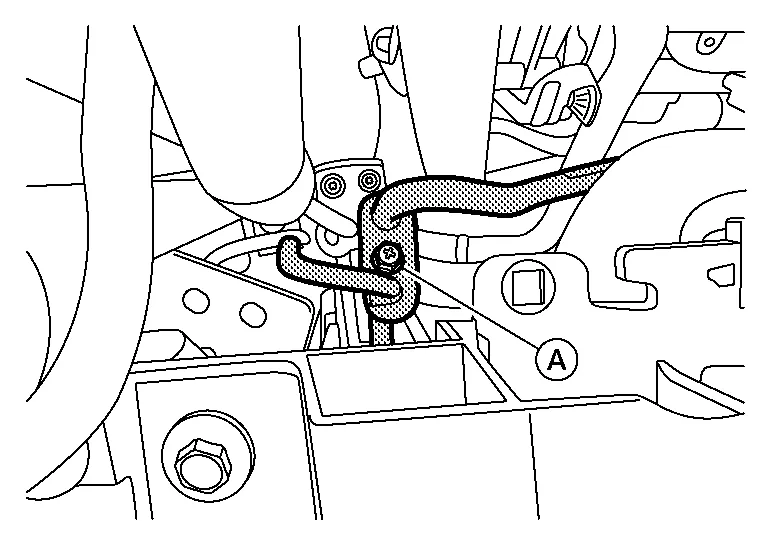

Remove the bolt (A) that retains the condenser pipe assembly to the high-pressure flexible hose and high-pressure pipe.
Remove the condenser pipe assembly.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
-
Do not reuse O-rings.
-
Apply A/C oil to the O-rings of the condenser pipe assembly for installation.
-
After charging the refrigerant, check for leaks. Refer to Leak Test.
Condenser
Exploded View
1.
Condenser upper bracket (RH)
2.
Condenser pipe assembly
3.
Refrigerant pressure sensor
4.
Condenser lower bracket (RH)
5...
