Nissan Murano: Power Window Control System :: System Description / Component Parts. Power Window System

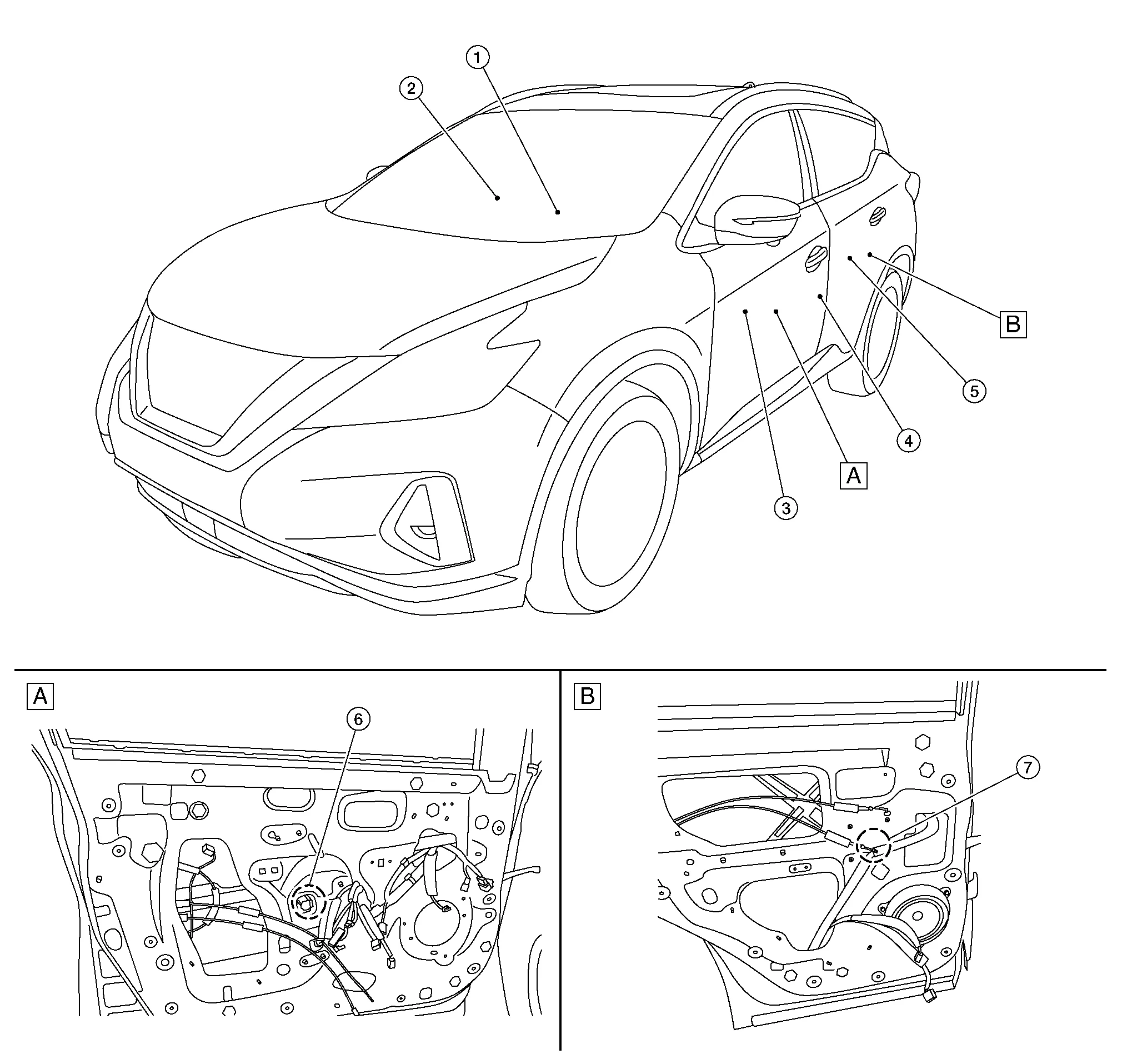

| A. | View with front door finisher removed | B. | View with rear door finisher removed |
| No. | Component | Function |
|---|---|---|
| 1. | BCM (Body Control Module) |
|

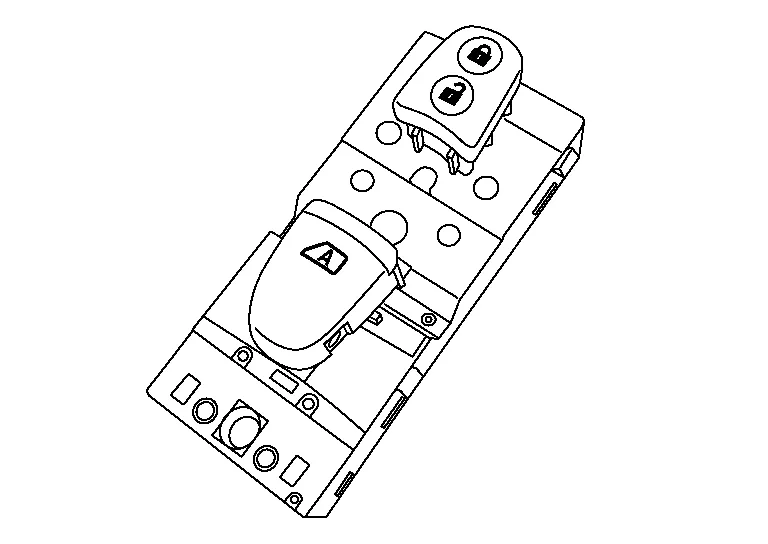

| 2. | Power window and door lock/unlock switch RH | Refer to Power Window and Door Lock/Unlock Switch RH. |

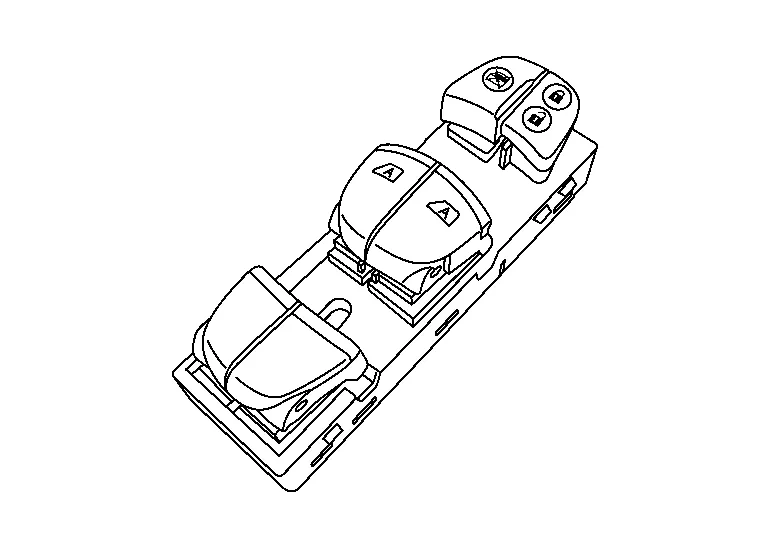

| 3. | Main power window and door lock/unlock switch | Refer to Main Power Window and Door Lock/Unlock Switch. |
| 4. | Front door switch LH (RH similar) | Detects door open/close condition and transmits to BCM. Refer to Front Door Switch. |

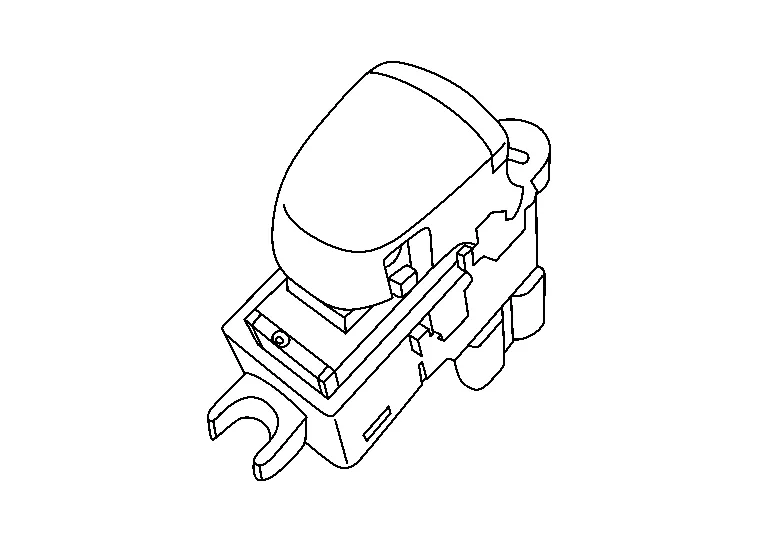

| 5. | Rear power window switch LH (RH similar) | Refer to Rear Power Window Switch. |

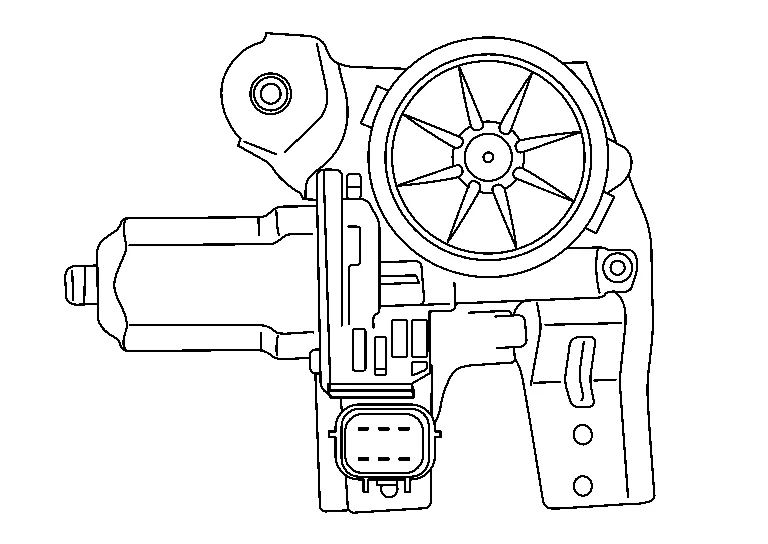

| 6. | Front power window motor LH (RH similar) | Refer to Power Window Motor. |
| 7. | Rear power window motor LH (RH similar) | Refer to Power Window Motor. |
-
Main power window and door lock/unlock switch controls all power windows.
-
Main power window and door lock/unlock switch integrates UP/DOWN switch, power window lock switch, and door lock/unlock switch.
-
Main power window and door lock/unlock switch controls power window lock function, AUTO UP/DOWN function.
-
Receives encoder pulse signal and then controls anti-pinch system.
-
Power window and door lock/unlock switch RH transmits AUTO UP/DOWN signal to front power window motor RH.
-
Receives AUTO UP/DOWN signal from BCM and then transmits to front power window motor RH.
-
Receives encoder pulse signal and then controls anti-pinch system.
-
Each power window switch transmits UP/DOWN signal to each motor.
-
Each power window switch transmits UP/DOWN signal from main power window and door lock/unlock switch to each motor.
-
Integrates the encoder for front power windows.
-
Starts operation according to signals from each power window switch.
-
Transmits each power window motor rotation as a pulse signal to each power window switch.
System
System Description
SYSTEM DIAGRAMINPUT/OUTPUT SIGNAL CHART Item Input signal to main power window and door lock/unlock switch Main power window and door lock/unlock switch function Actuator
Encoder
Encoder pulse signal
Power window control
Front power window motor
Main power window and door lock/unlock switch
Front power window motor LH UP/DOWN signal
Power window and door lock/unlock switch RH
Front power window motor RH UP/DOWN signal
BCM
RAP signal
Rear power window switch
Rear power window motor UP/DOWN signal
Rear power window motor
POWER WINDOW OPERATION
Power window system is activated by the power window switches when ignition switch ON position or during the retained power operation after ignition switch OFF...
