Nissan Murano: Exterior :: System Description / Component Parts. Active Grille Shutter System

Nissan Murano (Z52) 2015-2024 Service Manual / Body Exterior, Doors, Roof & Vehicle Security / Exterior :: System Description / Component Parts. Active Grille Shutter System

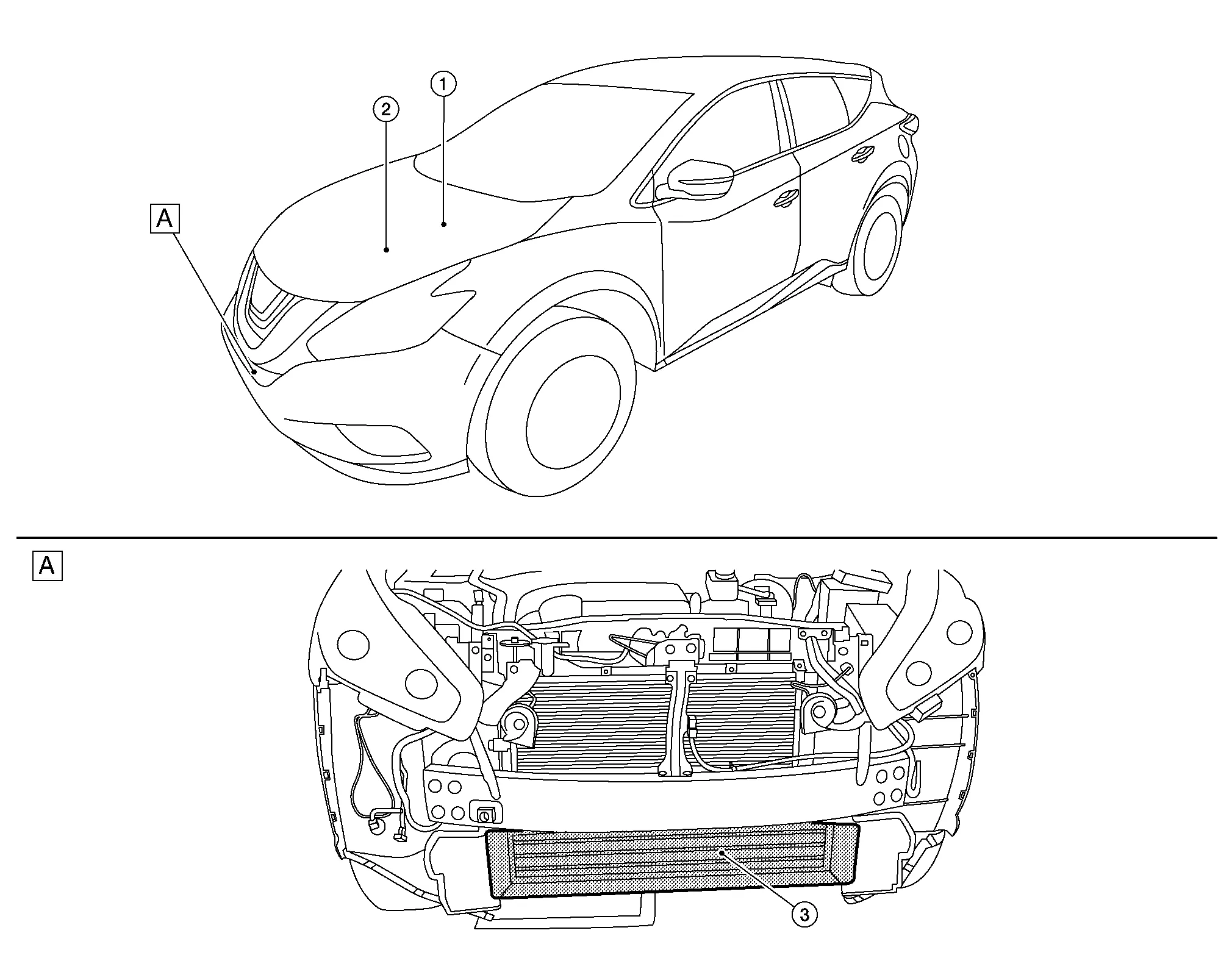

Component Parts Location

Behind front bumper fascia

No.	Component	Reference
1.	IPDM E/R (Intelligent Power Distribution Module Engine Room)	Refer to Component Parts Location for detailed component location.
2.	ECM (Engine Control Module )	Refer to ECM for detailed component location.
3.	Active grille shutter	Refer to Active grille shutter.

For the engine related component parts, refer to Component Parts Location.

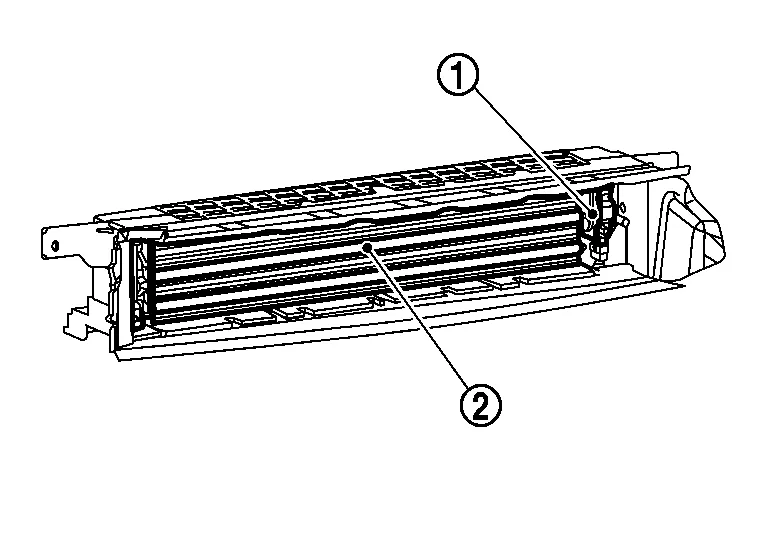

Active grille shutter

Active grille shutter is located at front bumper lower opening, and according to the signal from ECM it operates actuator (1) to perform open/close movement of flap (2) to control the amount of air flow taken into engine compartment.
