Nissan Murano: Power Supply, Ground & Circuit Elements :: Removal and Installation / Battery Terminal with Fusible Link

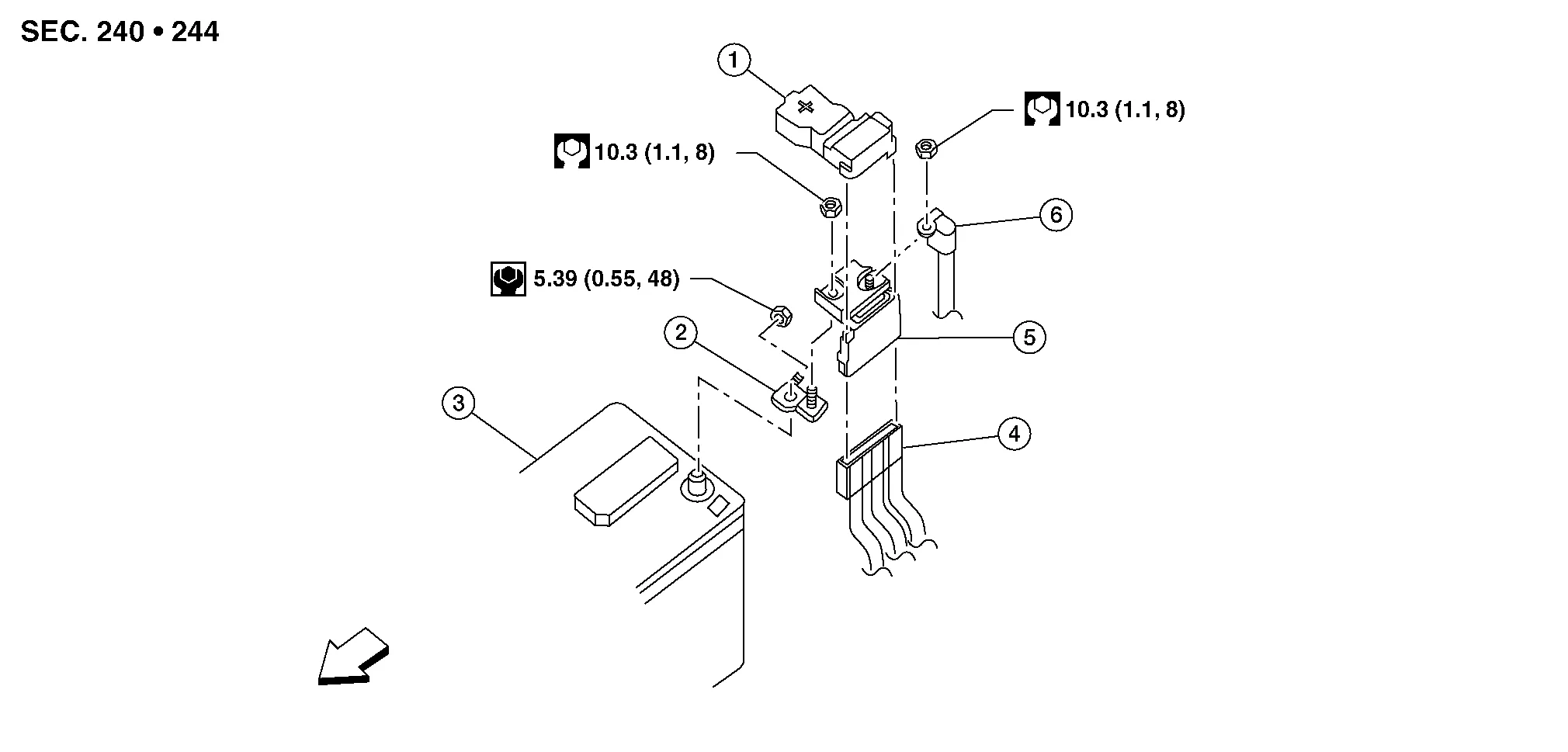

| 1. | Cover | 2. | Positive terminal | 3. | Battery |
| 4. | Harness connectors | 5. | Fusible link box (battery) | 6. | Positive cable |
 |
Front |
REMOVAL
Disconnect negative battery terminal.
CAUTION:
To prevent damage to the parts, disconnect the negative terminal from the battery negative post first.
Remove the cover of the battery positive terminal and disconnect the positive battery terminal.
Disconnect the positive cable from the fusible link box (battery).
Disconnect harness connectors from the fusible link box (battery).
Separate positive terminal from fusible link box (battery) and remove.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
-
To prevent damage to the parts, connect the positive terminal to the battery positive post first.
-
After connecting the positive and negative terminals to securely supply battery voltage, ensure that the positive and negative terminals are tightly clamped to battery positive and negative posts for good contact.
-
To securely supply battery voltage, check the positive and negative terminals for poor connection caused by corrosion.
Reset electronic systems as necessary. Refer to Special Repair Requirement.
Battery Tray
Exploded View
1.
Battery frame
2.
Battery rods
3.
Battery
4.
Battery cover
5.
Battery tray liner
6.
Battery tray
7.
Battery tray support
Front
Removal and Installation
REMOVALRemove the battery...
