Nissan Murano: Heater & Air Conditioning Control System :: Dtc/circuit Diagnosis / B2667 Pass Sunload Sensor
DTC DETECTION LOGIC
NOTE:
-
If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to DTC Description (U1000) or DTC Description (U1010).
-
Sunload sensor may register a malfunction when indoors, at dusk, or at other times when light is insufficient. When performing the diagnosis indoors, use a lamp (60 W or more) that is pointed at the sunload sensor.
| DTC No. |
CONSULT screen terms (Trouble diagnosis content) | DTC detection condition | |
|---|---|---|---|
| B2667 |
PASS SUNLOAD SENSOR (SHORT) (Sunload sensor) |
Diagnosis condition | When ignition switch is ON. |
| Signal (terminal) | - | ||
| Threshold | Detected calorie at sunload sensor (passenger side) 2832 W/m2 (2436 kcal/m2·h) or more. | ||
| Diagnosis delay time | - | ||
POSSIBLE CAUSE
-
Sunload sensor
-
A/C auto amp.
-
Harness and connector (The sensor circuit is open or shorted.)
FAIL-SAFE
—
PERFORM DTC CONFIRMATION PROCEDURE
CONSULT
-
Ignition switch ON.
-
Select “Self Diagnostic Result” mode of “HVAC”.
-
Check DTC.
Is DTC detected?
YES>>Refer to DTC Diagnosis Procedure.
NO>>Inspection End.
CHECK SUNLOAD SENSOR POWER SUPPLY
-
Ignition switch OFF.
-
Disconnect sunload sensor connector.
-
Ignition switch ON.
-
Check voltage between sunload sensor harness connector and ground.
+ − Voltage
(Approx.)Sunload sensor Connector Terminal M226 1 Ground 5 V
Is the inspection result normal?
YES>>GO TO 2.
NO>>GO TO 4.
CHECK SUNLOAD SENSOR GROUND CIRCUIT
-
Ignition switch OFF.
-
Check continuity between sunload sensor harness connector and ground.
Sunload sensor — Continuity Connector Terminal M226 3 Ground Yes
Is the inspection result normal?
YES>>GO TO 3.
NO>>Repair harness or connector.
CHECK SUNLOAD SENSOR
Check sunload sensor. Refer to Component Inspection.
Is the inspection result normal?
YES>>Replace A/C auto amp. Refer to Removal and Installation.
NO>>Replace sunload sensor. Refer to Removal and Installation.
CHECK SUNLOAD SENSOR POWER SUPPLY CIRCUIT FOR OPEN
-
Ignition switch OFF.
-
Disconnect A/C auto amp. connector.
-
Check continuity between sunload sensor harness connector and A/C auto amp. harness connector.
Sunload sensor A/C auto amp. Continuity Connector Terminal Connector Terminal M226 1 M50 36 Yes
Is the inspection result normal?
YES>>GO TO 5.
NO>>Repair harness or connector.
CHECK SUNLOAD SENSOR POWER SUPPLY CIRCUIT FOR GROUND SHORT
Check continuity between sunload sensor harness connector and ground.
| Sunload sensor | — | Continuity | |
|---|---|---|---|
| Connector | Terminal | ||
| M226 | 1 | Ground | No |
Is the inspection result normal?
YES>>GO TO 6.
NO>>Repair harness or connector.
CHECK SUNLOAD SENSOR POWER SUPPLY CIRCUIT FOR POWER SHORT
-
Ignition switch ON.
-
Check voltage between sunload sensor harness connector and ground.
+ − Voltage
(Approx.)Sunload sensor Connector Terminal M226 1 Ground 0 V
Is the inspection result normal?
YES>>Replace A/C auto amp. Refer to Removal and Installation.
NO>>Repair harness or connector.
CHECK SUNLOAD SENSOR
-
Ignition switch ON.
-

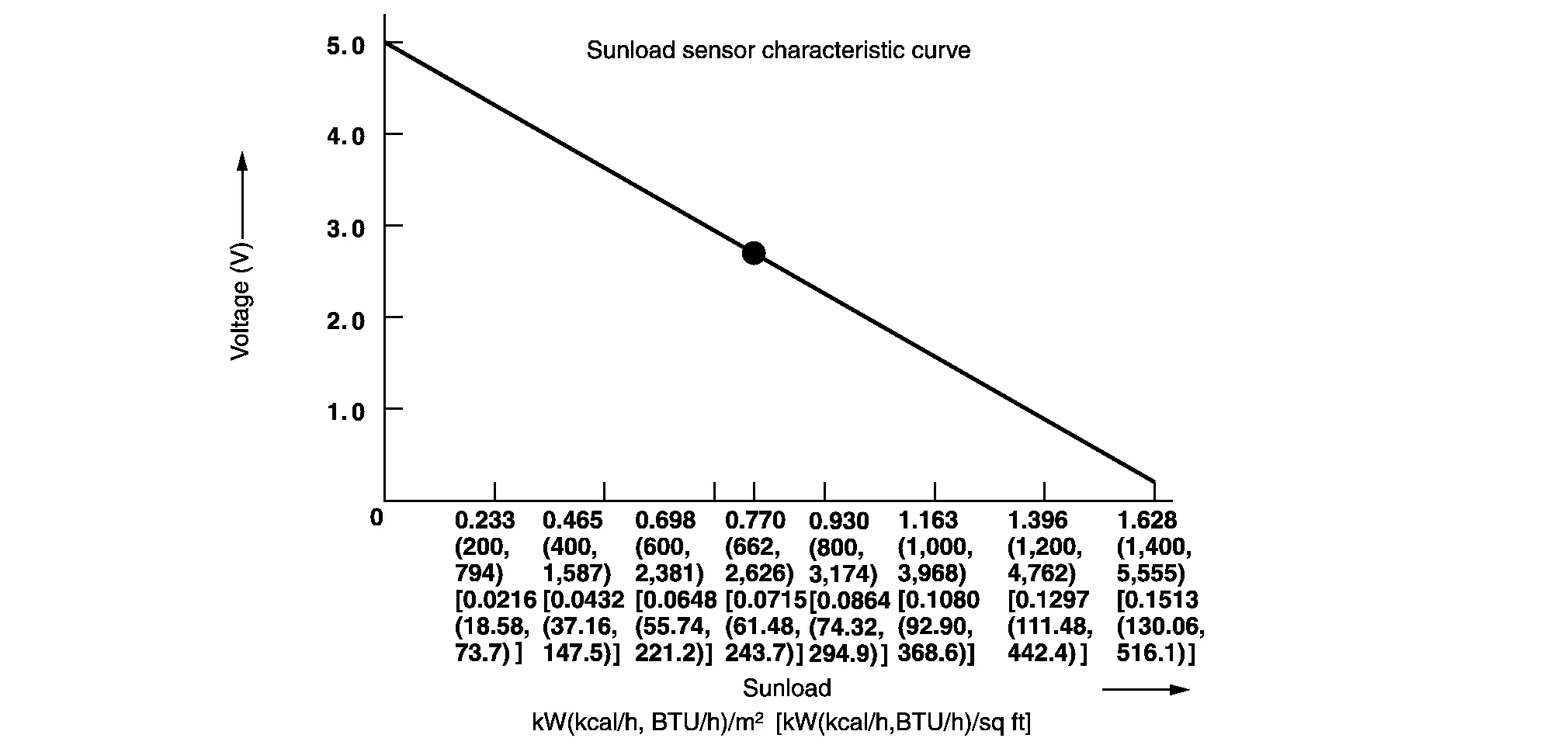

Check input voltage from sunload sensor between A/C auto amp. harness connector and ground. Refer to applicable table for normal value.
+ − A/C auto amp. Connector Terminal M50 36 Ground
NOTE:
-
When checking indoors, use a lamp of approximately 60 W. Move the lamp towards and away from the sensor to check.
-
The sunload amount produced by direct sunshine in fair weather is equivalent to approximately 0.770 kW/m2 (662 kcal/m2·h).
-
Is the inspection result normal?
YES>>Inspection End.
NO>>Replace sunload sensor. Refer to Removal and Installation.
