Nissan Murano: Removal and Installation / Awd Control Unit

Nissan Murano (Z52) 2015-2024 Service Manual / Transmission & Driveline / Driveline :: Transfer: Ty21c / Removal and Installation / Awd Control Unit

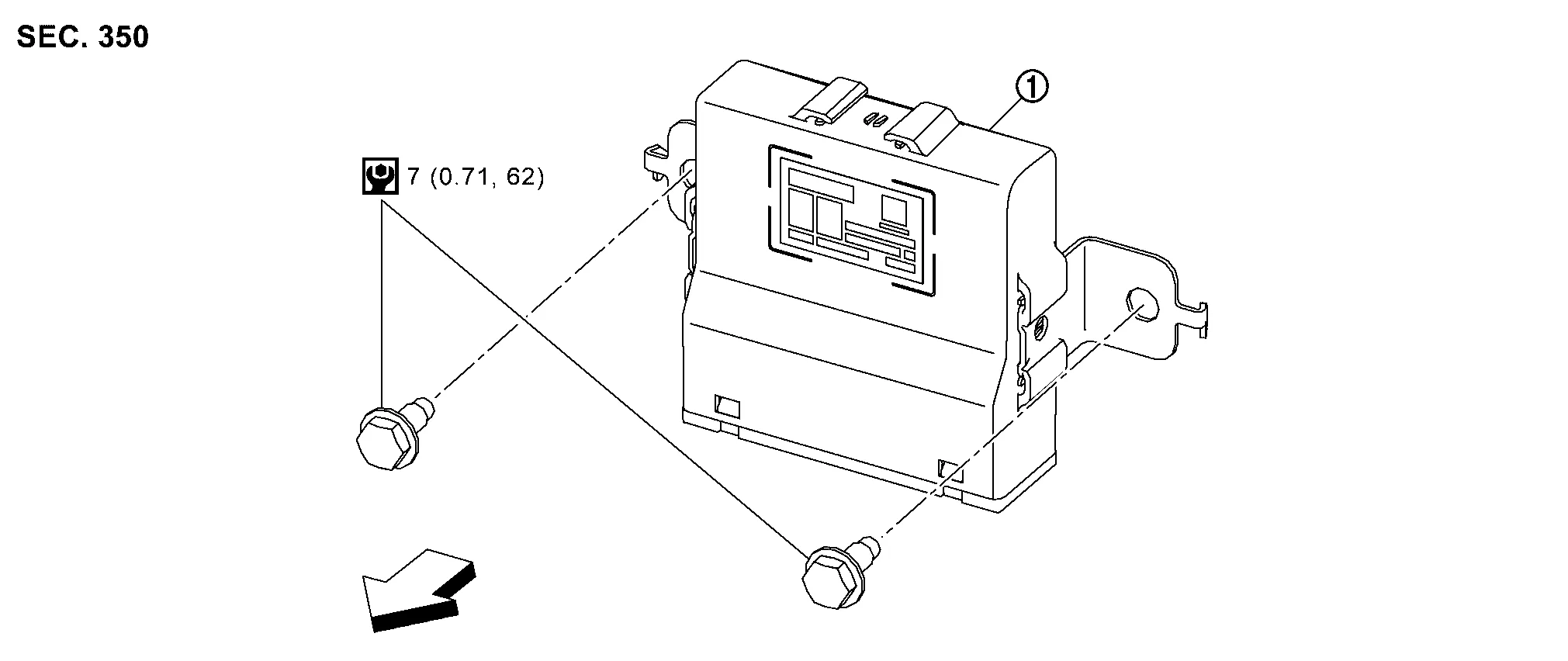

Exploded View

AWD control unit

Front

Removal and Installation

REMOVAL

Remove back door kicking plate. Refer to Removal and Installation - Rear Kicking Plate.

Disconnect harness connector from the AWD control unit (1).

Remove AWD control unit bolts (A).

: Front

Remove AWD control unit (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not drop or shock AWD control unit.

When replacing AWD control unit, perform "ADDITIONAL SERVICE WHEN REPLACING AWD CONTROL UNIT". Refer to Description.
