Nissan Murano: Automatic Drive Positioner :: Removal and Installation / Adp Steering Switch

Nissan Murano (Z52) 2015-2024 Service Manual / Body Interior / Automatic Drive Positioner :: Removal and Installation / Adp Steering Switch

Removal and Installation

REMOVAL

Remove steering column covers. Refer to Removal and Installation.

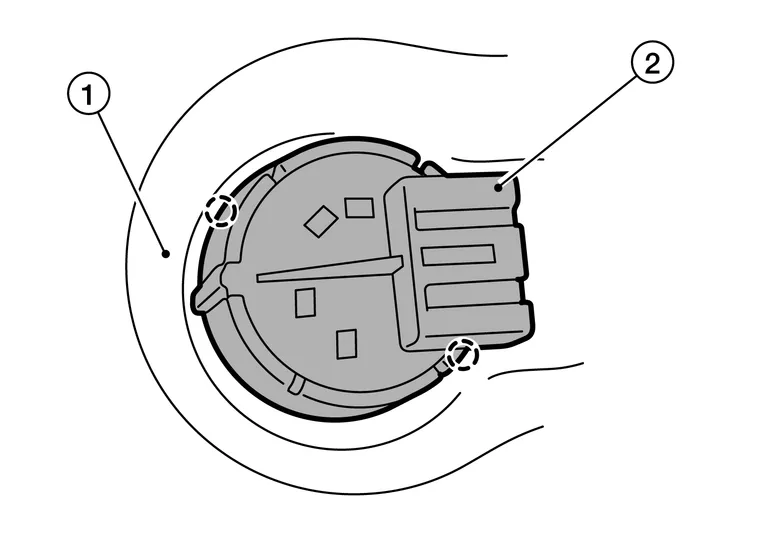

Release the pawls and remove ADP steering switch (2) from the steering column lower cover (1).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.
