Nissan Murano: Head restraints/headrests / Adjust
For adjustable head restraint/headrest

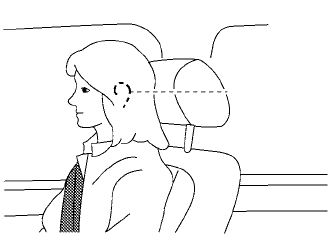

Adjust the head restraint/headrest so the
center is level with the center of your ears. If
your ear position is still higher than the
recommended alignment, place the head
restraint/headrest at the highest position.

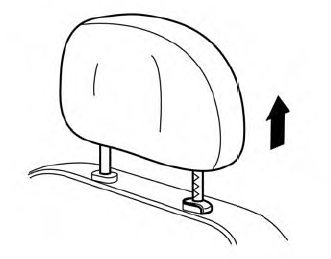

Raise
To raise the head restraint/headrest, pull it
up.

Make sure the head restraint/headrest is
positioned so the lock knob is engaged in
the notch before riding in that designated
seating position.

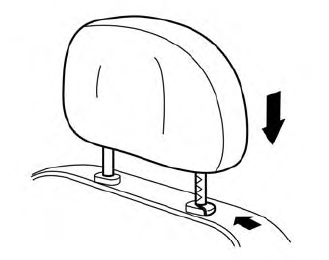

Lower
To lower, push and hold the lock knob and
push the head restraint/headrest down.

Make sure the head restraint/headrest is
positioned so the lock knob is engaged in
the notch before riding in that designated
seating position.
Remove
Use the following procedure to remove the
head restraint/headrest:
Pull the head restraint/headrest up to
the highest position.
Push and hold the lock knob...
