Work Flow

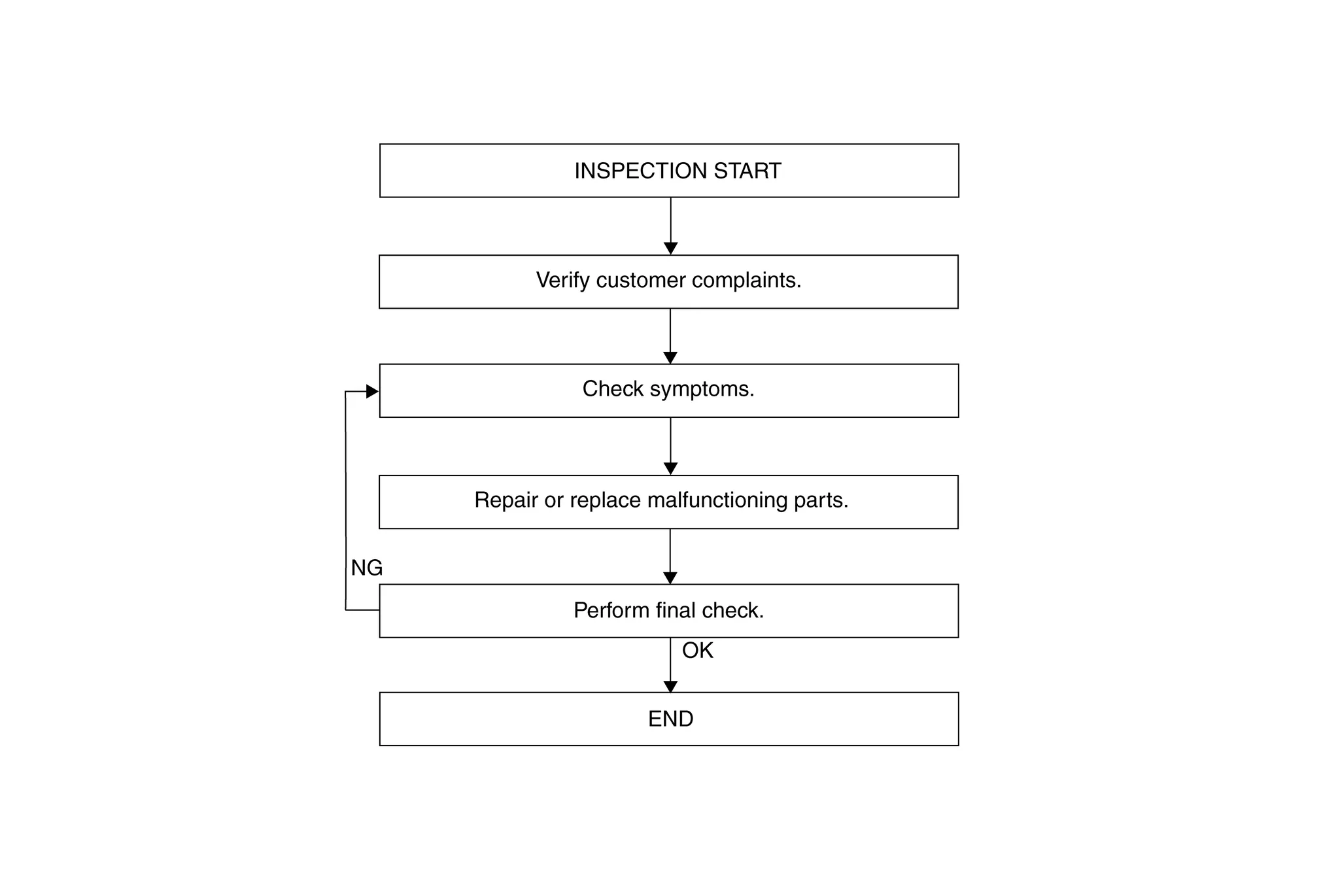

OVERALL SEQUENCE

DETAILED FLOW

INSPECTION START

Review customer complaint. Try to obtain detailed information about the conditions when the symptom occurs.

GO TO 2.

VERIFY CUSTOMER COMPLAINTS

Verify the symptom by performing an operational check. Refer to System Description.

GO TO 3.

CHECK SYMPTOMS

Diagnose the Nissan Murano vehicle by performing the appropriate trouble diagnosis. Refer to Symptom Table.

GO TO 4.

REPAIR OR REPLACE MALFUNCTIONING PARTS

Repair or replace the specific parts.

GO TO 5.

PERFORM FINAL CHECK

Perform a final inspection of the system.

Is the inspection result normal?

YES>>

Inspection End.

NO>>

GO TO 3.
