Nissan Murano: Removal and Installation / Push-Button Ignition Switch

Nissan Murano (Z52) 2015-2024 Service Manual / Electrical & Power Control / Power Control System :: Power Distribution System / Removal and Installation / Push-Button Ignition Switch

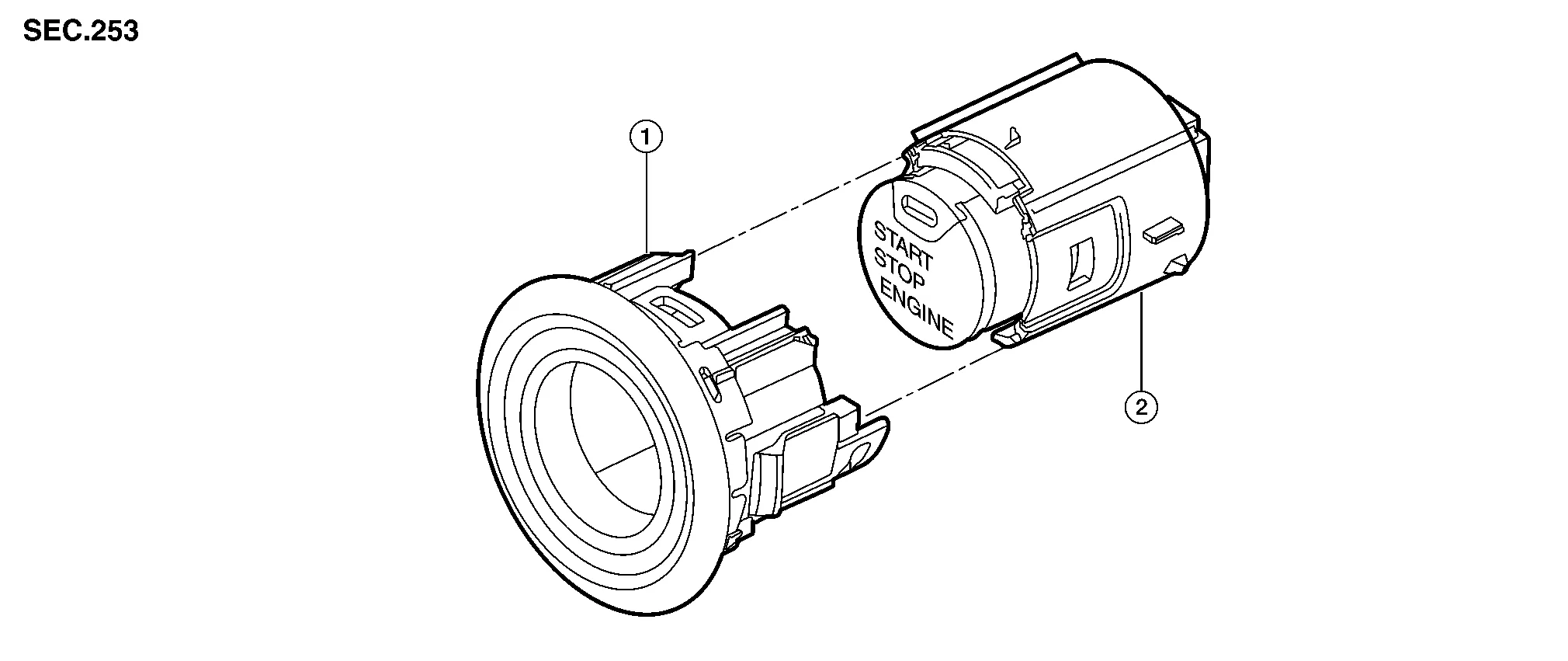

Exploded View

NATS antenna amp.

Push-button ignition switch

Removal and Installation

REMOVAL

Remove the shift selector finisher. Refer to Exploded View.

Release the pawl on each side of the push-button ignition switch (1) and remove from the shift selector finisher (2).

: Pawl

Release the pawl on each side and remove the push-button ignition switch from the NATS antenna amp.

INSTALLATION

Installation is in the reverse order of removal.
