Nissan Murano: Brake Control System :: Vdc/tcs/abs / Preparation. Preparation

Nissan Murano (Z52) 2015-2024 Service Manual / Brakes / Brake Control System :: Vdc/tcs/abs / Preparation. Preparation

Special Service Tool

The actual shape of the tools may differ from those illustrated here.

Tool number

(TechMate No.)

Tool name
  Description

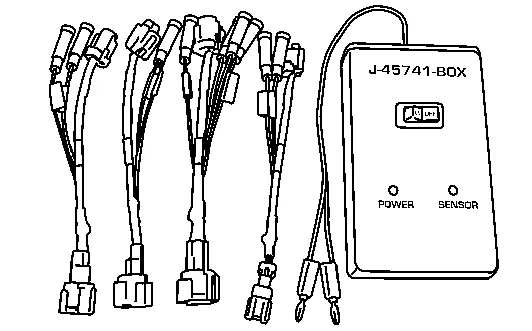

KV991J0080   

(J-45741)

ABS active wheel sensor tester

Checking operation of ABS active wheel sensors

  —

(J-46534)

Trim Tool Set

Removing trim components
Commercial Service Tools
Tool name Description

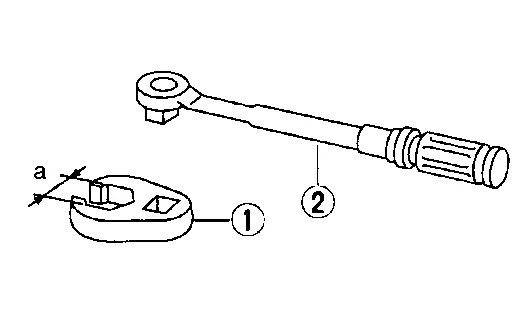

1. Flare nut crowfoot

2. Torque wrench

Tightening brake tube flare nuts

a: 10 mm (0.39 in)/12 mm (0.47 in)
Power tool

Loosening nuts, screws and bolts
