Nissan Murano: Lan System :: Can Gateway / Ecu Diagnosis Information. 3ch Can Gateway

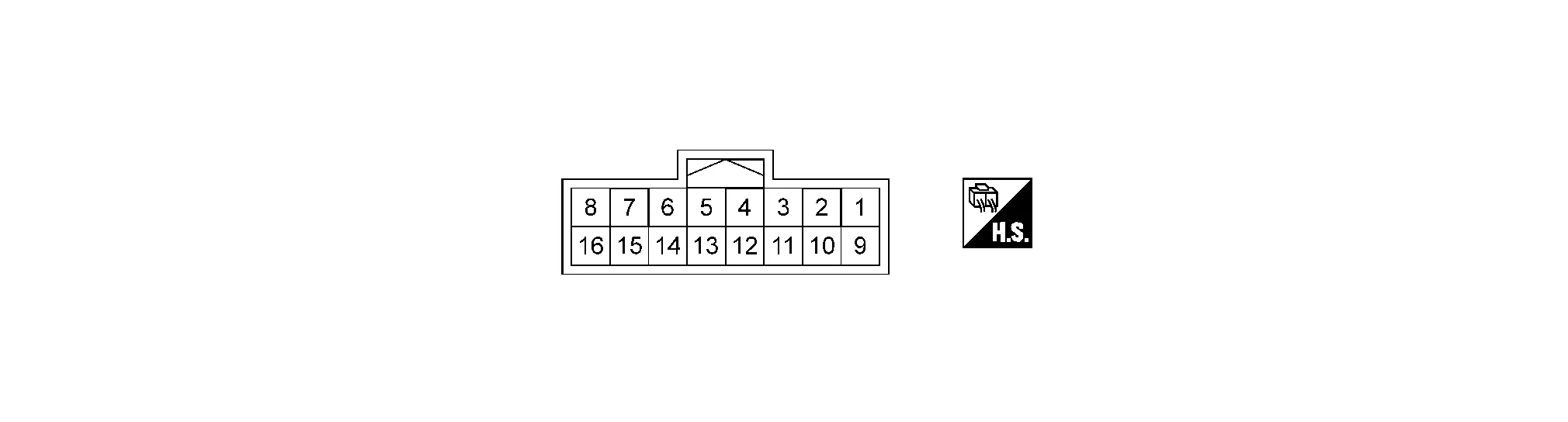

TERMINAL LAYOUT
PHYSICAL VALUES
|
Terminal No. (Wire color) | Description | Condition | Standard | Reference value | |||
|---|---|---|---|---|---|---|---|
| + | – | Signal name | Input/ Output | ||||
|
1 (L) |
— | Nissan Murano Vehicle CAN communication-H | Input/ Output | — | — | — | |
|
2 (P) |
— | Nissan Murano Vehicle CAN communication-L | Input/ Output | — | — | — | |
|
3 (L) |
— | Diagnostic CAN communication-H | Input/ Output | — | — | — | |
|
4 (P) |
— | Diagnostic CAN communication-L | Input/ Output | — | — | — | |
|
5 (BG) |
6 (B) 7 (B) |
Ignition power supply | Input | Ignition switch ON | 7 – 16 V | Battery voltage | |
|
8 (BG) |
6 (B) 7 (B) |
Battery power supply | Input | Ignition switch OFF | 6 – 16 V | Battery voltage | |
|
9 (L) |
— | IT CAN communication-H | — | — | — | — | |
|
10 (P) |
— | IT CAN communication-L | — | — | — | — | |
|
11 (L) |
— | Diagnostic CAN communication-H | Input/ Output | — | — | — | |
|
12 (P) |
— | Diagnostic CAN communication-L | Input/ Output | — | — | — | |
|
13 (L) |
— | IT CAN communication-H | — | — | — | — | |
|
14 (P) |
— | IT CAN communication-L | — | — | — | — | |
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority chart.
| Priority | DTC |
|---|---|
| 1 |
|
| 2 | U1000-01: CAN COMM CIRCUIT [ELECTRICAL MALFUNCTION] |
| DTC | CONSULT display | Reference | |
|---|---|---|---|
| — |
No DTC is detected. Further testing may be required. |
— | |
| U1000-01 | CAN COMM CIRCUIT | [ELECTRICAL MALFUNCTION] | DTC Description |
| U1010-49 | CONTROL UNIT(CAN) | [INTERNAL ELECTRONIC ERROR] | DTC Description |
| U1321-55 | CONFIG ERROR | [NOT CONFIGURED] | DTC Description |
| B2600-46 | CONFIG ERROR | [CALIB/PRMTER MEMORY ERROR] | DTC Description |
Diagnosis System (3ch Can Gate Way)
CONSULT Function
APPLICATION ITEMCONSULT performs the following functions via CAN communication with 3CH CAN gateway. Diagnosis mode Function Description
Self Diagnostic Result
Displays the diagnosis results judged by 3CH CAN gateway...
