Nissan Murano: Starting System :: System Description / Component Parts. Starting System

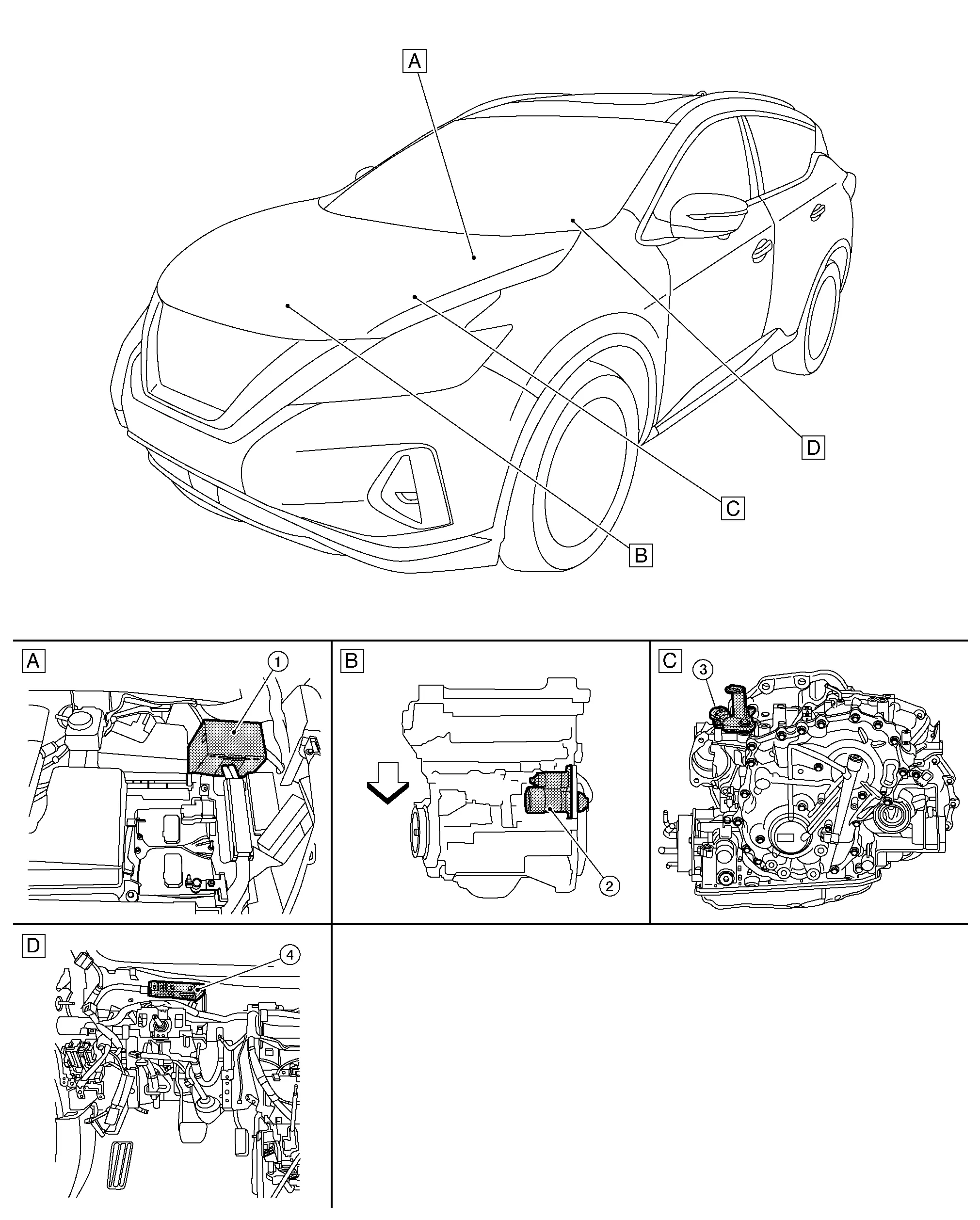

: Vehicle front
| A. | Engine room left side | B. |
Engine room center (view with engine removed) |
C. |
Engine room left side (view with transmission removed) |
| D. |
BCM (view with instrument panel removed) |
||||
| No. | Component | Function |
|---|---|---|
| 1. | IPDM E/R (Intelligent Power Distribution Module Engine Room) |
CPU inside IPDM E/R operates the starter control relay when the ignition switch is in the start position. Refer to System Description. |
| 2. | Starter motor | Refer to Starter Motor. |
| 3. | Transmission range switch |
Transmission range switch supplies power to the starter relay and starter control relay inside IPDM E/R when the selector lever is shifted to the P or N position. Refer to Component Parts Location for detailed component location. |
| 4. | BCM (Body Control Module) |
BCM controls the starter relay inside IPDM E/R. Refer to System Description. |
-

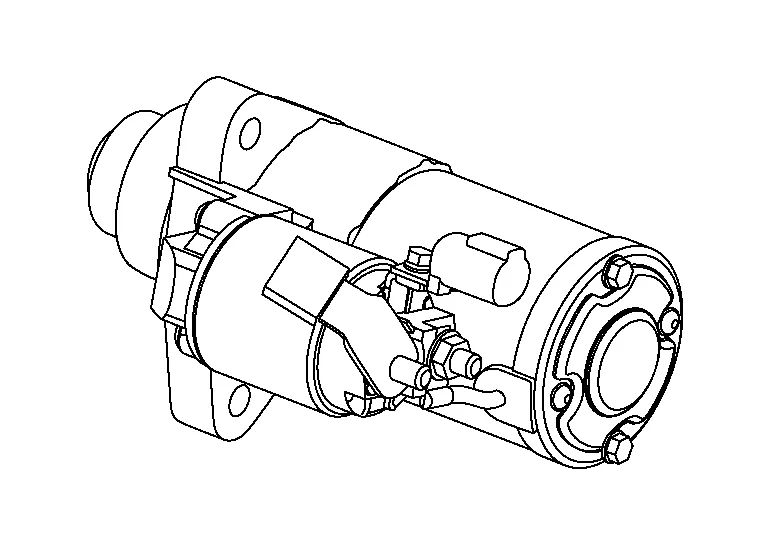

Located toward the near of the engine, just before the transmission.
-
The starter motor plunger closes and the motor is supplied with battery power, which in turn cranks the engine, when the “S” terminal is supplied with electric power.
-
“B” terminal: The “B” terminal is constantly supplied with battery power.
-
“S” terminal: The starter motor magnetic switch (“S” terminal) is supplied with power when the cranking condition is satisfied.
Starting System
System Diagram
System Description
The starter motor plunger closes and provides a closed circuit between the battery and the starter motor. The starter motor is grounded to the cylinder block...
