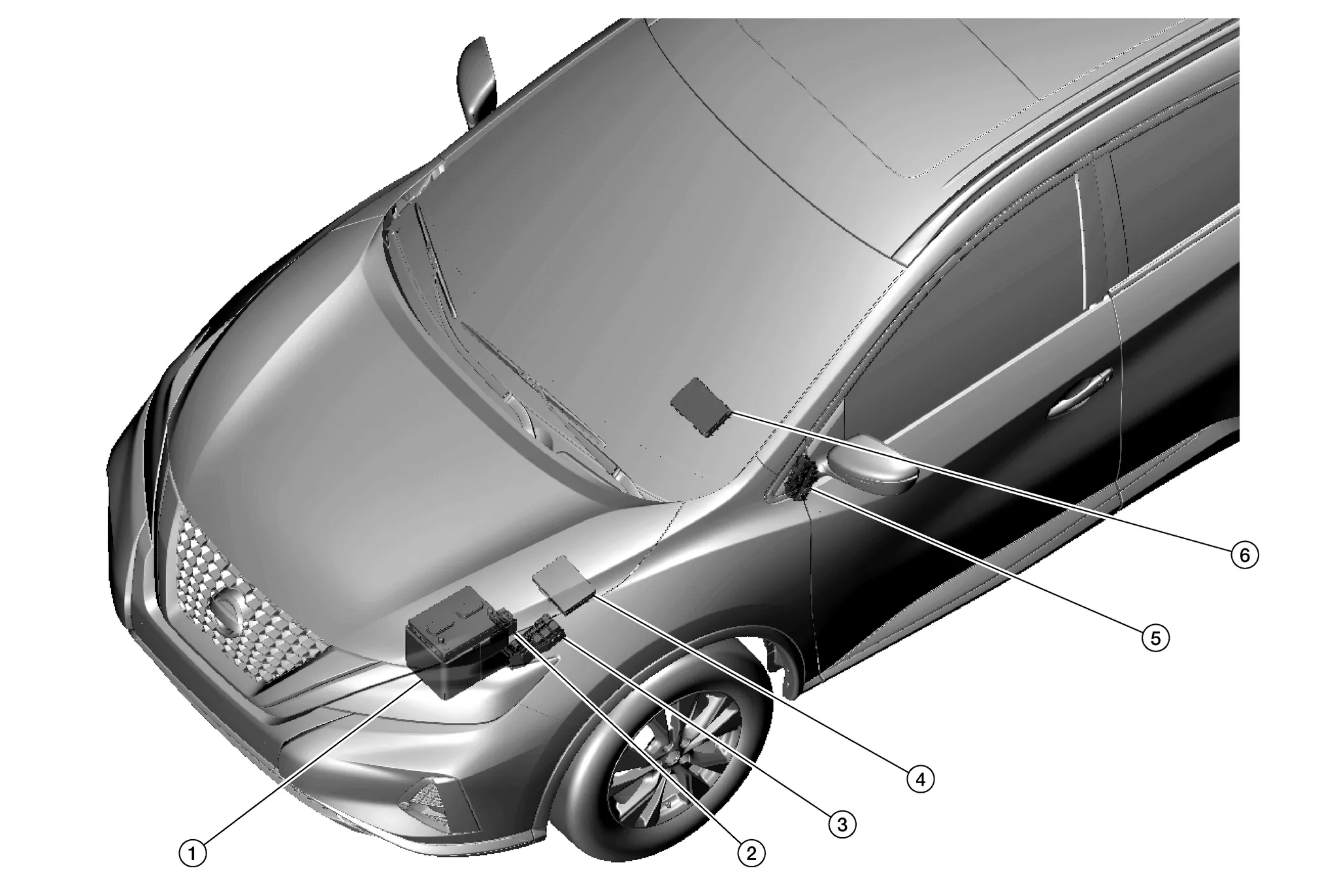

Nissan Murano: Power Supply, Ground & Circuit Elements :: System Description / Component Parts. Electrical Units Location

Power Supply, Ground & Circuit Elements :: System Description

..

System. Power Supply, Ground & Circuit Elements

Circuit Breaker (Built Into BCM) For example, when current is 30A, the circuit is broken within 8 to 20 seconds.This circuit breaker is used for the following systems: Power windows Power moonroof Power seat Power lumbar Power sunshade Circuit Breaker (External to BCM) The PTC thermistor generates heat in response to current flow...
