Nissan Murano: Brakes / Brake System :: Preparation. Preparation

Nissan Murano (Z52) 2015-2024 Service Manual / Brakes / Brake System :: Preparation. Preparation

Special Service Tool

The actual shape of the tools may differ from those illustrated here.

Tool number

(TechMate No.)

Tool name
Description

 — 

(J-46532)

Brake height tool

Measuring brake pedal height

38-PFM92

( — )

ProCut™ PFM Series Lathe

Refinishing rotors
Commercial Service Tool
Tool name Description

1. Flare nut crowfoot

2. Torque wrench

Tightening brake tube flare nuts

a: 10 mm (0.39 in)/12 mm (0.47 in)
Power tool

Loosening nuts, screws and bolts

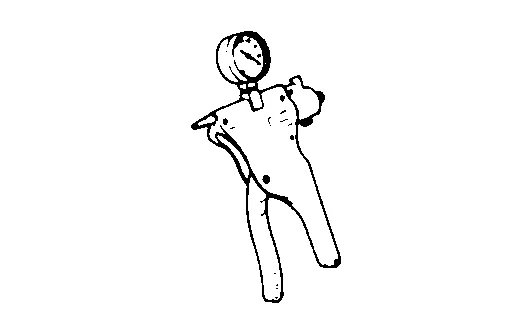

Vacuum pump

  • Air tight

  • Inspection of check valve
