Nissan Murano: Engine Control System :: Vq35de / Preparation. Preparation

Nissan Murano (Z52) 2015-2024 Service Manual / Engine / Engine Control System :: Vq35de / Preparation. Preparation

Special Service Tools

The actual shape of the tools may differ from those illustrated here.

Tool number (TechMate No.) Tool name		Description

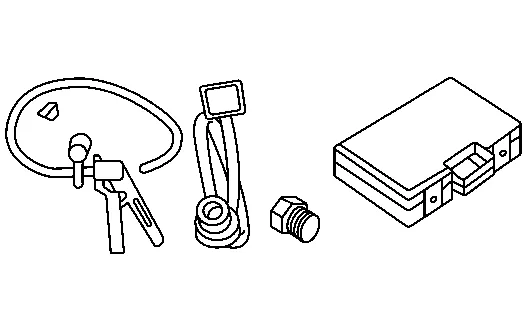

— (J-44321) Fuel pressure gauge kit		Checks fuel pressure

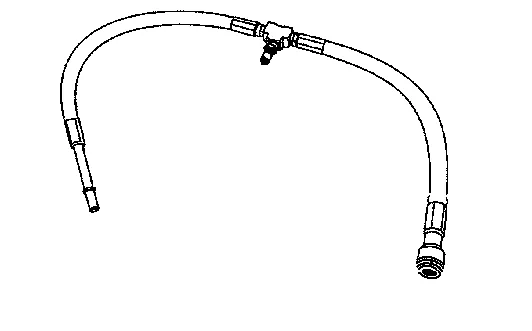

— (J-44321-6) Fuel pressure adapter		Connects fuel pressure gauge to quick connector type fuel lines

Tool number

(TechMate No.)

Tool name

Description

—

(J-44321)

Fuel pressure gauge kit

Checks fuel pressure

—

(J-44321-6)

Fuel pressure adapter

Connects fuel pressure gauge to quick connector type fuel lines

Commercial Service Tools

Tool name (TechMate No.)		Description

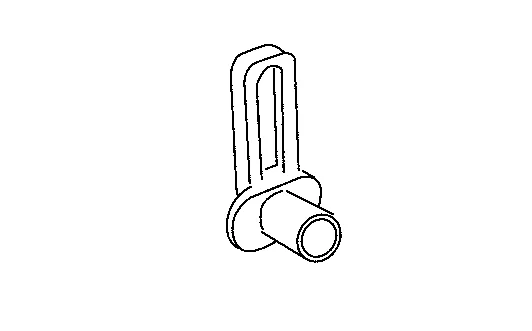

Quick connector release (J-45488)		Removes fuel tube quick connectors in engine room

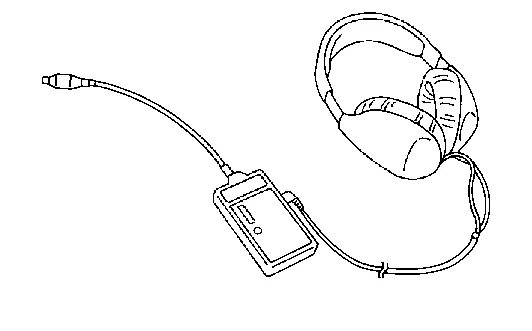

Leak detector i.e.: (J-41416)		Locates the EVAP leakage
EVAP service port adapter i.e.: (J-41413-OBD)		Applies positive pressure through EVAP service port
Fuel filler cap adapter i.e.: (J-42909)		Checks fuel tank vacuum relief valve opening pressure

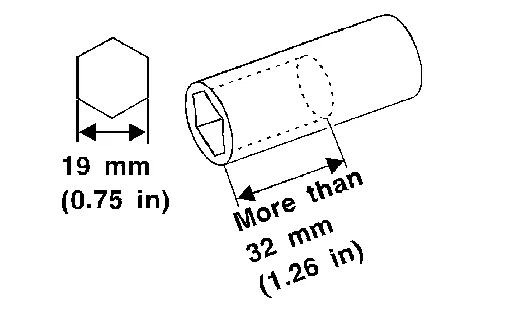

Socket wrench ( — )		Removes and installs engine coolant temperature sensor. Refer to Exploded View.

Precaution. Precautions

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions...
