Steering Wheel

Steering wheel axial end play 0 mm (0 in)
Steering wheel play 0 - 35 mm (0 - 1.38 in)
Steering wheel turning force 39 N (4 kg-f, 9 lb-f) or less
Steering Angle

Unit: Degree minute (Decimal degree)
Inner wheel angle (A) Minimum 34° 30′ (34.50°)
Nominal 37° 30′ (37.50°)
Maximum 38° 30′ (38.50°)
Outer wheel angle (B) Nominal 32° 30′ (32.50°)
Steering Column

STEERING COLUMN LENGTH

Unit: mm (in)


Steering column length Length (L) 467 (18.4)
Telescopic maximum 487 (19.2)
Telescopic minimum 447 (17.2)

STEERING COLUMN ROTATING TORQUE

Unit: N·m (kg-m, in-lb)

Rotating torque 0.67 (0.07, 6)

TILT MECHANISM OPERATING RANGE

Unit: mm (in)


Tilt operating range (L1) 50 (2.0)
Telescopic operating range (L2) 40 (1.6)
Steering Gear

STEERING OUTER SOCKET AND INNER SOCKET

Outer socket Swinging torque 0.3 - 2.9 N·m (0.03 - 0.30 kg-m, 3 - 26 in-lb)
Rotating torque 0.3 - 2.9 N·m (0.03 - 0.30 kg-m, 3 - 26 in-lb)
Axial end play 0.5 mm (0.020 in) or less
Inner socket Swinging torque 0.1 - 7.8 N·m (0.01 - 0.80 kg-m, 1 - 69 in-lb)
Axial end play 0.2 mm (0.008 in) or less

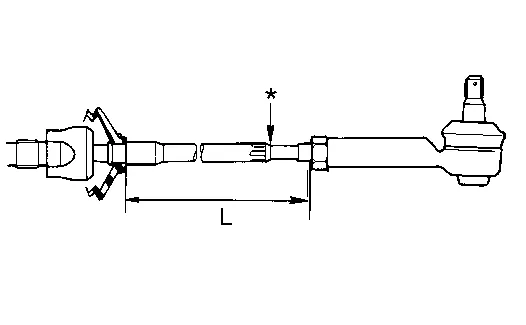

Inner socket length (L) 112.7 ± 1 mm (4.44 ± 0.04 in)




RACK STROKE

Unit: mm (in)


Rack stroke in neutral position (L) 72 (2.83)

RACK SLIDING FORCE

Unit: N-f (kg-f, lb-f)

Rack sliding force 290 - 370 (29.6 - 37.7, 65.2 - 83.2)
Power Steering Oil Pump

Unit: kPa (kg/cm², psi)

Relief oil pressure 9,700 -10,300 (98.94 - 105.06, 1,406.5 - 1,493.5)
Power Steering Fluid
Fluid type E-PSF
Fluid capacity 1.0 (1-1/8 US qt, 7/8 Imp qt)
