Nissan Murano: Power Control System :: Ipdm E/r / Removal and Installation. Ipdm E/r (intelligent Power Distribution Module Engine Room)

Nissan Murano (Z52) 2015-2024 Service Manual / Electrical & Power Control / Power Control System :: Ipdm E/r / Removal and Installation. Ipdm E/r (intelligent Power Distribution Module Engine Room)

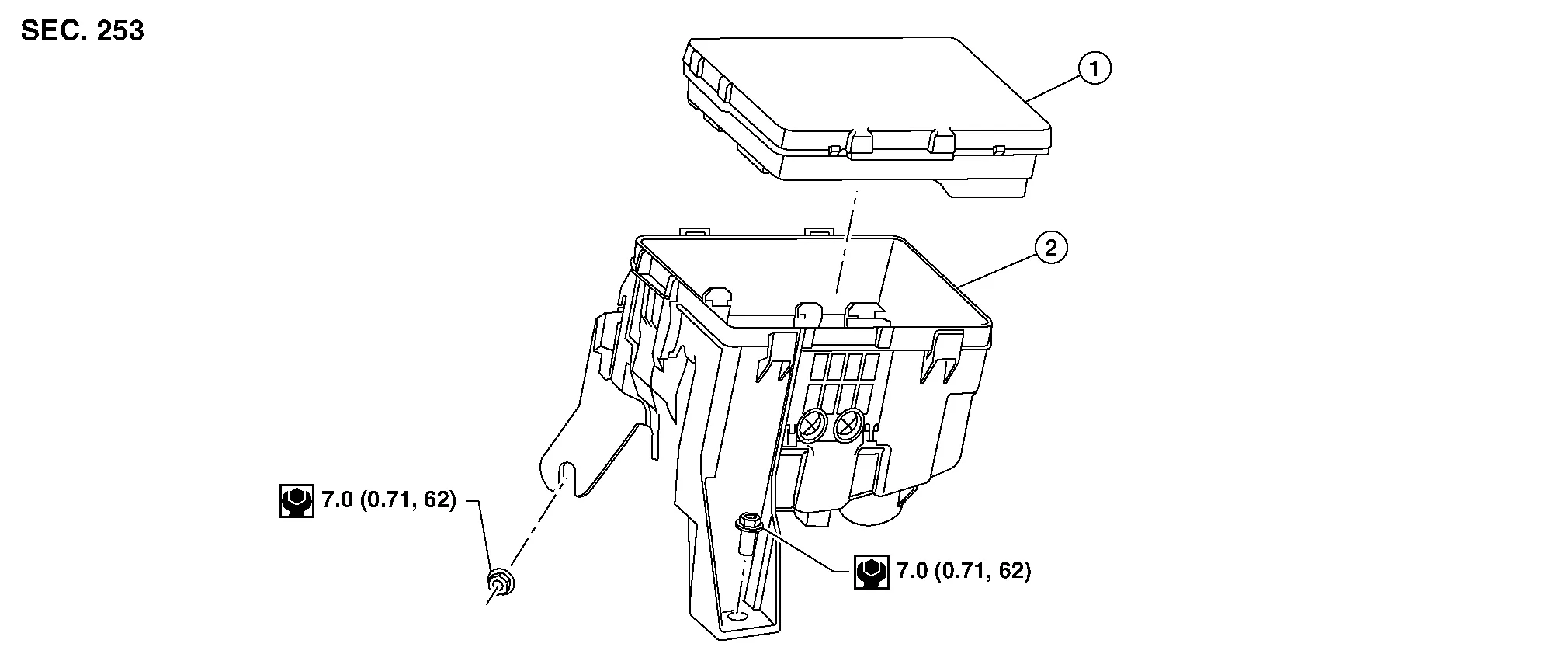

Exploded View

IPDM E/R

IPDM E/R Case

Removal and Installation

CAUTION:

IPDM E/R integrated relays are not serviceable parts, and must not be removed from the unit.

Do not use a unit which has been dropped.

REMOVAL

Disconnect the negative battery terminal. Refer to Removal and Installation.

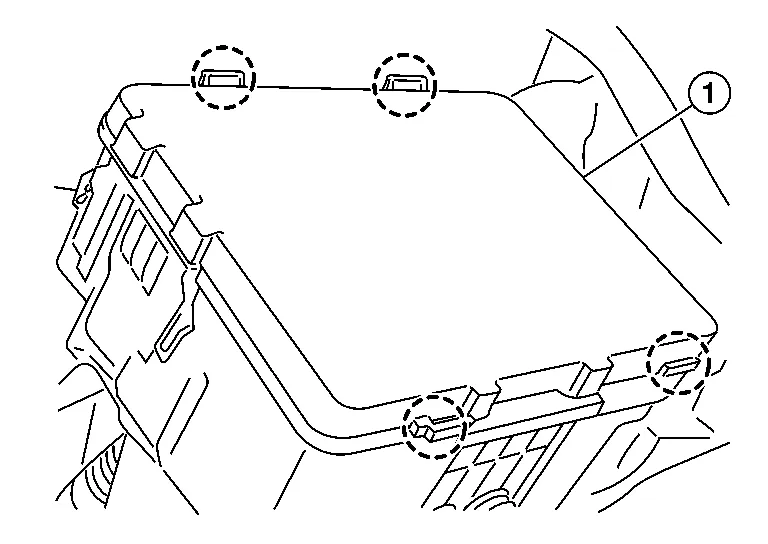

Release the pawls and separate the IPDM E/R (1) from the case.

: Pawl

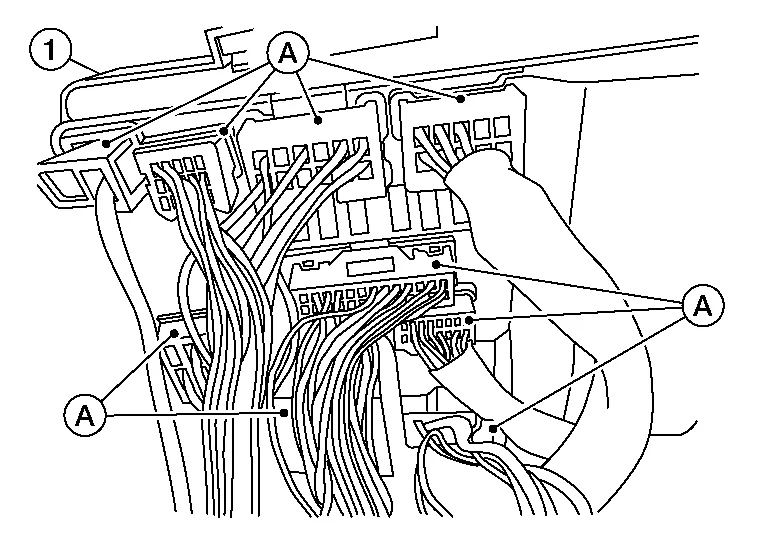

Disconnect all harness connectors (A) from the IPDM E/R (1).

INSTALLATION

Installation is in the reverse order of removal.
