Nissan Murano: Door & Lock :: Removal and Installation / Motion Activated Back Door System. Motion Activated Back Door Control Unit

Nissan Murano (Z52) 2015-2024 Service Manual / Body Exterior, Doors, Roof & Vehicle Security / Door & Lock :: Removal and Installation / Motion Activated Back Door System. Motion Activated Back Door Control Unit

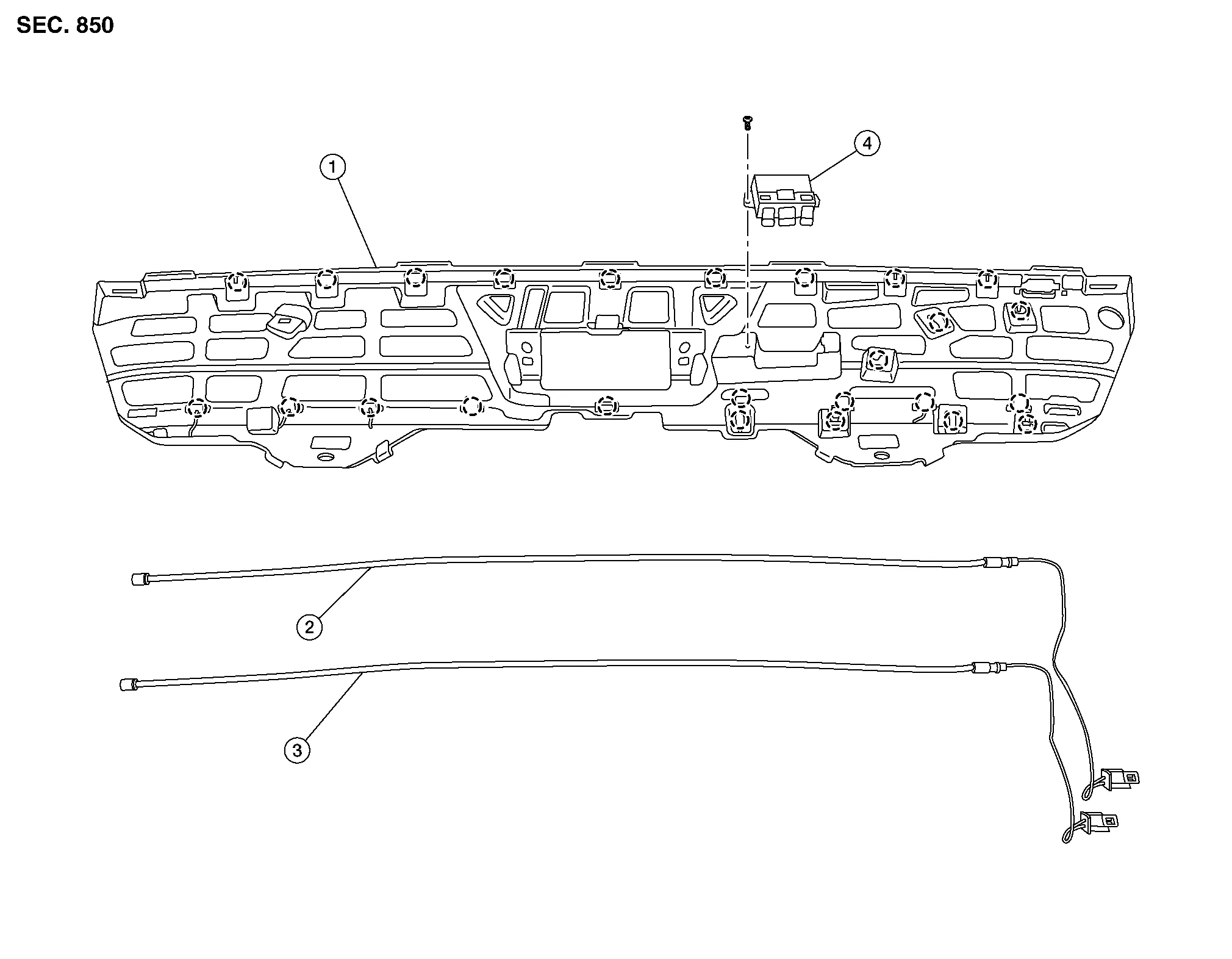

Exploded View

1.	Motion activated back door bracket	2.	Motion activated back door sensor (upper)	3.	Motion activated back door sensor (lower)
4.	Motion activated back door control unit		Pawl

Removal and Installation

REMOVAL

Remove rear bumper fascia. Refer to Removal and Installation.

Disconnect harness connectors from motion activated back door control unit.

Remove bolt and motion activated back door control unit.

INSTALLATION

Installation is in the reverse order of removal.

Intelligent Key Battery

Removal and Installation Release lock knob on back of Intelligent Key and remove key. Insert a suitable tool (A) wrapped with a cloth into slit of corner and twist it to separate upper part from lower part...

Automatic Back Door Control Module

Removal and Installation CAUTION: Replace the automatic back door control module if it has been dropped or sustained an impact. REMOVALRemove luggage side lower finisher (LH)...
