Nissan Murano: Driver Information & Multimedia / Meter, Warning Lamp & Indicator :: Basic Inspection. Diagnosis and Repair Work Flow

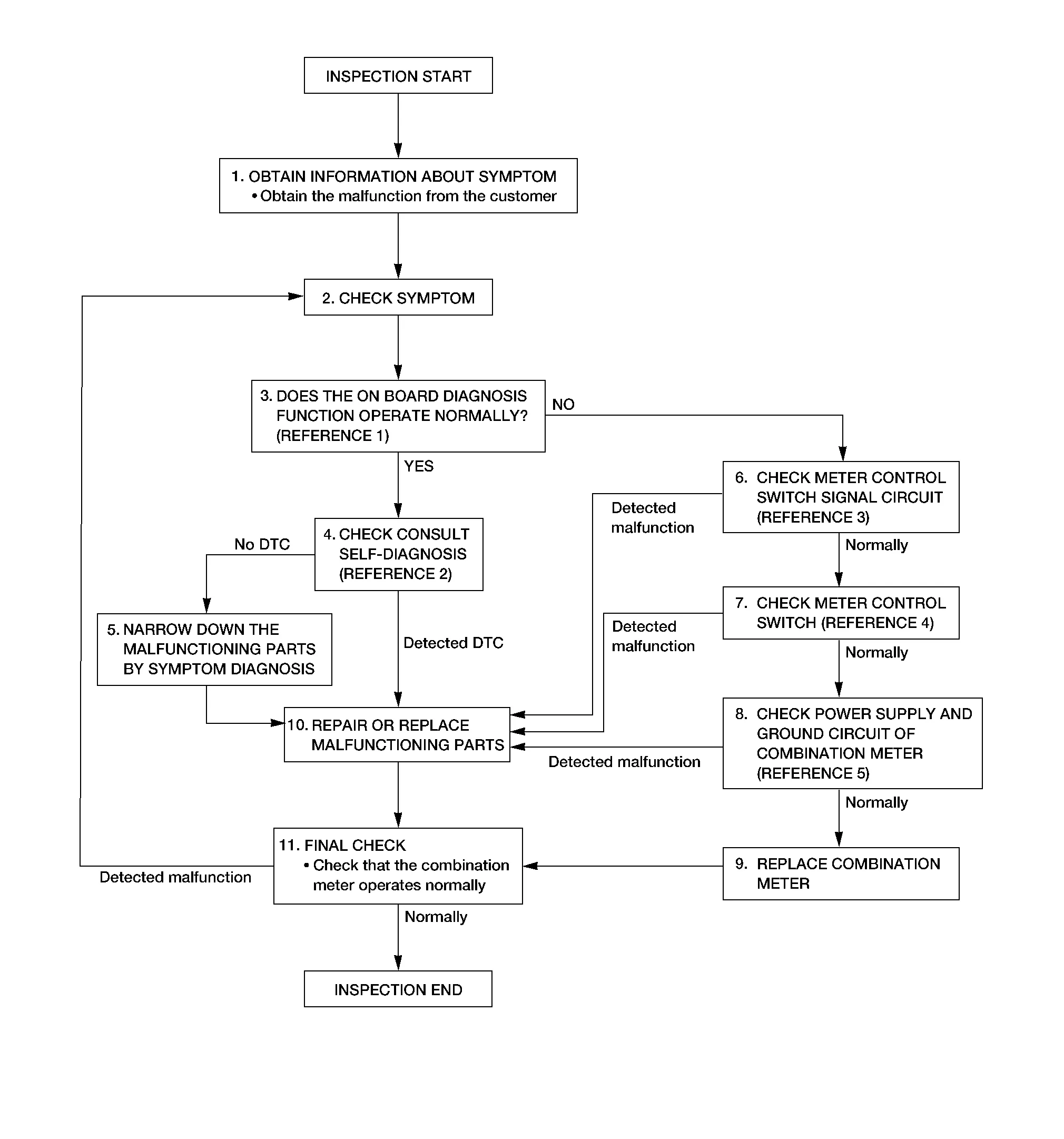

OVERALL SEQUENCE
-
Reference 1: On Board Diagnosis Function.
-
Reference 2: DTC Index.
-
Reference 3: Diagnosis Procedure.
-
Reference 4: Component Inspection.
-
Reference 5: Diagnosis Procedure.
DETAILED FLOW
OBTAIN INFORMATION ABOUT SYMPTOM
Interview the customer to obtain as much information as possible about the conditions and environment under which the malfunction occurred.
>>
GO TO 2.
CHECK SYMPTOM
-
Check the symptom based on the information obtained from the customer.
-
Check if any other malfunctions are present.
>>
GO TO 3.
CHECK ON BOARD DIAGNOSIS OPERATION
Check that the on board diagnosis function operates. Refer to On Board Diagnosis Function.
Is the inspection result normal?
YES>>GO TO 4.
NO>>GO TO 6.
CHECK CONSULT SELF DIAGNOSTIC RESULT
CONSULT
-
Select "Self Diagnostic Result" mode of “METER/M&A”. Refer to DTC Index.
-
When DTC is detected, follow the instructions below:
-
Record DTC and Freeze Frame Data.
-
Is the inspection result normal?
YES>>GO TO 5.
NO>>GO TO 10.
NARROW DOWN THE MALFUNCTIONING PARTS BY SYMPTOM DIAGNOSIS
Perform symptom diagnosis and narrow down the malfunctioning parts.
>>
GO TO 10.
CHECK METER CONTROL SWITCH SIGNAL CIRCUIT
Check meter control switch signal circuit. Refer to Diagnosis Procedure.
Is the inspection result normal?
YES>>GO TO 7.
NO>>GO TO 10.
CHECK METER CONTROL SWITCH
Check meter control switch. Refer to Component Inspection.
Is the inspection result normal?
YES>>GO TO 8.
NO>>GO TO 10.
CHECK COMBINATION METER POWER SUPPLY AND GROUND CIRCUITS
Check combination meter power supply and ground circuits. Refer to Diagnosis Procedure.
Is the inspection result normal?
YES>>GO TO 9.
NO>>GO TO 10.
REPLACE COMBINATION METER
Replace combination meter.
>>
GO TO 11.
REPAIR OR REPLACE MALFUNCTIONING PARTS
Repair or replace the malfunctioning parts.
NOTE:
If DTC is displayed, erase DTC after repairing or replacing malfunctioning parts.
>>
GO TO 11.
FINAL CHECK
Check that the combination meter operates normally.
Is the inspection result normal?
YES>>Inspection End.
NO>>GO TO 2.
